OM-1606

5-1

5. Component Pick-up Position Alignment

0908-001

5. Component Pick-up Position Alignment

To pick up a component correctly, the component center is aligned with the pick-

up position.

The component center set position is marked on the suppressor.

Also, the pick-up position varies with the pitch of the feed.

Notice

If the component center is not aligned with the pick-up position, then the

pick-up cannot proceed correctly.

Reference

Refer to "4.2.4 Minimum Pitch Feed Operation" for the tape feeding operation.

Suppressor

FE1

OM-1606

5-2

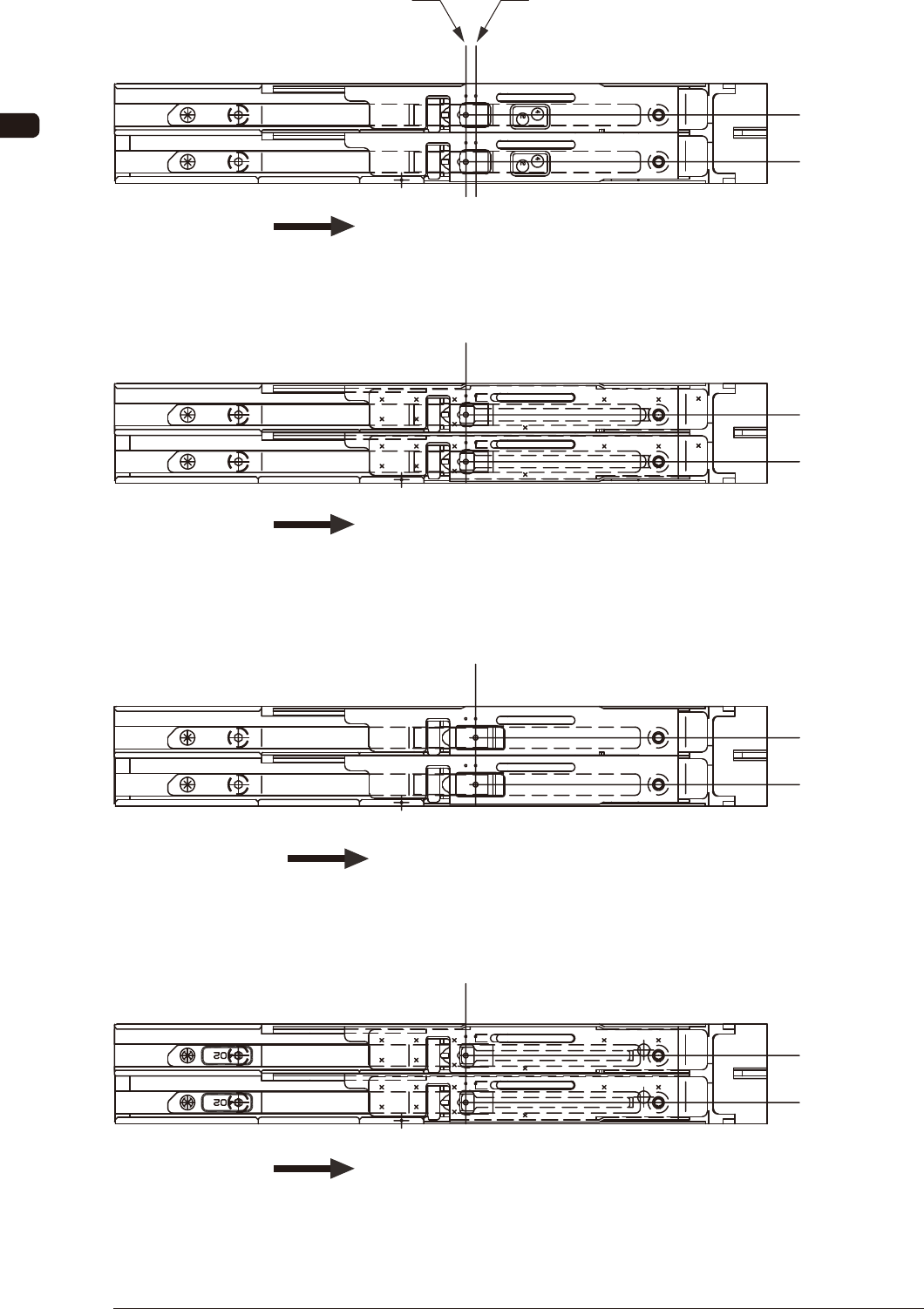

5. Component Pick-up Position Alignment

Direction of Feed

GD-28081

Direction of Feed

GD-28083

Pick-up Position

Pick-up Position (Only for 2 mm pitch)

Pick-up Position (Only for 8 mm pitch)

Pick-up Position

Pick-up Position (Only for 2 mm pitch)

Pick-up Position

Direction of Feed

GT-28080, GD-28080

Direction of Feed

GT-28082, GD-28082

Pick-up Position at 4 mm pitch

Pick-up Position

Pick-up Position at 2 mm pitch

FE2

0908-001

OM-1606

5-3

5. Component Pick-up Position Alignment

Direction of Feed

GT-24322, GD-24322

Pick-up Position at 12, 16, 20, 24 mm pitch

32 mm Width Tape

Pick-up Position

24 mm Width Tape

Pick-up Position

Pick-up Position at 4, 8 mm pitch

Direction of Feed

GT-44562, GD-44562

Pick-up Position at 12, 16, 20, 24 mm pitch

Pick-up Position at 28, 32, 36, 40 mm pitch

56 mm Width Tape

Pick-up Position

44 mm Width Tape

Pick-up Position

Pick-up Position at 4, 8 mm pitch

Direction of Feed

GT-12162, GD-12162

16 mm Width Tape

Pick-up Position

12 mm Width Tape

Pick-up Position

Pick-up Position at 4 mm pitch Pick-up Position at 8, 12, 16 mm pitch

FE3

0908-001
