10. Electrical Circuit Diagrams

10.7 Feeder Control Circuit Diagram

(GD-24322 / GD-44562 / GD-72002 / GD-88002)

1011-002 -(M804WP---1001)

Drawer Connector

Connection Confirmation Signal

Lane 1 Feed Command

Lane 2 Feed Command

READY Signal

Connection Confirmation Signal

7-Segment LED is turned ON (a)

7-Segment LED is turned ON (b)

7-Segment LED is turned ON (c)

7-Segment LED is turned ON (d)

7-Segment LED is turned ON (e)

7-Segment LED is turned ON (f)

7-Segment LED is turned ON (g)

7-Segment LED is turned ON (D.P)

For Dynamic Light ON (first figure)

For Dynamic Light ON (second figure)

Cover Tape Take-up Key

Lane Selection Key

Forward Key

Backward Key

Motor Phase W

Motor Phase U

Motor Phase V

Encoder Phase A

/Encoder Phase A

Encoder Phase B

Power Supply (DC5V)

/Encoder Phase B

Lane Servo Motor

Reserve

Feeder Control Amplifier

Lane Splicing Detection Sensor

Lane Tension Detection Sensor

DC Motor

DC Motor Power Supply

DC Motor

DC Motor Power Supply

Blue

Black

Blue

Black

Blue

Black

Blue

Black

Blue

Black

Blue

Black

Blue

Black

White

Brown

Blue

White

Brown

Blue

Lane Take-up Motor

Operation Panel

OM-1606

10-8

10. Electrical Circuit Diagrams

0908-001

OM-1606

11-1

11. Troubleshooting

The main troubleshooting during the tape feeder operation is described here.

In the event of trouble, con rm in which section the trouble is caused and set it

right.

11.1 Component Pick-up Error

Remedy

: Align the chip component center with the marks on the suppressor according to "5.

Component Pick-up Position Alignment".

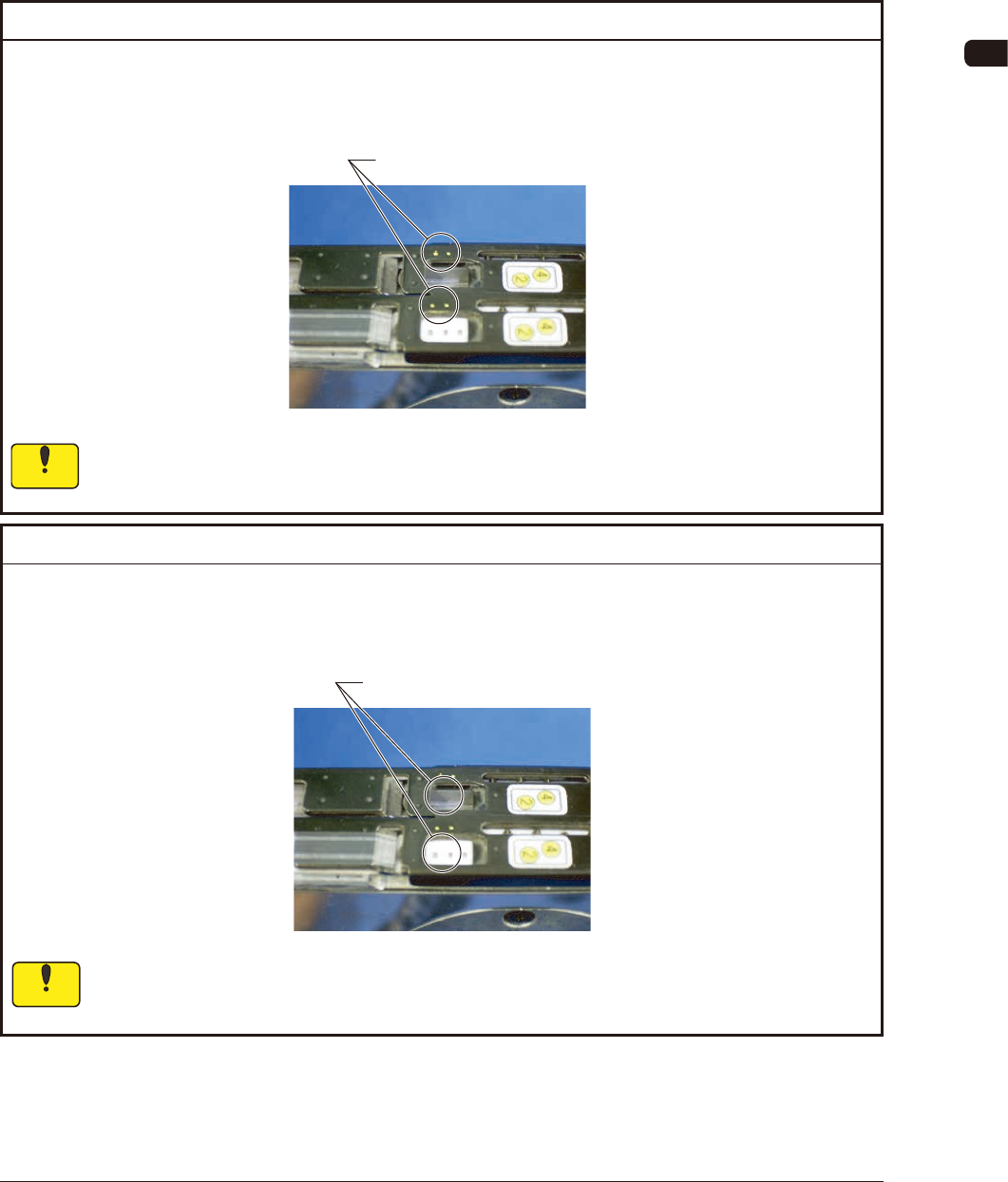

Marks on the Suppressor

If the component center is not aligned with the pick-up position, then the pick-up cannot

proceed correctly.

Cause : Inappropriate pick-up positioning

Notice

Remedy

: Adjust the pick-up position by using the feeder adjusting jig JG-0209

(Purchase separately).

Pick-up Position

If the component center is not aligned with the pick-up position, then the pick-up cannot

proceed correctly.

Cause : Error in Pick-up Position

Notice
