OM-1606 4-2 4. Operation Panel 0908-001 Digital Indicator : Shows the set pitch, selected lane, error code or splicing guide. Lane Selection Button : Used when the lane is selected. Each pressing on this button changes t…

OM-1606

4-1

4. Operation Panel

On the operation panel, the following displays and operations are available.

•

Display of the set pitch

 •

I/O status display for the sensor, etc.

•

Display of the selected lane

 •

Subject Lane Selection

•

Tape Feeding

•

Feed Pitch Setting



•

Display of the error codes

 •

Tape returning operation

•

Display of the splicing guide

•

Cover Tape Take-up Operation

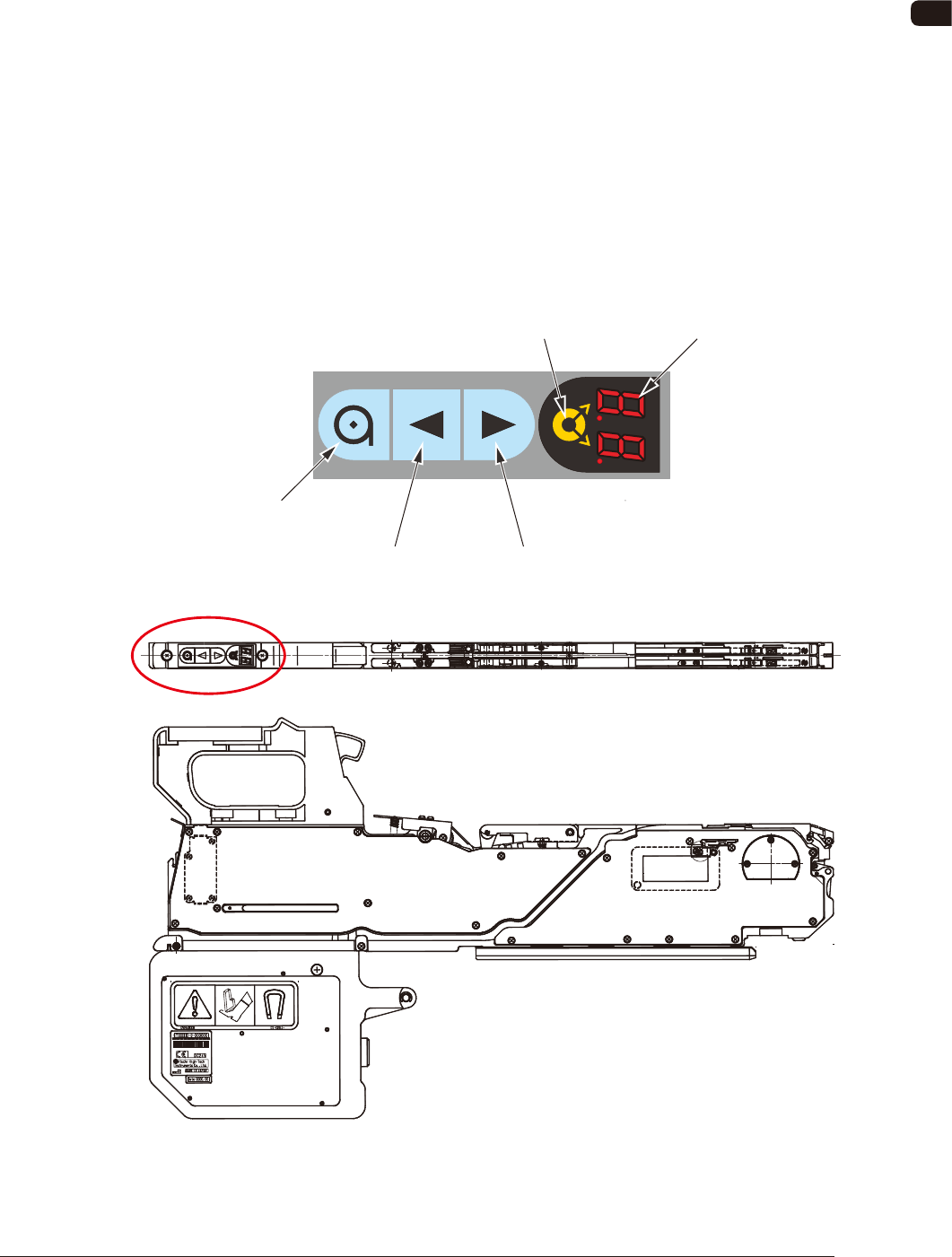

4.1 Name and Function of Each Section on Operation Panel

The tape feeder operation buttons and indicators are arranged integrally on the

operation panel.

Operation Panel

Digital IndicatorLane Selection Button

Forward ButtonBackward Button

Take-up Button

FD1

0908-001

OM-1606

4-2

4. Operation Panel

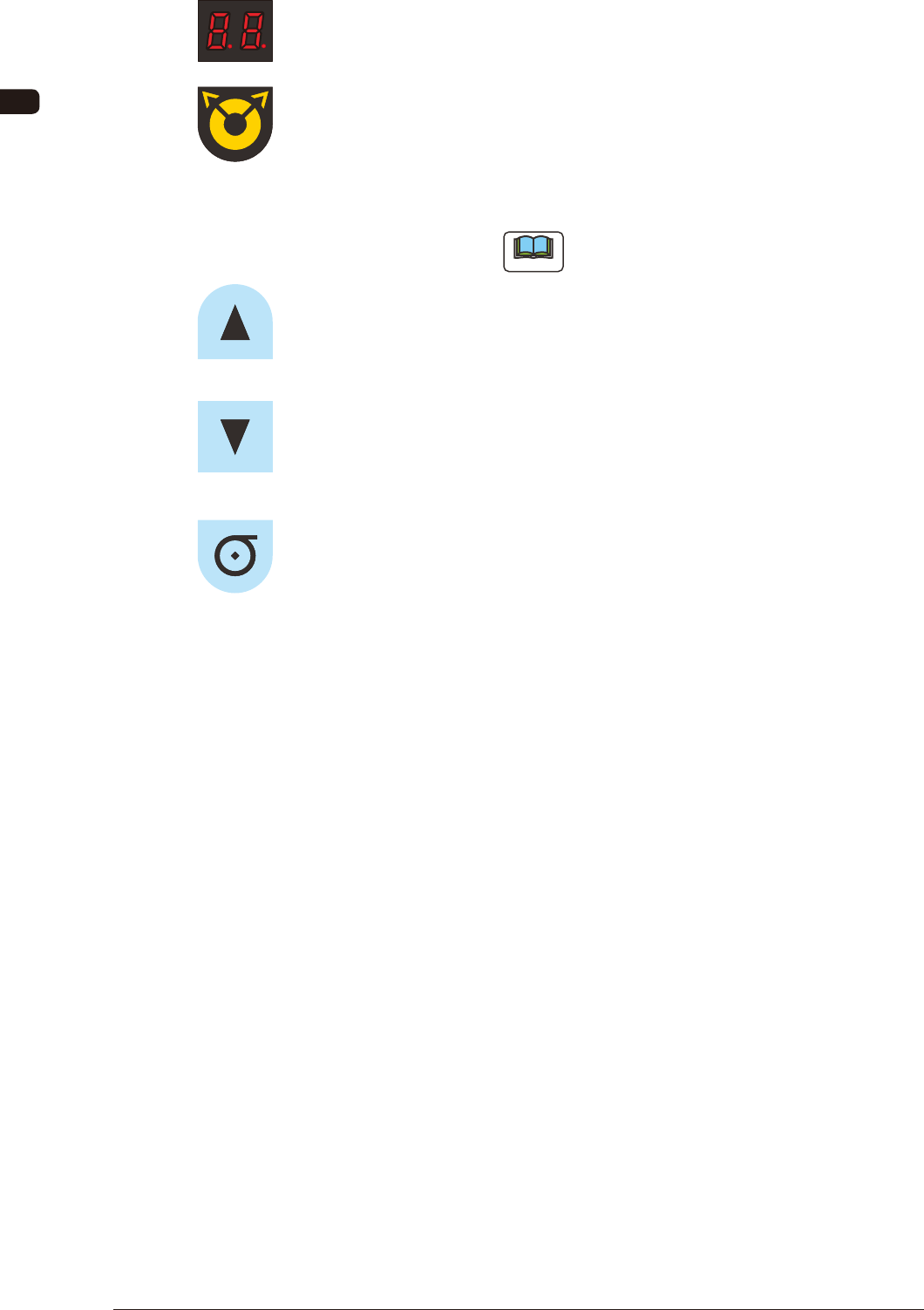

0908-001

Digital Indicator

: Shows the set pitch, selected lane, error code or

splicing guide.

Lane Selection Button

: Used when the lane is selected.

Each pressing on this button changes the lane to the

left or right.

(Only for 8 mm width Tape Feeder)

Note

Use the return button together with it in the

tape returning operation.

Forward Button

: Used for tape feeding operation and feed pitch data

change.

Backward Button

: Used for tape returning operation and feed pitch

data change.

Take-up Button

: Used for taking up cover tape and as control key for

composite operations.

OM-1606

4-3

4. Operation Panel

4.2 Operation of Operation Panel

4.2.1 Subject Lane Selection

Press the button to select the lane.

Each pressing of this button moves the dot indication

to the left or right in the

indicator.

4.2.2 Feed Pitch Selection

Procedure

(1) Press the button to select the lane.

(Only for 8 mm width Tape Feeder)

(2) Press the

button for 2 seconds or more to ash the display section.

(When the display section ashes, release your nger from the

button).

(3) Press the

button and keeping this condition, press the button or

button to set the feed pitch.

Note

When the button is pressed, the pitch changes bigger one.

Example :

→ 2 → 4 → 8 → 12 → 16—

When the

button is pressed, the pitch changes smaller one.

Example :

→ 16 → 12 → 8 → 4 → 2—

Reference

Refer to "1.1 Types of Tape Feeders " for the pitch amount.

(4) Change the pitch until the feed pitch to be set is reached, and then, press the

button.

The indication stops ashing and the indicator continuously stays on, when

the pitch is set.
