OM-1606
10-6
10. Electrical Circuit Diagrams

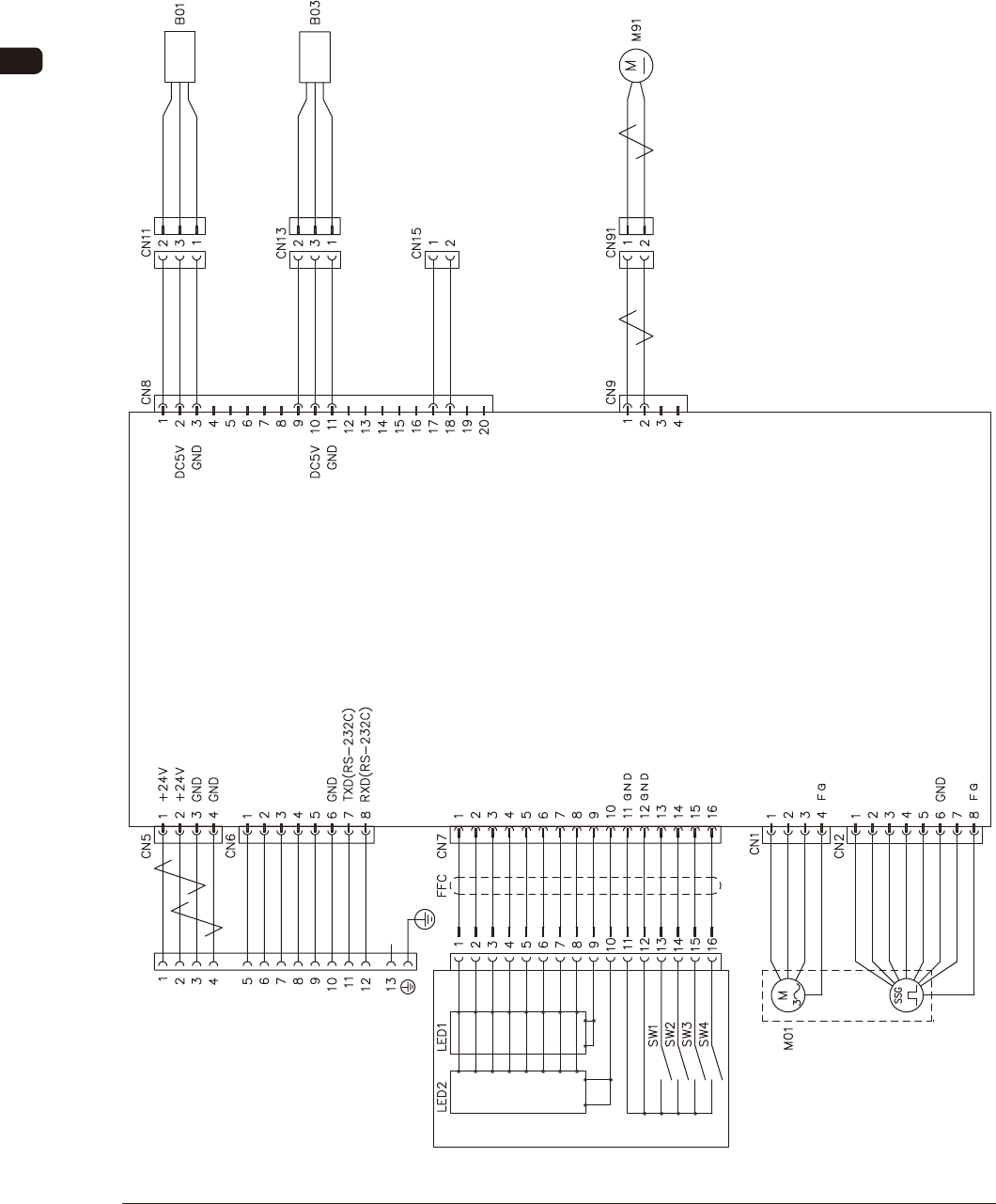

10.6 Feeder Control Circuit Diagram (GD-12162)
0908-001 -(M804WG---2001)
Connection Confirmation Signal
Lane 1 Feed Command
Lane 2 Feed Command
READY Signal
Connection Confirmation Signal
7-Segment LED is turned ON (a)
7-Segment LED is turned ON (b)
7-Segment LED is turned ON (c)
7-Segment LED is turned ON (d)
7-Segment LED is turned ON (e)
7-Segment LED is turned ON (f)
7-Segment LED is turned ON (g)
7-Segment LED is turned ON (D.P)
For Dynamic Light ON (first figure)
For Dynamic Light ON (second figure)
Cover Tape Take-up Key
Lane Selection Key
Forward Key
Backward Key
Motor Phase W
Motor Phase U
Motor Phase V
Encoder Phase A
/Encoder Phase A
Encoder Phase B
Power Supply (DC5V)
/Encoder Phase B
Reserve
Feeder Control Amplifier
Lane Splicing Detection Sensor
Lane Tension Detection Sensor
DC Motor
DC Motor Power Supply
Drawer Connector
Operation Panel
Lane Servo Motor
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
White
Brown
Blue
White
Brown
Blue
Blue
Black
Blue
Black
Lane Take-up Motor
OM-1606
10-7
10. Electrical Circuit Diagrams

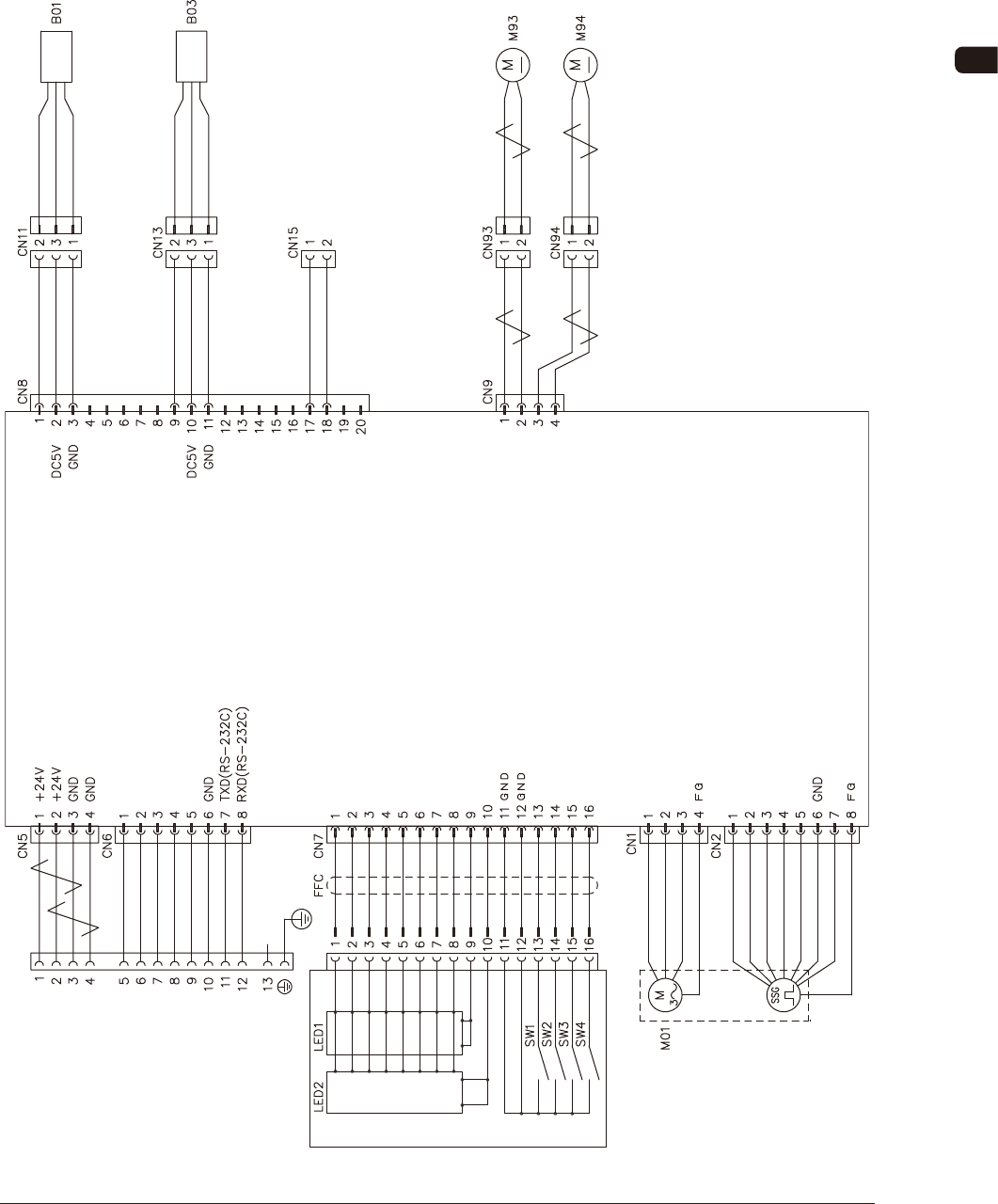

10.7 Feeder Control Circuit Diagram
(GD-24322 / GD-44562 / GD-72002 / GD-88002)
1011-002 -(M804WP---1001)
Drawer Connector
Connection Confirmation Signal
Lane 1 Feed Command
Lane 2 Feed Command
READY Signal
Connection Confirmation Signal
7-Segment LED is turned ON (a)
7-Segment LED is turned ON (b)
7-Segment LED is turned ON (c)
7-Segment LED is turned ON (d)
7-Segment LED is turned ON (e)
7-Segment LED is turned ON (f)
7-Segment LED is turned ON (g)
7-Segment LED is turned ON (D.P)
For Dynamic Light ON (first figure)
For Dynamic Light ON (second figure)
Cover Tape Take-up Key
Lane Selection Key
Forward Key
Backward Key
Motor Phase W
Motor Phase U
Motor Phase V
Encoder Phase A
/Encoder Phase A
Encoder Phase B
Power Supply (DC5V)
/Encoder Phase B
Lane Servo Motor
Reserve
Feeder Control Amplifier
Lane Splicing Detection Sensor
Lane Tension Detection Sensor
DC Motor
DC Motor Power Supply
DC Motor
DC Motor Power Supply
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Black
Blue
Black
Blue
Black
Blue
Black
White
Brown
Blue
White
Brown
Blue
Lane Take-up Motor
Lane Take-up Motor
Operation Panel
