8. Specications of Tape Feeders
1011-002
Note
(a) A
0
× B
0
stands for the rectangle hole size on the tape.
The clearance between a rectangle hole and a component affects the pick-
up rate.
Use the taping component with appropriate clearance specications.
(b) The above specications do not imply any guarantee of pick-up rate, etc.
The pick-up rate varies depending on how the main machine is adjusted
and the combination of the main machine and the tape feeders.
(c) Make a hole (D
1
) in the cavity if necessary.
(d) 10 pitches cumulative tolerance P
0
should be ± 0.2 mm.
(e) The cover tape should run smoothly along the sprocket holes.
The edges of the cover tape should be aligned with the carrier tape (taping).
The thickness of the cover tape should be 0.07 mm or less (including waste
paper).
(f) Use a taping on condition that the component itself or its electrical contact
is not protruded from the upper surface of tape.

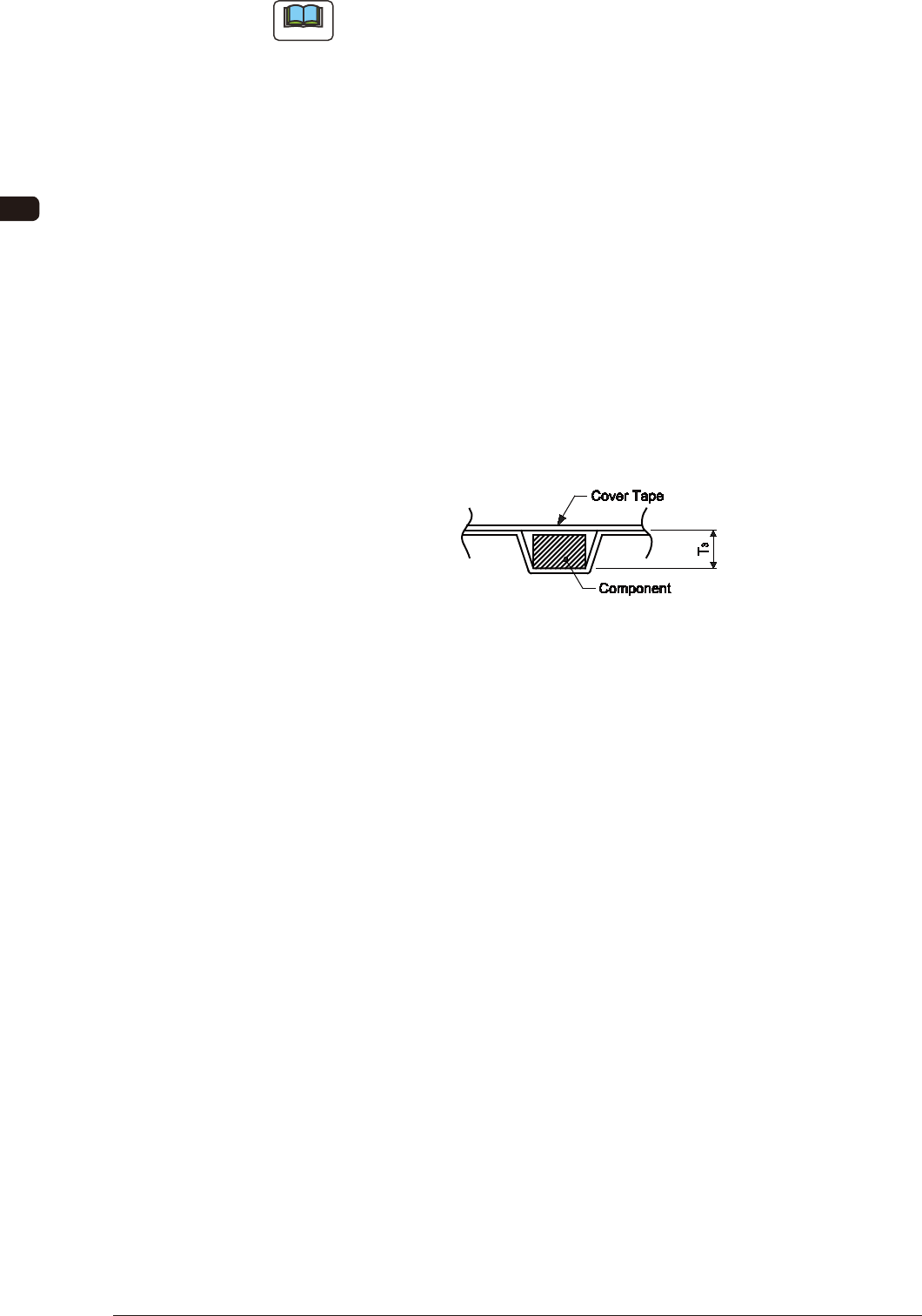

Embossed Taping
"Embossed depth (T
3
) > Component thickness"
FH23
(g) Shown in column "t" is the gap between the component pick-up and chute
surfaces.
As the gap can be adjusted by the stroke control, set the pick-up level data
in the component library data.
If dimension "t" is big, components may not stay still or may be tilted.
Be sure to adjust the dimension for the appropriate one in the range of
values specied in the table.
(h) The shape of component pick-up surface should be wide and smooth
enough to be picked up by vacuum nozzles.
(i) Cover tapes sometimes become thicker than expected due to leafy and
uffy leftovers produced through the production process.
However, the overall thickness should not exceed the value described as
"T2" in the table.
OM-1606
8-23
8. Specications of Tape Feeders
1011-001
8.7 Specications of 4 mm Tape Feeder
Model
Tape Width
×
Feed Pitch
(mm)
Types of
Tape
Standard Set
Reel Outer
Diameter
×
Width (mm)
Chute
Height
(mm)
Referential
Components
Remarks
GT-24040 4 × 1 Embossed
L : f 180 ×
7.95
104.0
0402
0603
• 0402, 0603
• Barcode Label Color :
Green, White
TH15
OM-1606
8-24
8. Specications of Tape Feeders
1011-001

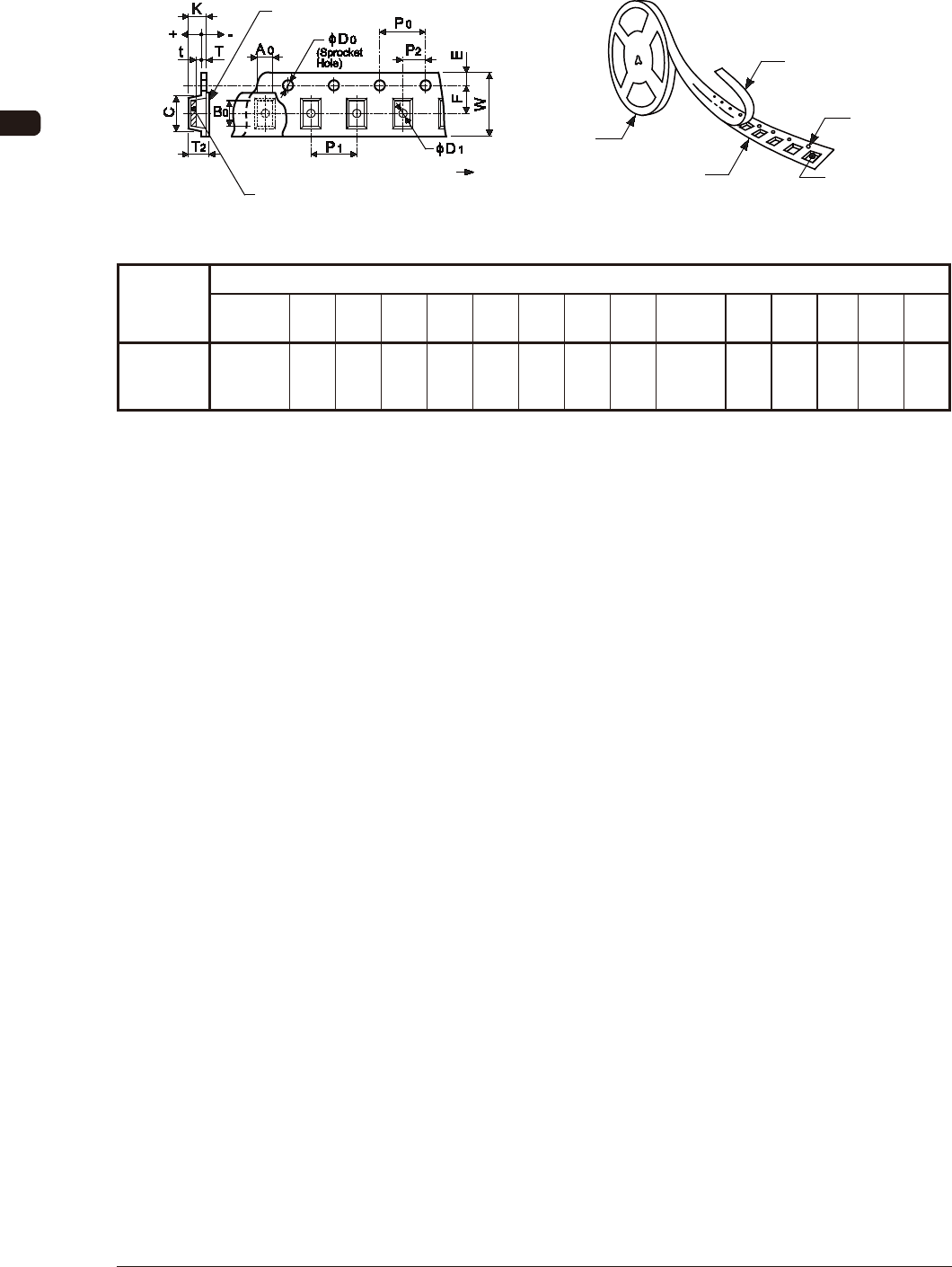

8.7.1 Referential Dimension for Taping
Embossed Carrier Type Taping
Cover Tape
Taped Component
Direction of Unreeling
Cover Tape
Sprocket Hole
Reel
Embossed Carrier Tape
Embossed Hole
Component
Compartment
FH24 FH25
Dimensions for Taping (mm)
Tape Width
×
Feed Pitch
(mm)
A
0
B
0
W F E P
1
P
2
P
0
D
0
T T
2
K D
1
C t
4 × 1
More than 0.3
to 0.7 or less
0.7
or less
4.0
± 0.08
1.8
± 0.03
0.90
± 0.05
1.0
± 0.03
1.0
± 0.03
2.0
± 0.04
φ 0.8
± 0.04
More than
0.15 to 0.40
or less
0.7
or
less
0.62
or
less
-
1.0
or less
+ 0.1
to
- T
(g)
TH16
