OM-1606
3-6
3. Tape Feeder Attachment and Detachment Procedures

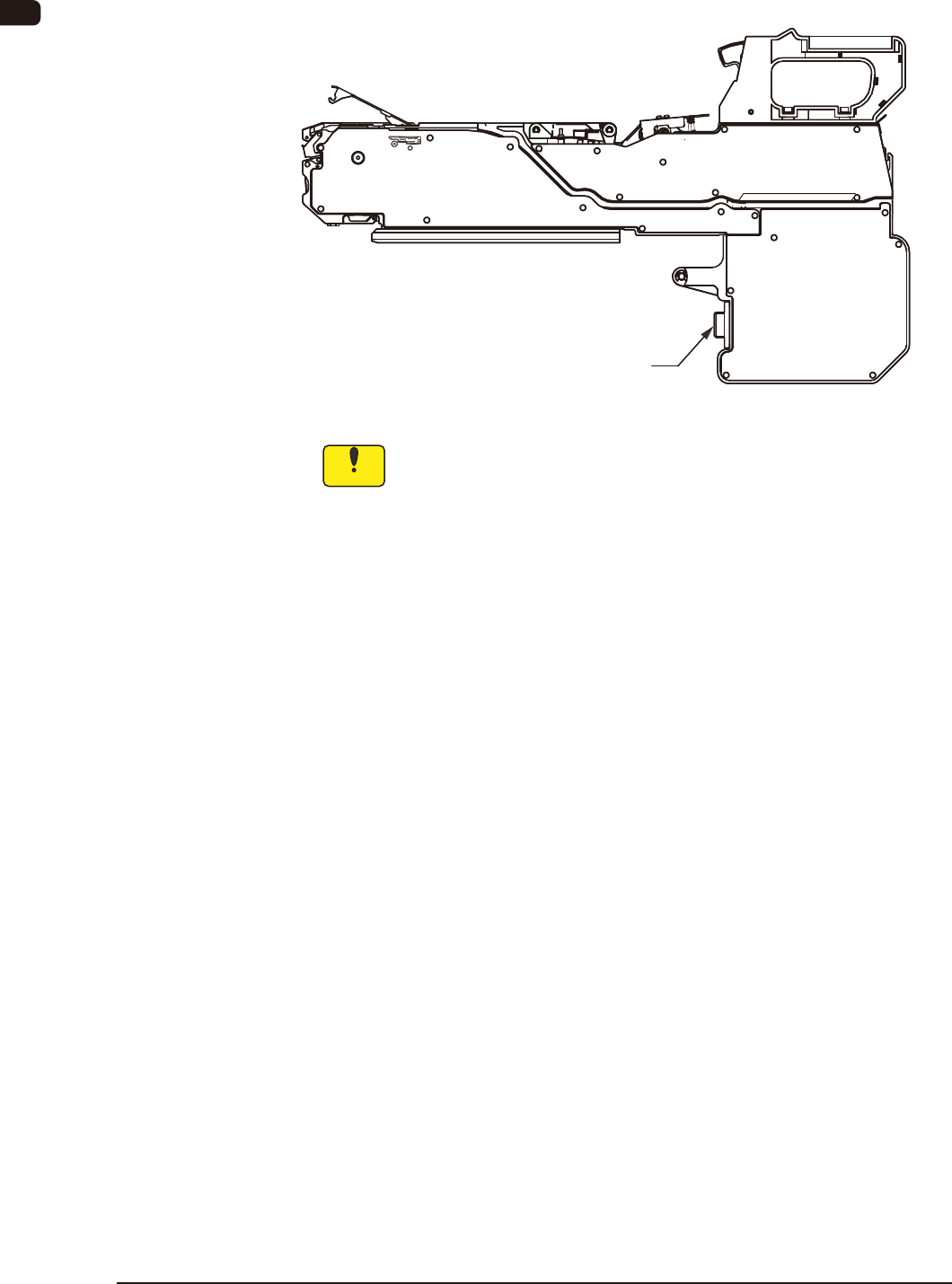

(5) Hold the grip, and insert it forward carefully until a click sound is heard.
At the same time, make sure that the tape feeder connector has been securely
connected.
Connector
FC4
Notice
•
If the machine is used with the tape feeder lifted, it might cause
machine (SIGMA-G4/G5) breakdown or pick-up error.
Mount the tape feeder securely on the feeder base.
•
Remove the unused tape feeders from the bank feeder change
cart.
Also, if the machine has been operated for a long time with
such unused tape feeders attached, then the tape will have
been slackened, which might cause a pick-up error.
1005-002
OM-1606
3. Tape Feeder Attachment and Detachment Procedures
3-7

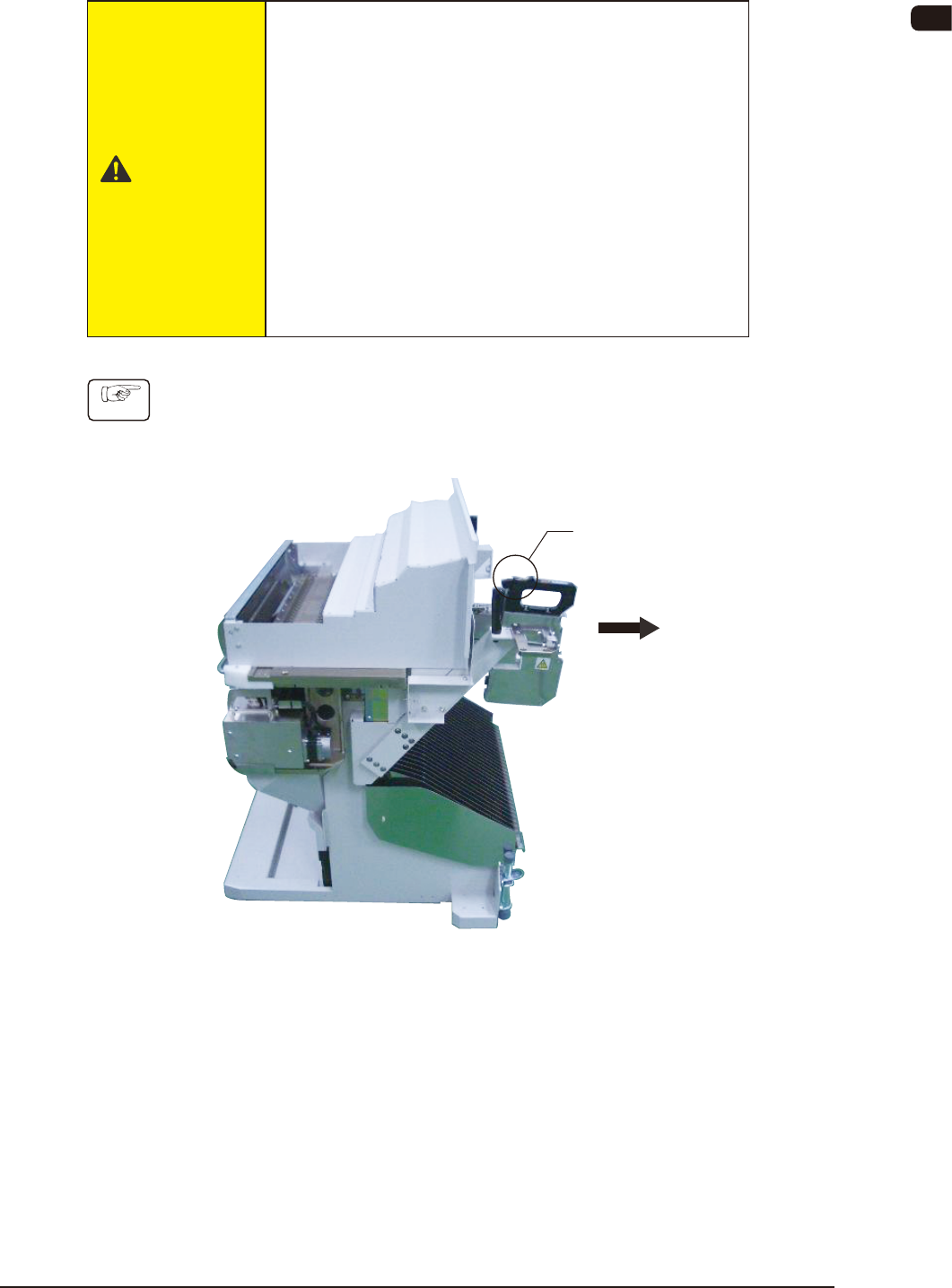

3.2 Tape Feeder Detachment Procedure
CAUTION
Do not drop the tape feeder, when attaching or
detaching.
Some tape feeder models are rather heavy.
In the case that the feeder is removed with one hand, your
hand might not be able to support the feeder weight when
it is removed from the base, which might cause a fall of
the feeder.
Falling of a tape feeder might cause an injury on your feet
or damage to the feeder.
Hold such feeder with your both hands one by one and
take care not to drop it.
Procedure
(1) Press the clamp cancel lever.
(2) Draw the tape feeder carefully to this side.
Clamp Cancel Lever
FC5
0908-001
OM-1606
3-8
3. Tape Feeder Attachment and Detachment Procedures
0908-001
