OM-1606
2-6
2. Attachment and Detachment of Tape
•
For GT-88002, GD-88002

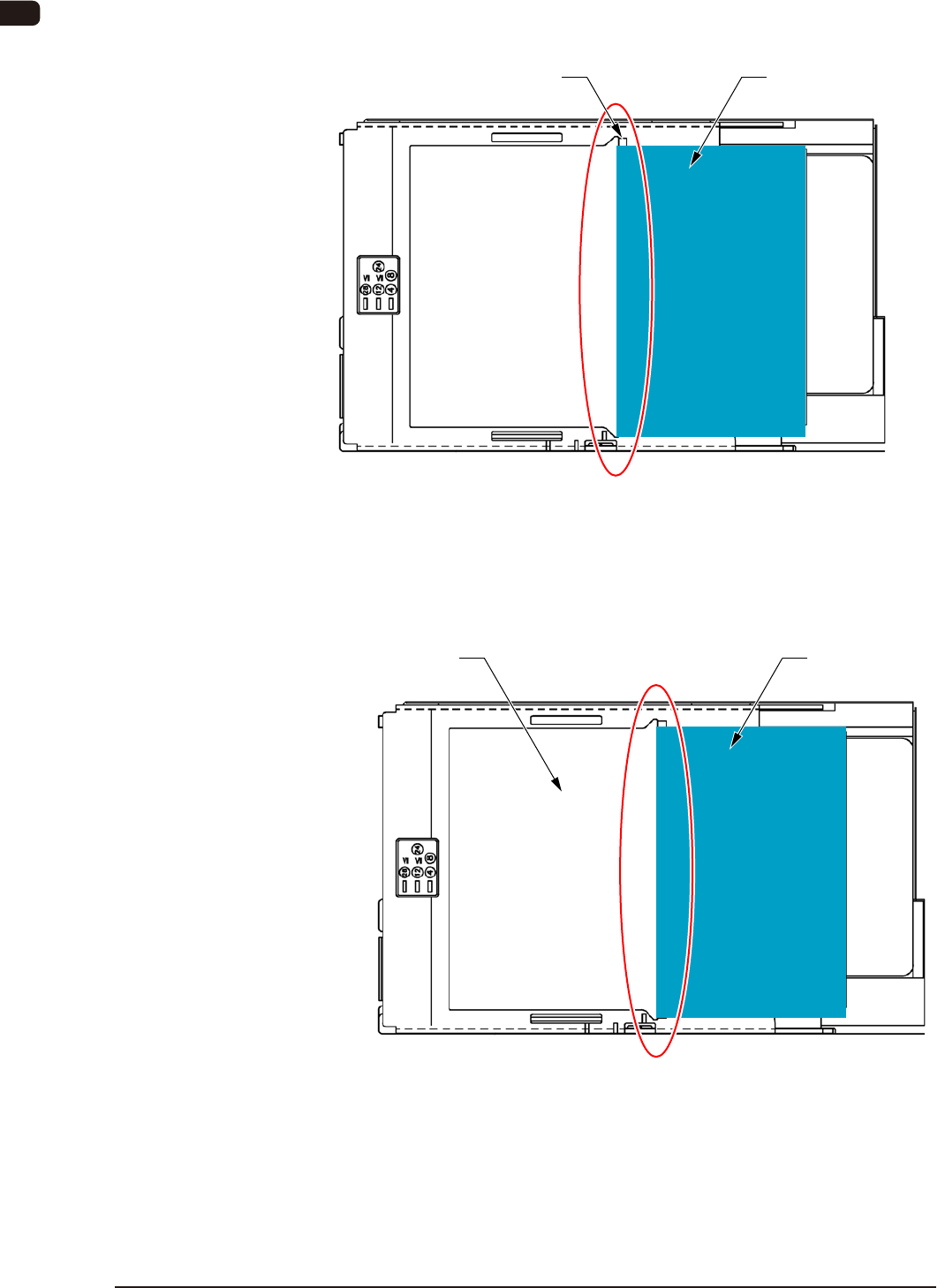

Normally, set the cover tape through the slit on the peeling section as shown in the
following gure.
Slit in the Peeling Section
Cover Tape
FB9-1
In the case that a component body or component electrode section is projecting
from the tape surface due to the taping deformation, set the cover tape through the
pick-up aperture section as shown in the following gure.
Pick-up Aperture Section
Cover Tape
FB9-2
1011-002
OM-1606
2. Attachment and Detachment of Tape
2-7
(7) Set the carrier tape in the chute section so that the sprocket pins are securely
engaged with the sprocket holes.
(8) Make sure that components are not scattered on the carrier tape.
(9) Lower the suppressor carefully.
Push down the suppressor so that it does not mount on the chute.
(10) Make sure that the cover tape or chip component is not caught in the peeling
section.

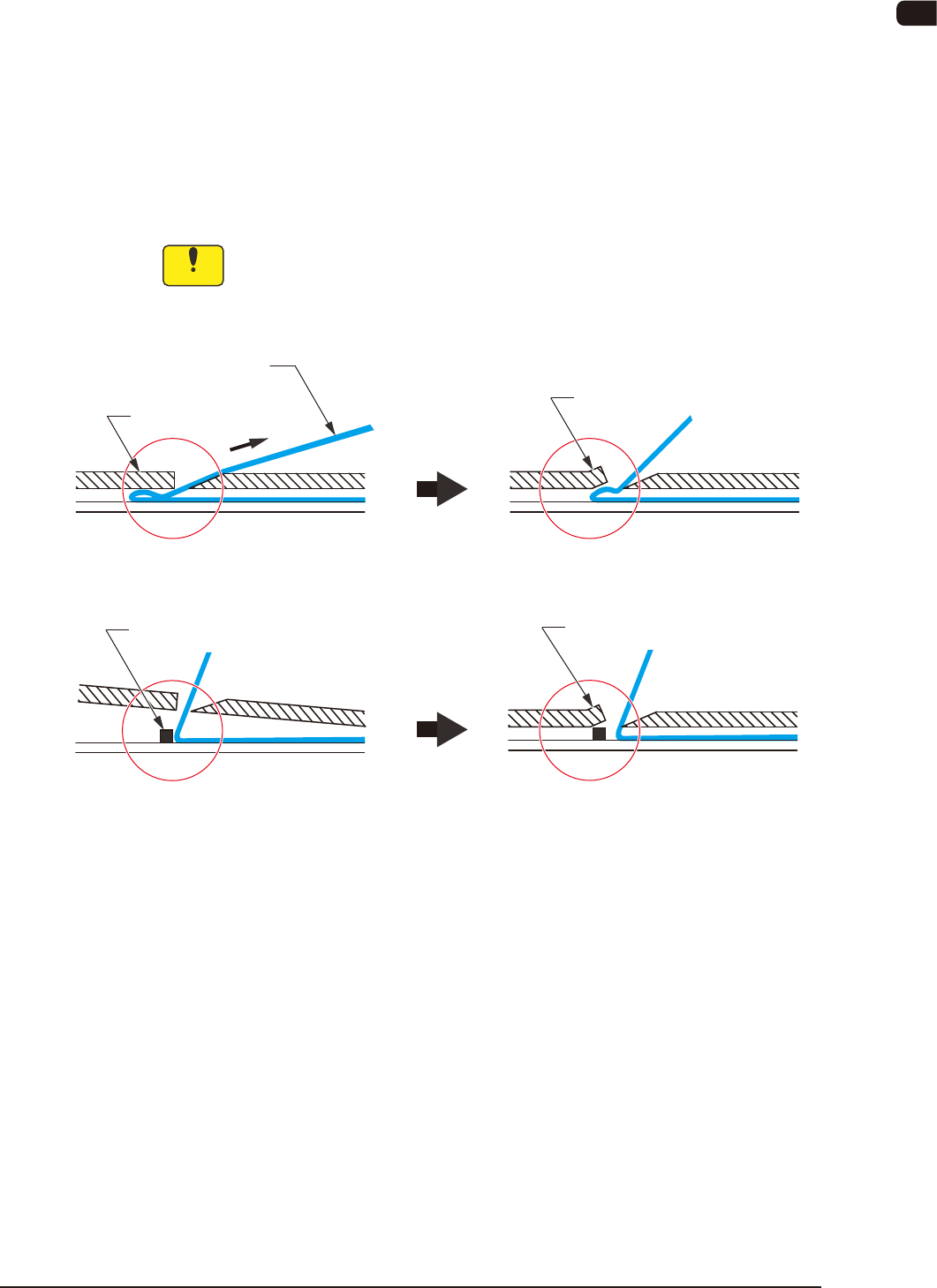

Notice
If the cover tape or the chip component gets caught by the suppressor,
then the peeling section might be deformed or a pick-up error occur.
If there is any such catching of the cover tape or chip component, do not
pull it out forcibly; just lift the suppressor.
If operation is performed with the
cover tape caught in the
suppressor . . .
The peeling section might be
deformed.
If the suppressor is lowered with
any foreign substance on the tape
surface . . .
The peeling section might be
deformed.
Deformation
Cover Tape
Suppressor
Foreign Substance
Deformation
FB10
0908-001
OM-1606
2-8
2. Attachment and Detachment of Tape
(11) Maintain the suppressor being lowered: press the upper section of the front
hook to x the suppressor.
Fix the suppressor with the front hook.
Front Hook
FB11
NOTICE
Securely lock the suppressor with the front hook.
If the tape feeder is operated while the suppressor
is raised, the machine (SIGMA-G4/G5) might be
damaged or incur a pick-up error.
1005-002
