OM-1606 2-20 2. Attachment and Detachment of T ape 2.5.2 Preparation before using 16 mm, 32 mm, 56 mm width tape If a 16 mm width tape in GT-12162 and GD-12162 or a 32 mm width tape in GT-24322 and GD-24322 is to be used…
OM-1606
2. Attachment and Detachment of Tape
2-19
•

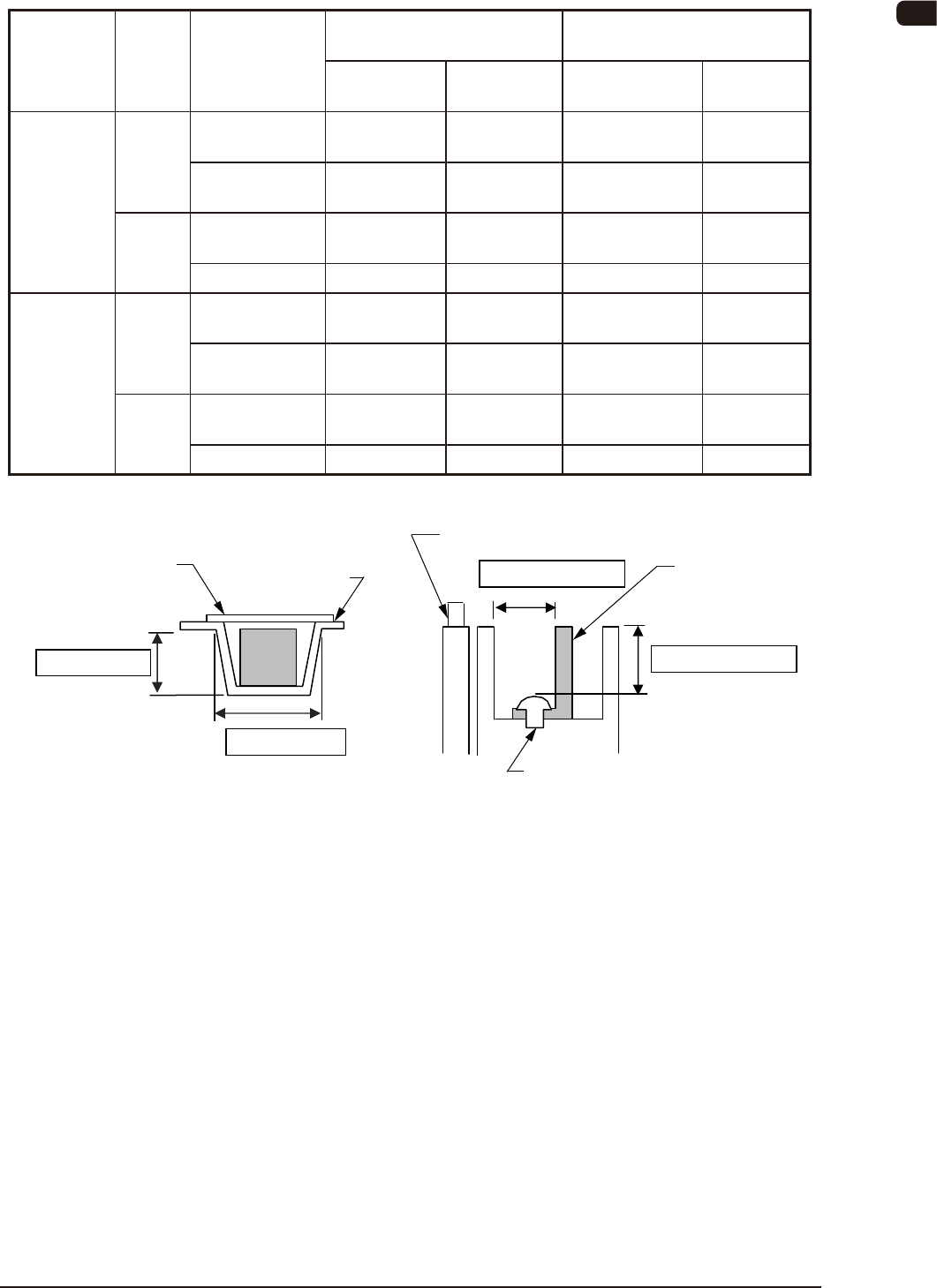

Emboss Size to be provided and Feeder Size with or without the Tape
Guide
Model
Tape
Width
Fixing Method
Emboss Size to be
Provided
Feeder Size
Max. Pocket
Width
Max. Pocket
Depth
Tape Guide
Width
Tape Guide
Depth
GT-12162
12 mm
Countersunk
Head Screw
8.4 mm 12.1 mm 8.5 mm 14.0 mm
Round Head
Screw
8.4 mm 11.5 mm 7.7 to 8.5 mm 12.3 mm
16 mm
Round Head
Screw
11.5 mm 11.5 mm 11.6 mm 12.3 mm
Without Guide 12.3 mm 12.1 mm 12.4 mm 14.0 mm
GT-24322
24 mm
Countersunk
Head Screw
20.3 mm 16.1 mm 20.4 mm 18.7 mm
Round Head
Screw
20.3 mm 16.1 mm 19.4 to 20.4 mm 16.6 mm
32 mm
Round Head
Screw
- - - -
Without Guide 24.0 mm 16.1 mm 25.4 mm 18.7 mm
TB2
Tape Guide
Carrier Tape
Cover Tape
Sprocket
Screw
Tape Guide Width
Tape Guide Depth
Pocket Width
Pocket Depth
FB22
0908-001
OM-1606
2-20
2. Attachment and Detachment of Tape
2.5.2 Preparation before using 16 mm, 32 mm, 56 mm width tape
If a 16 mm width tape in GT-12162 and GD-12162 or a 32 mm width tape in
GT-24322 and GD-24322 is to be used, then a tape guide and support suppressor
detachments are required.
Also, if a 56 mm width tape in GT-44562 or GD-44562 is to be used, the support
suppressor and component drop preventive cover removals and tape guide
movement are required.
•
For using tape with 16 mm width
Procedure

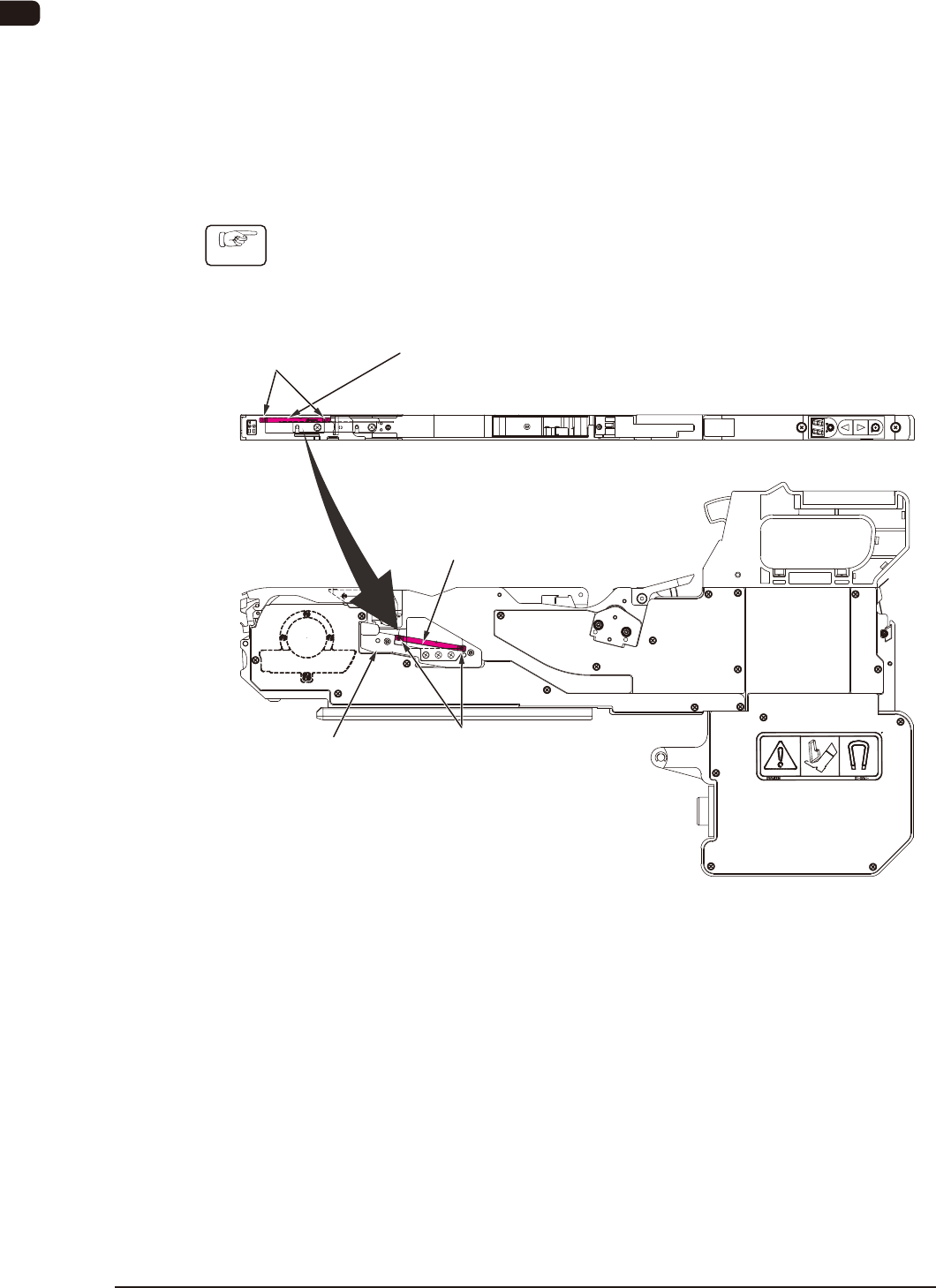

(1) Loosen the set screw (round head screw) with a precision screw driver to
remove the support suppressor, and then attach it onto the support suppressor
housing section.
Support Suppressor
Support Suppressor
Set Screw
(Round Head Screw)
Set Screw
(Round Head Screw)
Support Suppressor
housing section
Housing
FB23
1005-002
OM-1606
2. Attachment and Detachment of Tape
2-21

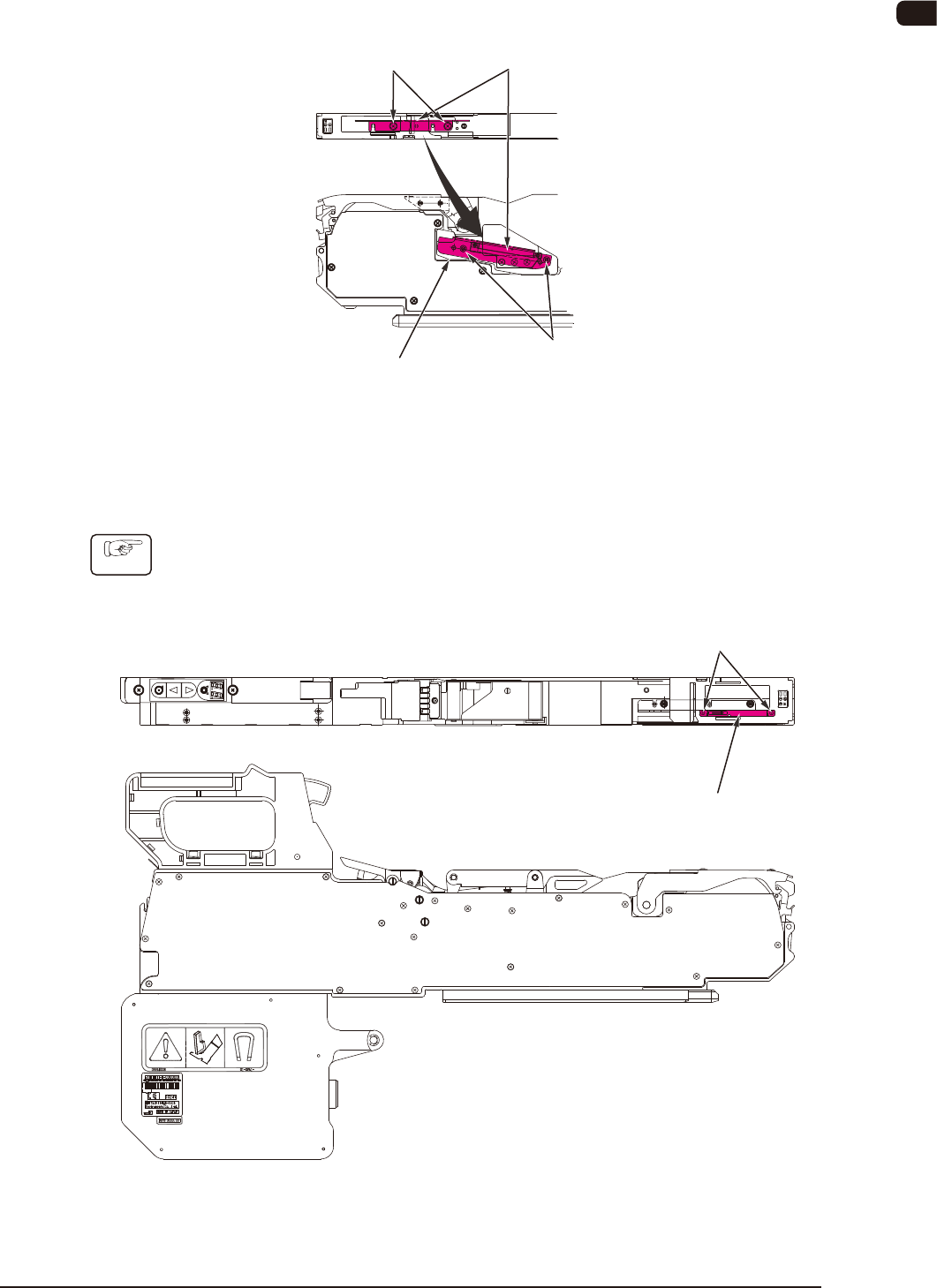

(2) Loosen the set screw (countersunk head screw) to remove the tape guide and
attach the tape guide onto the support suppressor housing section.
Set Screw
(Countersunk Head Screw)
Support Suppressor
housing section
Housing
Set Screw
(Countersunk Head Screw)
Tape Guide
FB24
•
For using tape with 32 mm width
Procedure
(1) Loosen the set screw (round head screw) with a precision screw driver to
remove the support suppressor.
Support Suppressor
Set Screw
(Round Head Screw)
FB25
0908-001
