Section 5 Electrical Circuit Diagram Tg0861-PM-MD Operation Box B SDS OUT 0307-002-(M805WBM--0005) 5-60 BM (B) Blcok BB Blcok BM (B) Blcok START (B) LED MOVE (B) LED ZERO (B) LED Reserved PNL CHANGE (B) LED LOCK (B) LED …
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Operation Box B SDS IN
0305-001-(M805WBM--0004) 5-59
START (B)
MOVE (B)
ZERO (B)
Reserved
STOP (B)
PAUSE (B)
RESET (B)
SYS CLR (B)
Reserved
PNL CHANGE (B)
CONSOLE CHANGE (B)
READY (B)
Reserved
Reserved
Reserved
BM (B) Blcok
BB Blcok
BM (B) Blcok
Feeder Bank Replacement
Switch (B) (Option)
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Operation Box B SDS OUT
0307-002-(M805WBM--0005) 5-60
BM (B) Blcok
BB Blcok
BM (B) Blcok
START (B) LED
MOVE (B) LED
ZERO (B) LED
Reserved
PNL CHANGE (B) LED
LOCK (B) LED
CONSOLE CHANGE
LOCK (B) LED
CONSOLE CHANGE
(B) LED
READY (B) LED
Reserved
Reserved
Reserved
Reserved
Reserved
Feeder Bank Replacement
Switch (B) LED (Option)
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD

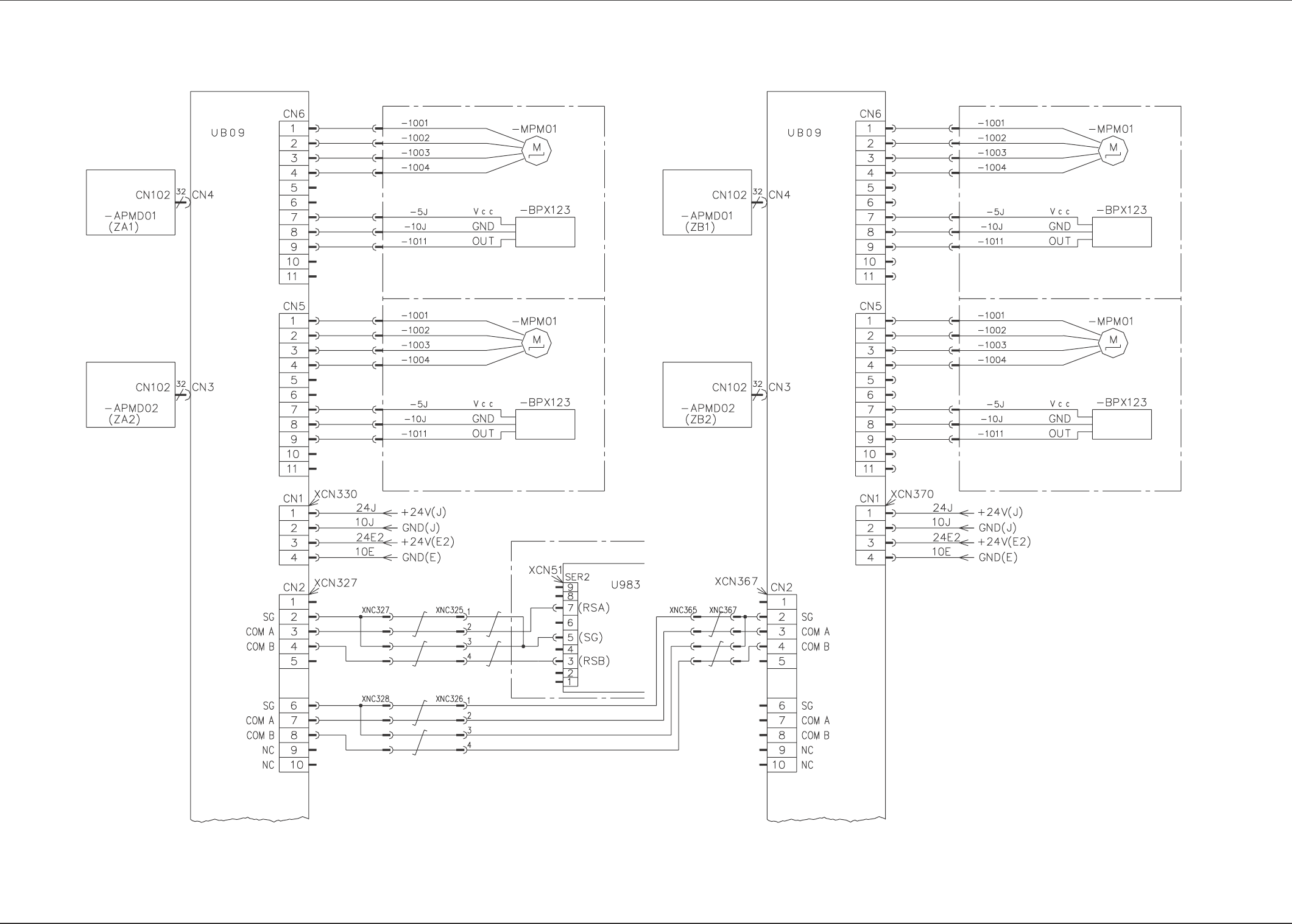

Irregular-Shaped Head Circuit
0305-001-(M805WCB--0001) 5-61
Head A Section
Mother Board
Red
Orange
White
Violet
Red
Orange
White
Violet
Red
Orange
White
Violet
Red
Orange
White
Violet
MC (A) Block
MB (A) Block
HEAD ZB1
Pulse Motor
HEAD Origin
ZB1
MC (B) Block
MB (B) Block
Control Box
BC Block
CPU2 Board
Head B Section
Mother Board
HEAD ZB2
Pulse Motor
HEAD Origin
ZB2
HEAD ZA1
Pulse Motor
HEAD Origin
ZA1
HEAD ZA2
Pulse Motor
HEAD Origin
ZA2
