Tg0861-PM-MD 0305-001 3-5 2.2 List of Device Information Messages T able 5C2 Items A Device Information Messages B Remarks 0 5H CLOSE THE COMPON ENT SUPP L Y CO VER [A] (BACK SI DE) AND PRESS THE [R EADY [A]] BU TTO N TO…
Tg0861-PM-MD
2.2 List of Device Information Messages
0305-001 3-4
2.2 List of Device Information Messages
Table 5C1
Items A Device Information Messages B Remarks
01H WARNING:
DECREASING OF CMP.
HDLG RATE (FOR NOZ)
01H NOZZLE MESSAGE RATE :
02H WARNING:
DECREASING OF CMP.
HDLG RATE (FOR FDR)
01H FEEDER MESSAGE RATE :
01H CMP. MISSING (SENSOR)
02H CMP. VERTICAL (SENSOR)
03H CMP. MISSING (RECOG)
04H CMP. RECOG ERROR
03H ALTERNATED FEEDER
05H SHORTAGE OF COMPONENT
01H CMP. MISSING (SENSOR)
02H CMP. VERTICAL (SENSOR)
03H CMP. MISSING (RECOG)
04H CMP. RECOG ERROR
05H START AUTO
RECOVERY MODE
05H SHORTAGE OF COMPONENT
06H ALARM FOR
SHORTAGE OF CMP.
01H FEW COMPONENTS TO FEED.
01H FINISHED PRODUCT INTERVAL :
02H AUTO RUN INTERVAL :
08H PRODUCT
INFORMATION
03H NOZZLE USAGE INTERVAL :
09H MACHINE INTERFACE
SIGNAL
01H NO SIGNAL FROM FURNACE.
0AH PICK-UP ERROR 01H CMP. MISSING (SENSOR)
02H CMP. VERTICAL (SENSOR)
03H CMP. MISSING (RECOG)
04H CMP. RECOG ERROR (RECOG)
05H SHORTAGE OF COMPONENT
07H SHORTAGE OF COMPONENT
(ALTERNATED FDR)
01H FEEDER WAS NOT SEATED AT
BEAM-A SIDE (BACK).;BPH053
02H FEEDER WAS NOT SEATED AT
BEAM-A SIDE (BACK).;BPH054
0BH OPERATE
INFORMATION
03H FEEDER WAS NOT SEATED AT
BEAM-B SIDE (BACK).;BPH055
04H FEEDER WAS NOT SEATED AT
BEAM-B SIDE (BACK).;BPH056
Tg0861-PM-MD0305-001 3-5
2.2 List of Device Information Messages
Table 5C2
Items A Device Information Messages B Remarks
05H CLOSE THE COMPONENT SUPPLY
COVER [A] (BACK SIDE) AND PRESS
THE [READY [A]] BUTTON TO SET
FEEDER [A] IN READY MODE.
06H CLOSE THE SAFETY BAR [A] (BACK
SIDE) AND PRESS THE [READY [A]]
BUTTON TO SET FEEDER [A] IN
READY MODE.
07H CLOSE THE COMPONENT SUPPLY
COVER [B] (FRONT SIDE) AND PRESS
THE [READY [B]] BUTTON TO SET
FEEDER [B] IN READY MODE.
08H CLOSE THE SAFETY BAR [B] (FRONT
SIDE) AND PRESS THE [READY [B]]
BUTTON TO SET FEEDER [B] IN
READY MODE.
09H REMOVE COMPONENT IN
COMPONENT REJECT BOX-A (BACK
SIDE) AND PRESS THE
READY [A]] BUTTON TO SET
FEEDER [A] IN READY MODE.
0BH OPERATE
INFORMATION
0AH REMOVE COMPONENT IN
COMPONENT REJECT BOX-B
(FRONT SIDE) AND PRESS THE
[READY [B]] BUTTON TO SET
FEEDER [B] IN READY MODE.
01H COMPONENT CARRIAGE DATA
EDIT: [X DIR.]
→
OFF
0CH AUTOMATIC FEEDER
AXIS ADJUSTMENT
LIMIT SOFT
02H COMPONENT CARRIAGE DATA
EDIT: [Y DIR.]
→
OFF
Tg0861-PM-MD

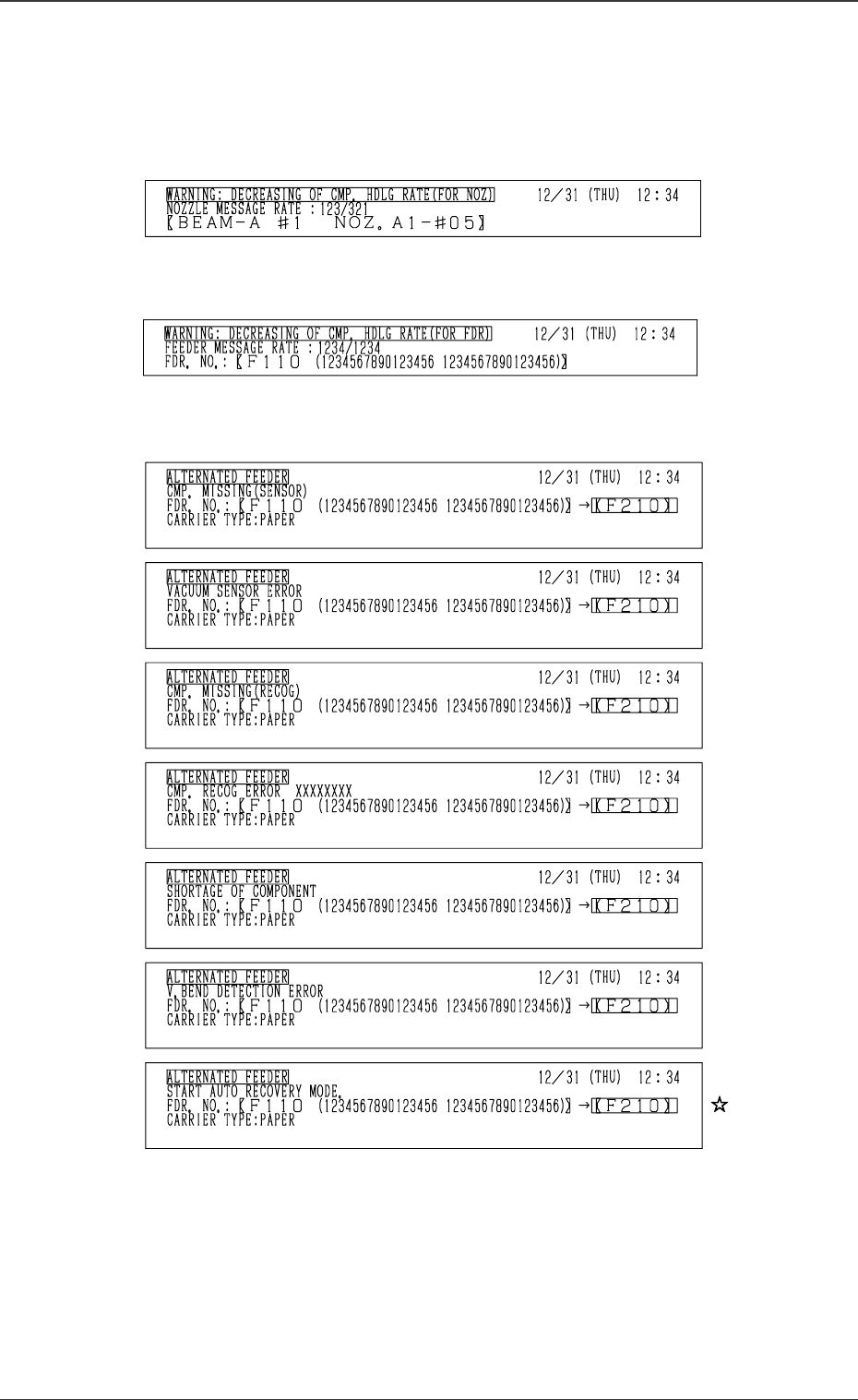

2.3 Examples of Device Information
Note: The ♦-marked items are optional.
(1) Decreasing of Component Handling Rate (For Nozzle)
(2) Decreasing of Component Handling Rate (For Feeder)
(3) Alternated Feeder
♦
♦
0305-001 3-6
2.3 Examples of Device Information
Fig. 5C6
Fig. 5C7
Fig. 5C8
