Section5 Electrical Circuit Diagram 0305-001- (M805WBB--0019) 5-29 Tg0861-PM-MD SDS OUT 7 Note: The area surrounded by the dashed line belongs to the relay P .C.B. (UA18 & UA19). ZB1-Axis Power Supply ON XB/YB-Axis P…
Section5 Electrical Circuit Diagram
0305-001- (M805WBB--0018) 5-28 Tg0861-PM-MD
SDS OUT 6
Note:
The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).
Relay P.C.B.
Relay P.C.B.
To Coil Terminal 5 of K151A
through Contact Terminal 3 of K23
(From Coil Terminal 5 of K153A)
ZA1-Axis
Power Supply ON
XA/YA-Axis
Power Supply ON
ZA2-Axis
Power Supply ON
LA1-Axis
Power Supply ON
LA1-Axis Brake
Forced Release
LA2-Axis Brake
Forced Release
LA2-Axis
Power Supply ON
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
To
Section5 Electrical Circuit Diagram
0305-001- (M805WBB--0019) 5-29 Tg0861-PM-MD
SDS OUT 7
Note:
The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).
ZB1-Axis
Power Supply ON
XB/YB-Axis
Power Supply ON
ZB2-Axis
Power Supply ON
LB1-Axis
Power Supply ON
LB1-Axis Brake
Forced Release
LB2-Axis Brake
Forced Release
LB2-Axis
Power Supply ON
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Relay P.C.B.
Relay P.C.B.
from
Section5 Electrical Circuit Diagram
0305-001- (M805WBC--0001) 5-30 Tg0861-PM-MD

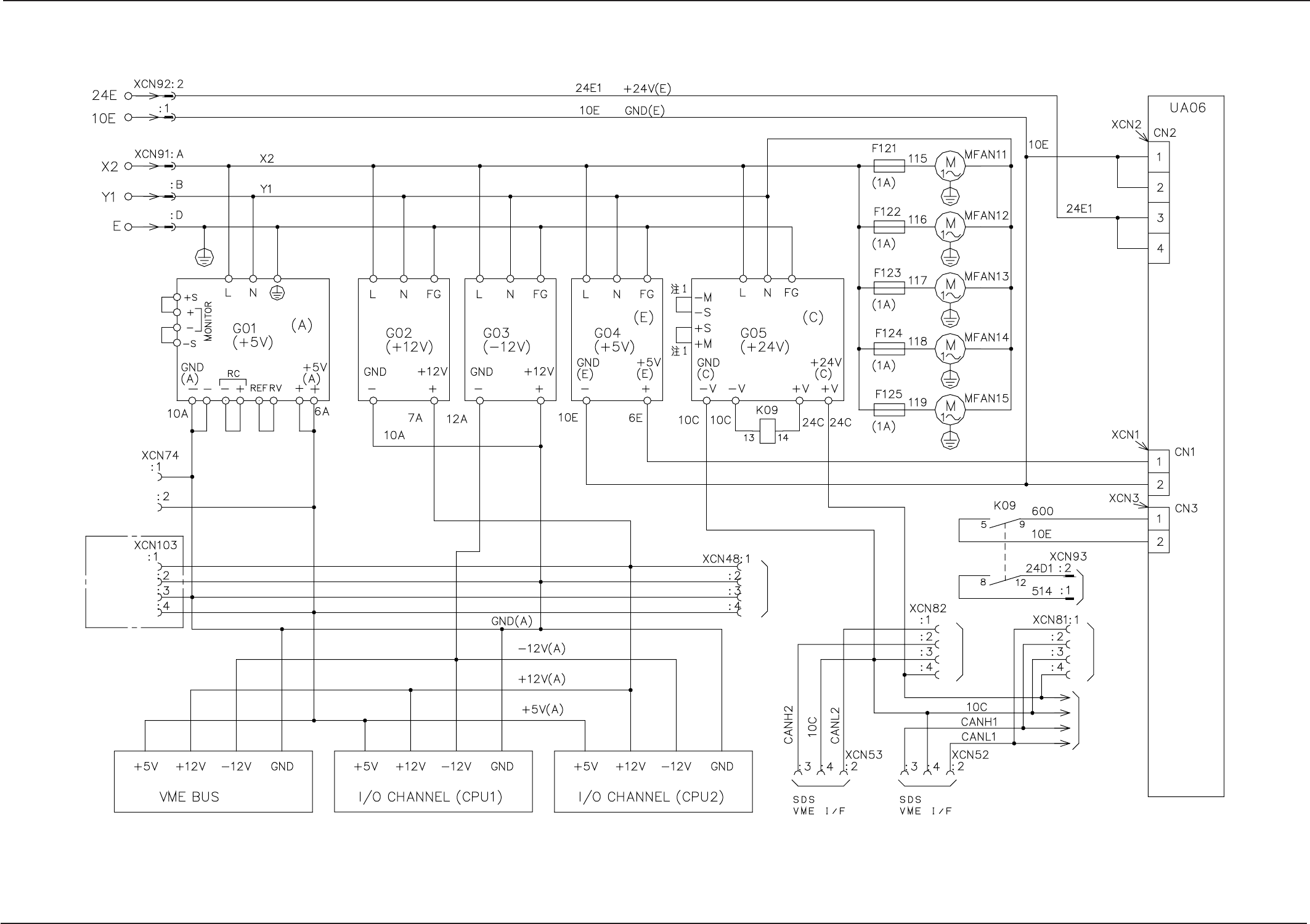

Control Box Power Supply Circuit
SDS Silicon Disk
Power Supply 1
To each
external
SDS node
Relay Connector Board
To the DI/O
board
To Power
Supply
Section 2
To each
external
SDS node
To the SDS
node in the
control box
Module CH0
Module CH1
To the external
FDD power supply
connector
To the HDD
power supply 2
connector
Option
