Section 6 Location of Sensors and Loads Tg0861-PM-MD Layout of Sensors and Loads in Cover Section 0305-001-(M805YG---0001) 6-1 Side B (Front View) Symbol Name BPH081 Maintenance Opening Detection A BPH082 BPH083 BPH084 M…
0305-001 6-B Tg0861-PM-MD
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads in Cover Section
0305-001-(M805YG---0001) 6-1
Side B (Front View)
Symbol Name
BPH081 Maintenance Opening Detection A
BPH082
BPH083
BPH084
Maintenance Opening Detection A
Maintenance Opening Detection B
Maintenance Opening Detection B
SQ081
SQ082
SQ083
SQ084
Supply Cover Electromagnetic Lock A
Supply Cover Electromagnetic Lock B
Maintenance Cover A
Maintenance Cover B
(Light Receiving Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
Note: BPH081, 081T, 082, 082T, SQ081, SQ083 is installed on the side A (Rear).
Note
Note
Note
Note
Section 6 Location of Sensors and Loads
Tg0861-PM-MD

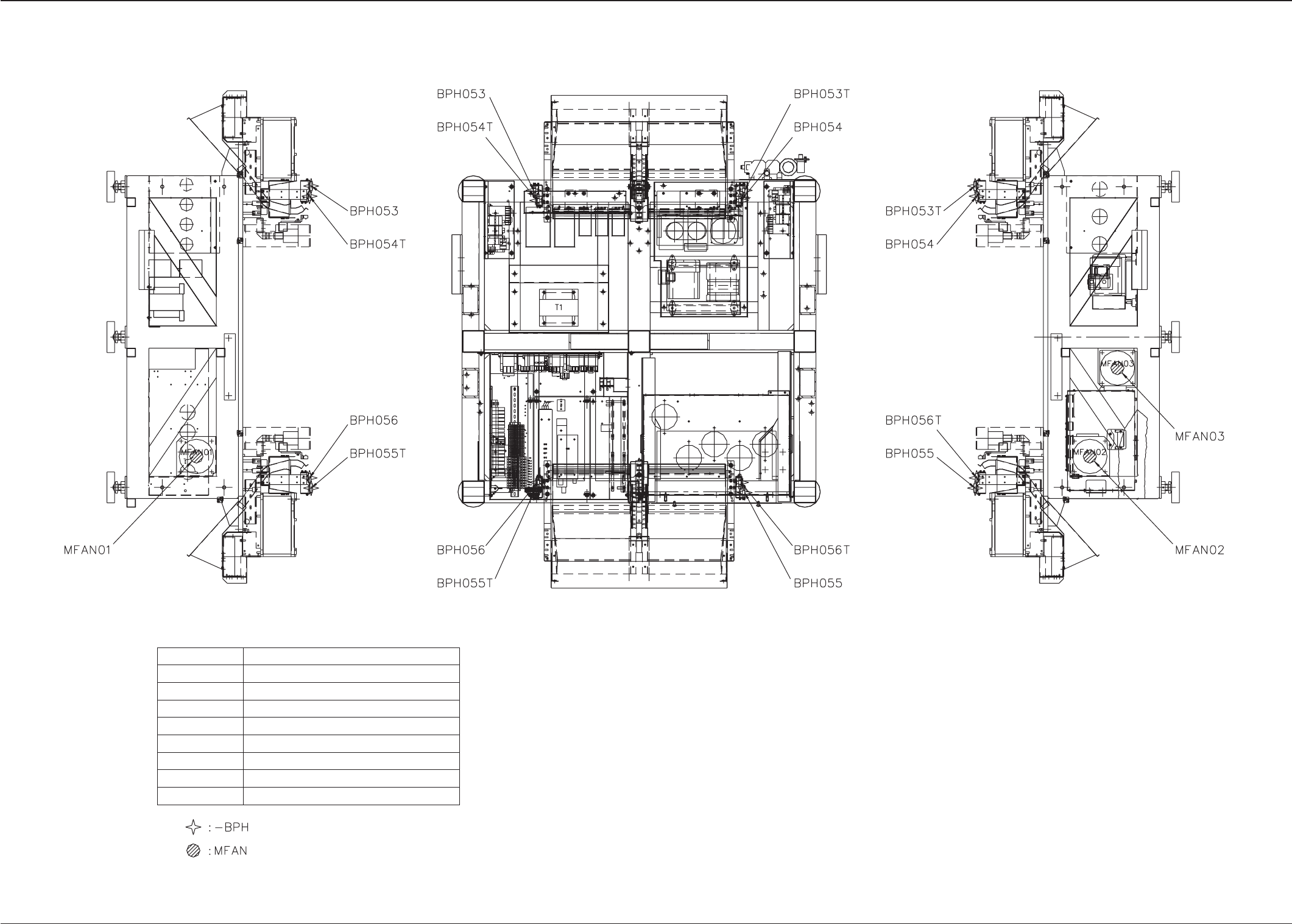

Layout of Sensors and Loads in Base Frame
0305-001-(M805YBB--0003) 6-2
Symbol Name
BPH053 Lifted Feeder Detection A1
BPH054
BPH055
BPH056
Lifted Feeder Detection A2
Lifted Feeder Detection B1
Lifted Feeder Detection B2
MFAN01
MFAN02
MFAN03
Cooling Fan 1 for Exhaust
Cooling Fan 2 for Exhaust
Cooling Fan 3 for Exhaust
(Light Receiving Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
