Section5 Electrical Circuit Diagram Power Supply Circuit Diagram (2) 0305-001- (M805WB---0002) 5-7 Tg0861-PM-MD BK Block BL Block BK Block BL Block BB Block Lighting Lighting Power Supply for Programming Device (Console …
Section5 Electrical Circuit Diagram
Power Supply Circuit Diagram (1)
0305-001A(M805WB---0001) 5-6 Tg0861-PM-MD
Power Supply for
Vaccum Pump Motor
BB Block
Axis
Axis
Main Circuit Power Supply
Axis
Axis
Axis
Main Circuit Power Supply
Axis
Axis
Main Circuit Power SupplyMain Circuit Power Supply Main Circuit Power Supply
Axis
Axis
Servomotor Driver
Control Circuit
Multi-Power Unit
For Input/Output Machine I/F
For I/O
Main Circuit Power Supply Main Circuit Power Supply
BF Block
BB Block
Section5 Electrical Circuit Diagram
Power Supply Circuit Diagram (2)
0305-001- (M805WB---0002) 5-7 Tg0861-PM-MD
BK Block
BL Block
BK Block
BL Block
BB Block
Lighting
Lighting
Power Supply for Programming Device
(Console Power Supply)
Plane B (Front Side)
Power Supply for Programming Device
(Console Power Supply)
Plane A (Rear Side)
Lighting for Servicing
Plane B (Front Side)
Lighting for Servicing
Plane A (Rear Side)
For Exhaustion Cooling Fan
(Front Left)
For Exhaustion Cooling Fan
(Front Right)
For Exhaustion Cooling Fan
(Front Side)
For Exhaustion Cooling Fan
(Back Side)
Control Box Section
For DC Power Supply
To Traverse Axis Motor Driver
To Multi-Layer Tray L
To Multi-Layer Tray R
Operation Box A
Connecter for Monitor
Operation Box B
Connecter for Monitor
Recognition Monitor
Power Supply
for Loads
To Extended EL Conveyor (Option)
Transfer Motor
To Extended ER Conveyor (Option)
Transfer Motor
To Component Dischange Conveyor A (Option)
Transfer Motor
To Component Dischange Conveyor B (Option)
Transfer Motor
BK Block
BK Block
Control Power Supply
Power Outlet
for Recognition Monitor
Plane B (Front Side)
Safety Relay
BG Block
BL Block
BK Block
BL Block
BK Block
The wiring after the block BK shall be optional.
The wiring after the block BL shall be optional.
LA1, 2, LB1, 2, BPC
Servo-Brake Power Source
Lower Frame
Cooling Fan
(Right from the Center)
To PWC Axis Pulse Motor Driver
To Conveyor Motor

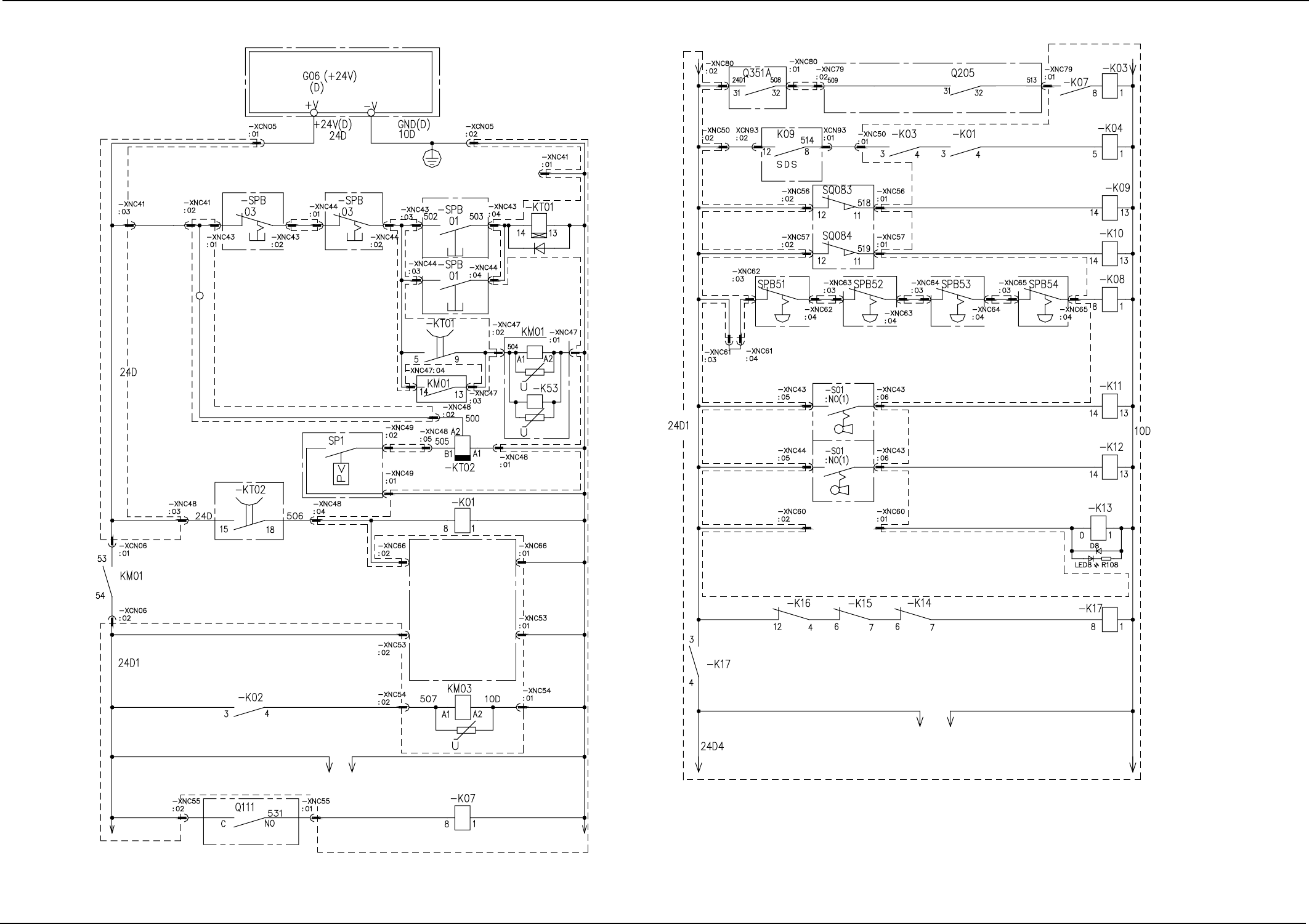

Section 5 Electrical Circuit Diagram
Power Supply Circuit Diagram (3)
0307-002A(M805WB---0003) 5-8 Tg0861-PM-MD
SLOT 2
Note:
The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19)
PWC Axis
Vacuum Pump
BPC Axis
BD Block
BC Block
24V Check
G Block
Power Supply
for Loads
Emergency Stop
Safety Relay(K99)
CB OFF
BG Block
Multi-Power Unit
Power ON Delay
Timer
Control Power ON
Air Pressure Drop
Detection
(OFF Deray)
Air Pressure Drop
Detection
(Power Supply for Input/
Output Machines)
Air Pressure Drop
Detection
Multi-Layer Tray Feeder
Primary Power Source
ON
Vaccum Pump Motor
PWC Axis CB OFF
Air Pressure Drop
Tray
Feeder
BB Block BB Block BB Block BB Block
BM (A)
Block
BM (B)
Block
BK Block
Input/Output Machine I/F Board
Maintenance Cover A
Detection
Maintenance Cover B
Detection
Emergency Stop
[OPERATION/SET UP]
Switch (Rear Side) A
[OPERATION/SET UP]
Switch (Front Side) B
Safety Device OFF
INTLK BYPASS
BJ Block
BF Block
BM (A) Block
BM (B) Block
BM (B) Block
BM (A) Block
External Communication
ON/OFF
BL Block
BG Block
B Block
