Section5 Electrical Circuit Diagram 0305-001- (M805WBB--0013) 5-23 Tg0861-PM-MD SDS OUT 1 Note: The area surrounded by the dashed line belongs to the relay P .C.B. (UA18 & UA19). P .C.B. Stopper L Ascending P .C.B. S…

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0012) 5-22 Tg0861-PM-MD

SDS IN 5

Note:

The area surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).

Reserved

INTLK BYPASS

[OPERATION/SET UP]

Switch (Rear Side) A

[OPERATION/SET UP]

Switch (Rear Side) B

Relay P.C.B.

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0013) 5-23 Tg0861-PM-MD

SDS OUT 1

Note:

The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).

P.C.B. Stopper L

Ascending

P.C.B. Stopper L

Descenting

P.C.B. Stopper R

Descenting

P.C.B. Stopper R

Ascending

Reserved

BPC-Axis Servo ON

BPC-Axis Power ON

BPC-Axis Brake

Forced Release

Extended EL Conveyor

Stopper Ascending (Option)

Extended EL Conveyor

Transfer Motor Normal

Rotation (Option)

Extended EL Conveyor

Transfer Motor Reverse

Rotation (Option)

Y Pusher Forward

Movement

Y Pusher Backward

Movement

SDS Relay P.C.B.

(For Output)

From Contact

Terminal 3 of K22

To Coil Terminal 5 of K108A and K109A

To the Extended EL

conveyor (option)

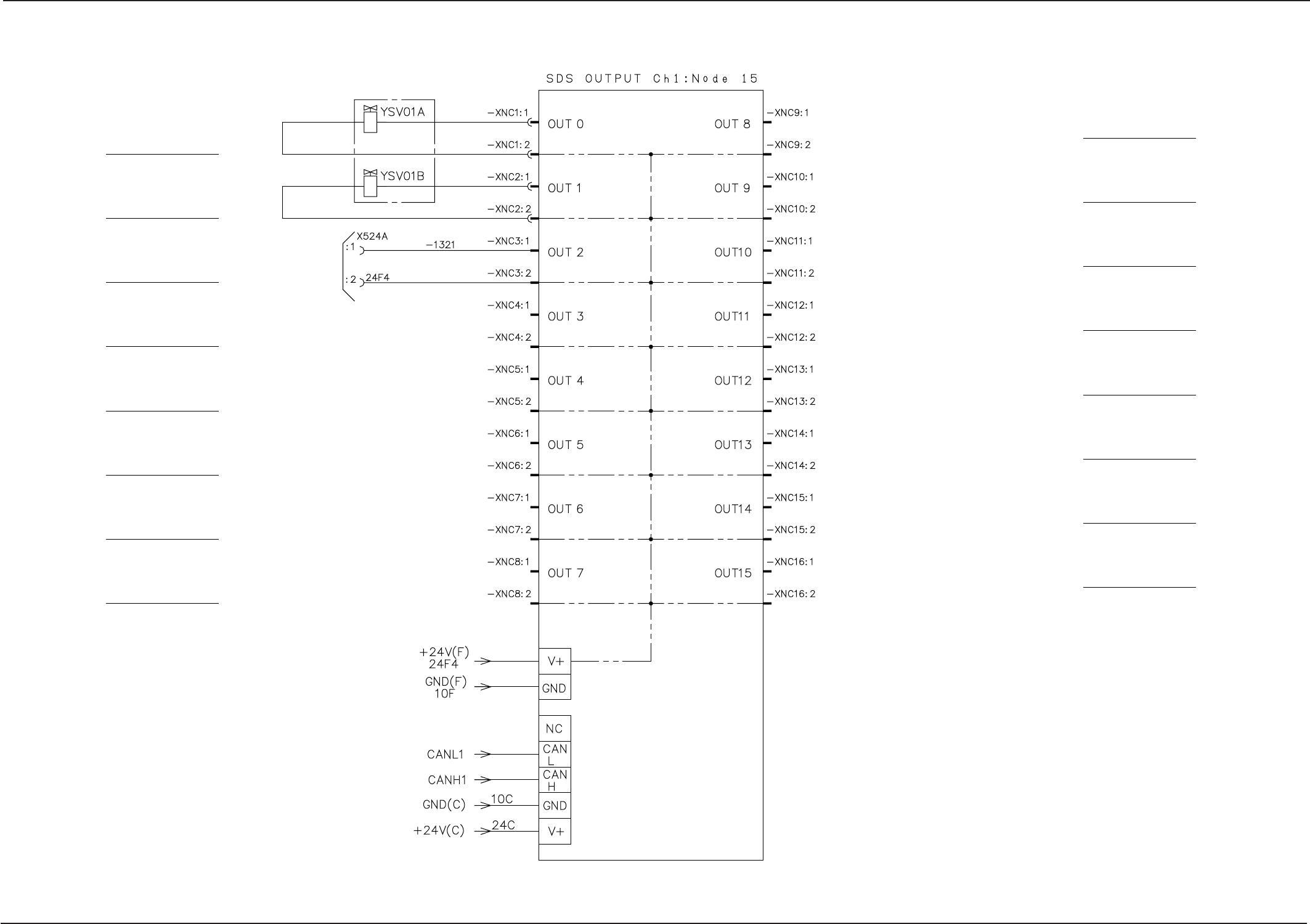

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0014) 5-24 Tg0861-PM-MD

SDS OUT 2

YA-Axis Stationary Position

Stopper Forward Movement

YA-Axis Stationary Position

Stopper Backward Movement

Component Discharge

Conveyor A

Driving (Option)

Reversed

Component Discharge

Conveyor A

Driving (Option)

C (A) Block
