Section5 Electrical Circuit Diagram I/O Board 1-3 0305-001- (M805WBB--0003) 5-13 Tg0861-PM-MD LA1-Axis V accum/Blow LA2-Axis V accum/Blow LA1-Axis and LA2-Axis Source Blow Pressure Open/Close LA1-Axis V accum Sensor Refe…
Section5 Electrical Circuit Diagram
I/O Board 1-2
0305-001A (M805WBB--0002) 5-12 Tg0861-PM-MD
[ ]
[ ]
LB1-Axis Vaccum
Sensor
LB1-Axis U/D Level
Measurement
LB2-Axis Vaccum
Sensor
LB2-Axis U/D Level
Measurement
Bad Mark Sensor B
(option)
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Lifted Feeder Detection
A1
Lifted Feeder Detection
B1
Beam B Safety Relay ON
Beam A Safety Relay ON
24V Load Power
Supply ON
MB (B) Block
MC (B)
Block
LB1-Axis Vaccum
Sensor Reference
LB2-Axis Vaccum
Sensor Reference
Note:
The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).
Section5 Electrical Circuit Diagram
I/O Board 1-3
0305-001- (M805WBB--0003) 5-13 Tg0861-PM-MD
LA1-Axis Vaccum/Blow
LA2-Axis Vaccum/Blow
LA1-Axis and LA2-Axis
Source Blow Pressure
Open/Close
LA1-Axis Vaccum
Sensor Reference
LA2-Axis Vaccum
Sensor Reference
Safety Cover
Electromagnetic Lock A
Supply Cover
Electromagnetic Lock A
Reserved
LB1-Axis Vaccum/Blow
LB2-Axis Vaccum/Blow
LB1-Axis and LA2-Axis
Source Blow Pressure
Open/Close
LB1-Axis Vaccum
Sensor Reference
LB2-Axis Vaccum
Sensor Reference
Safety Cover
Electromagnetic Lock B
Supply Cover
Electromagnetic Lock B
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
LA1-Axis Vaccum
Sensor Reference
LA2-Axis Vaccum
Sensor Reference
LB1-Axis Vaccum
Sensor Reference
LB2-Axis Vaccum
Sensor Reference
MB (A) Block
G Block
C (B) Block
MB (B) Block
MC (B) Block
MC (A) Block
G Block
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved

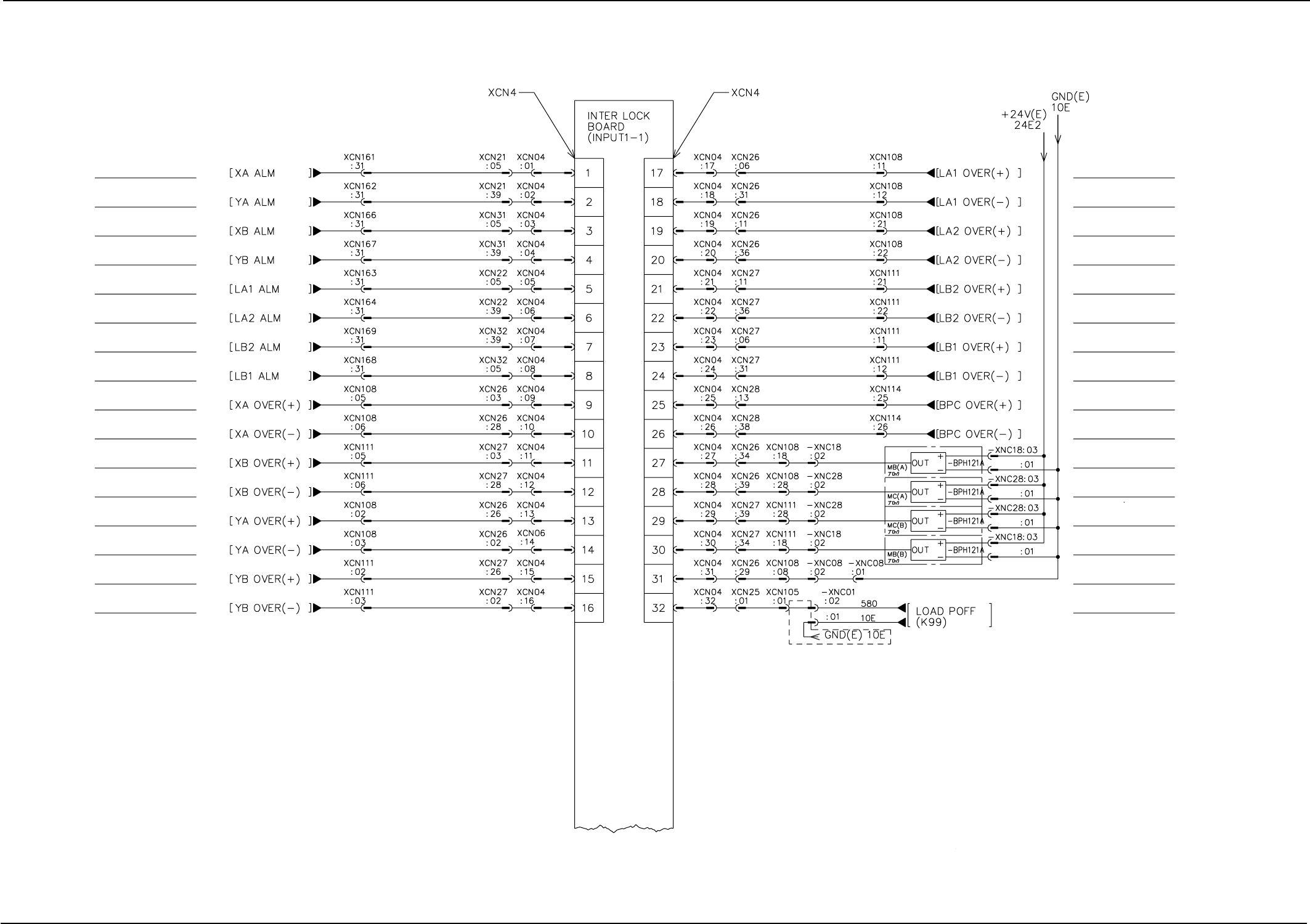

Section5 Electrical Circuit Diagram
Interlock Board IN 1-1
0305-001A (M805WBB--0004) 5-14 Tg0861-PM-MD
XA-Axis Alarm
YA-Axis Alarm
XB-Axis Alarm
YB-Axis Alarm
LA1-Axis Alarm
LA2-Axis Alarm
LB2-Axis Alarm
LB1-Axis Alarm
XA-Axis Limit (+)
XA-Axis Limit (-)
XB-Axis Limit (+)
XB-Axis Limit (-)
YA-Axis Limit (+)
YA-Axis Limit (-)
YB-Axis Limit (+)
YB-Axis Limit (-)
Note:
The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).
LA1-Axis Limit (+)
LA1-Axis Limit (-)
LA2-Axis Limit (+)
LA2-Axis Limit (-)
LB2-Axis Limit (+)
LB2-Axis Limit (-)
LB1-Axis Limit (+)
LB1-Axis Limit (-)
BPC-Axis Limit (+)
BPC-Axis Limit (-)
LA1-Axis Nozzle
Excessive Pushing Detection
LA2-Axis Nozzle
Excessive Pushing Detection
LB2-Axis Nozzle
Excessive Pushing Detection
LB1-Axis Nozzle
Excessive Pushing Detection
Beam Emergency Stop 1
(PAUSE)
Load Power Supply
Shut-Off Detection
