Section 5 Electrical Circuit Diagram Tg0861-PM-MD Conveyor Motor Circuit Diagram 0305-001-(M805WBK--0001) 5-50 LOW HIGH RUN/STOP Blue Blue R conveyor White Red Black LOW HIGH RUN/STOP Blue Blue White Red Black HIGH LOW R…
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Driver B Sensor Circuit Diagram
0305-001-(M805WBH--0006) 5-49
XB,YB-Axis
Power ON
Beam B
X/Y Power
BG Block
BM Block
BD Block
BE Block
Maintenance Opening
Section Detection B
(Upper Side)
Maintenance Opening
Section Detection B
(Lower Side)
YB-Axis Stationary
Position Stopper
Forward Limit
YB-Axis Stationary
Position Stopper
Backward Limit
Supply Cover
Electromagnetic Lock B
Safty Bar Electromagnetic Lock B1
Safty Bar Electromagnetic Lock B2
G Block
C (B) Block
G Block
Beam B Circuit
Breaker OFF
XB-/YB-Axis Main
Power Supply
ON Lamp
Note: The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).
from
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Conveyor Motor Circuit Diagram
0305-001-(M805WBK--0001) 5-50
LOW
HIGH
RUN/STOP
Blue
Blue
R conveyor
White
Red
Black
LOW
HIGH
RUN/STOP
Blue
Blue
White
Red
Black
HIGH
LOW
RUN/STOP
Blue
Blue
White
Red
Black
L conveyor
P conveyor

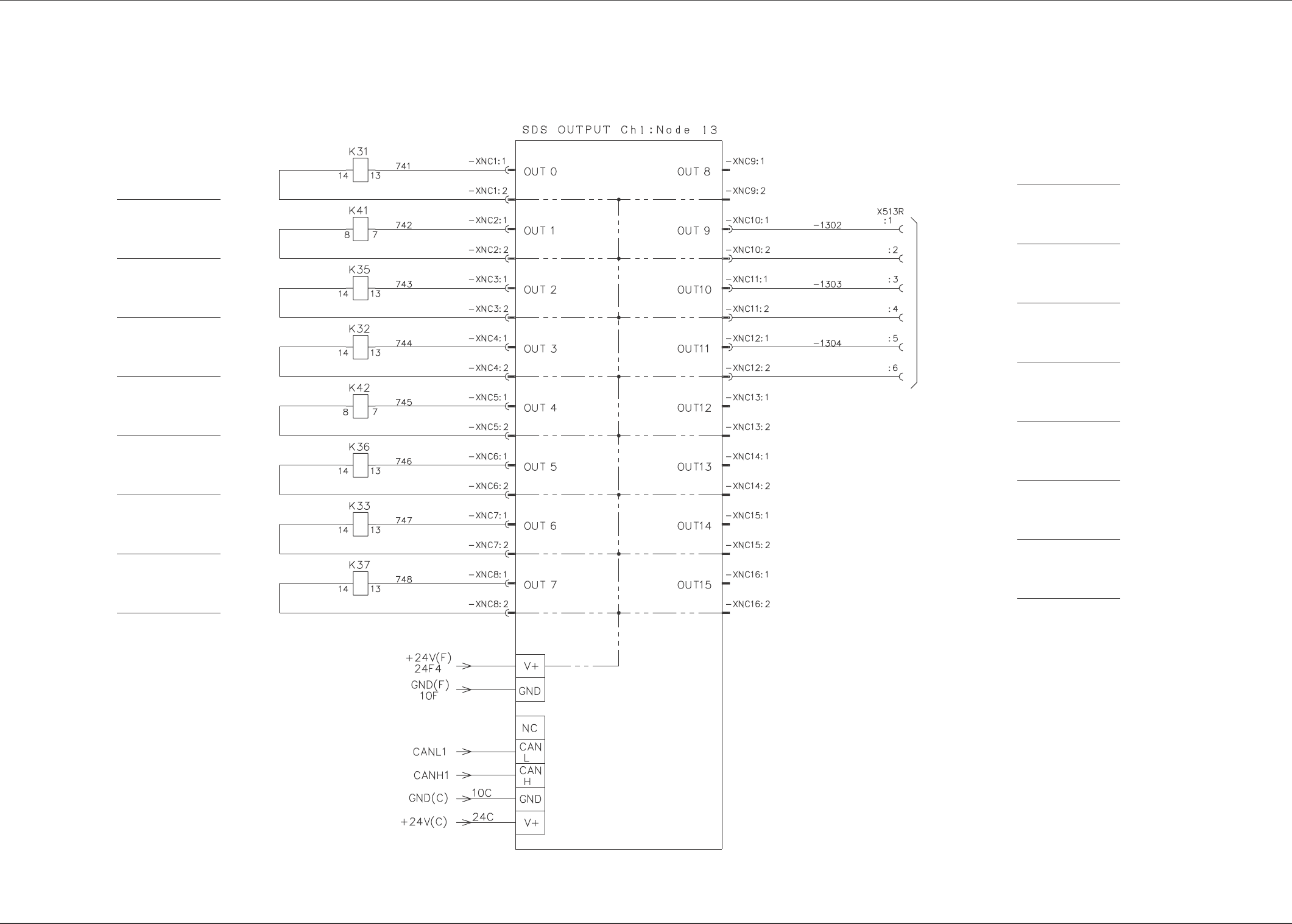

Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Conveyor SDS OUT
0305-001-(M805WBK--0002) 5-51
Reserved
Reserved
Reserved
Reserved
Reserved
Extended ER Conveyor
Stopper Ascending (Option)
Extended ER Conveyor
Transfer Motor Normal Rotation
(Option)
Extended ER Conveyor
Transfer Motor Reverse Rotation
(Option)
To Extended ER
Conveyor
(Option)
Transfer L Motor ON/OFF
Transfer L/R Motor Normal/
Reverse Rotaion
Transfer L Motor Speed Change
Transfer P Motor ON/OFF
Transfer P Motor Normal/
Reverse Rotaion
Transfer P Motor Speed Change
Transfer R Motor ON/OFF
Transfer R Motor Speed Change
