Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Driver B Power Supply Circuit 1
0305-001-(M805WBH--0004) 5-47
BE Block
Main Circuit
Power Supply
YB Axis
Control Circuit
Power Supply
EV-L, EV-R Axis
Control Circuit
Power Supply
YB Axis
Main Circuit
Power Supply
XB Axis
Control Circuit
Power Supply
XB Axis
Main Circuit
Power Supply
LB2 Axis
Control Circuit
Power Supply
LB2 Axis
Main Circuit
Power Supply
LB1 Axis
Control Circuit
Power Supply
LB1 Axis
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Driver B Power Supply Circuit 2
0305-001-(M805WBH--0005) 5-48
BG Block
BG Block
Supply Cover Maintenance
Cover B
Maintenance
Cover A
Mechanical
Stopper Backward
Movement
Beam A Safety
Relay ON
G Block
G Block
Interlocked
with Supply
Cover
[INTLK/BYPASS] Switch
Interlock/Bypass Mode
[OPERATION/SET UP]
Swith (Rear Side) A
Safety Bar A
Note :
Beam B X/Y Axis
Motor Power Supply
Beam B Feeder
Motor Power Supply
BG Block
BG Block
BE Block
Beam B X/Y Axis
Main Circuit
Power Supply
Beam B Feeder
Motor Power Supply
The areas surrounded by the dashed line belong to relay P.C.B. (UA18 & UA19).
BE Block
Safty Bar 1
Safty Bar 2
(For SQ504 Connection)

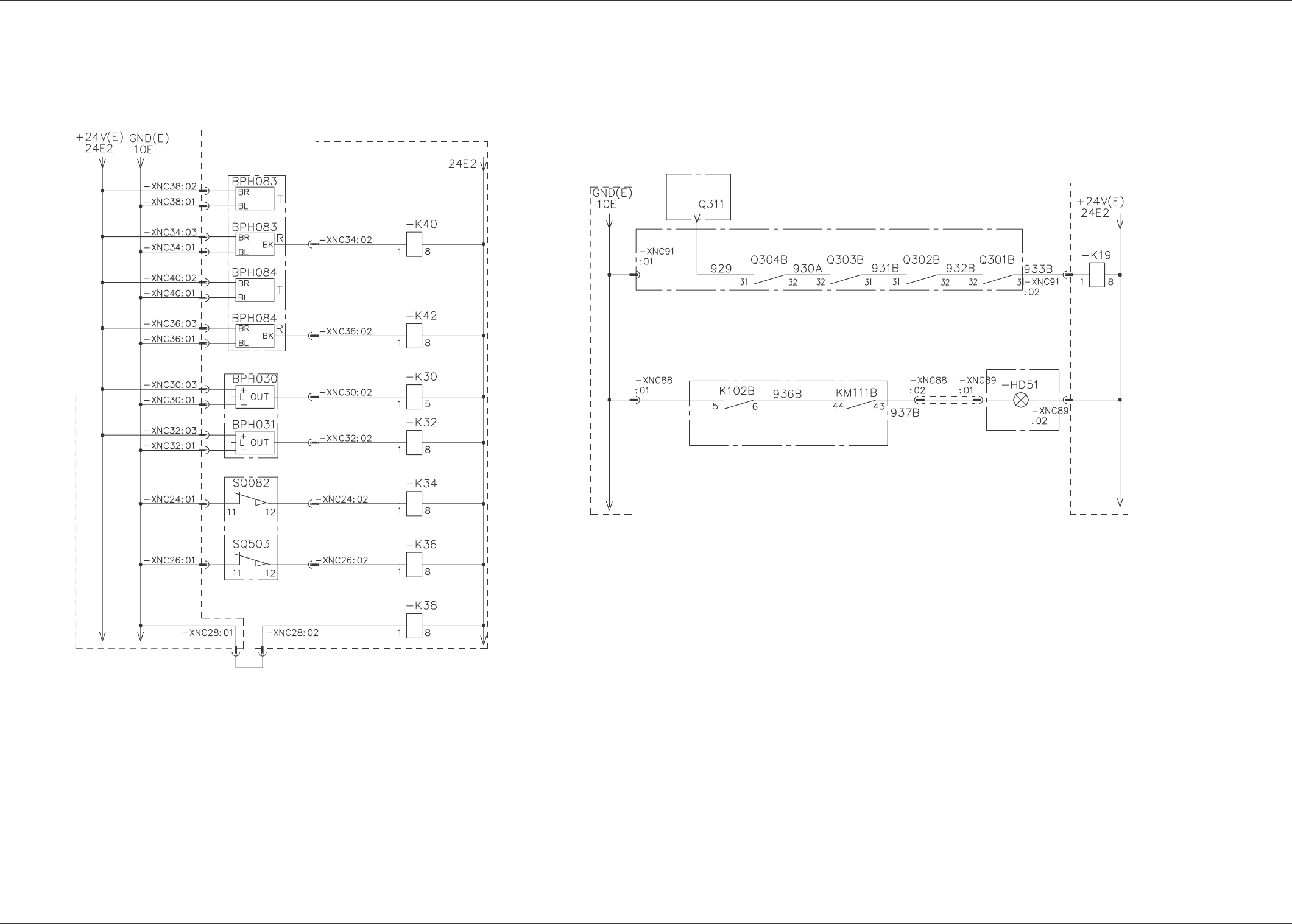

Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Driver B Sensor Circuit Diagram
0305-001-(M805WBH--0006) 5-49
XB,YB-Axis
Power ON
Beam B
X/Y Power
BG Block
BM Block
BD Block
BE Block
Maintenance Opening
Section Detection B
(Upper Side)
Maintenance Opening
Section Detection B
(Lower Side)
YB-Axis Stationary
Position Stopper
Forward Limit
YB-Axis Stationary
Position Stopper
Backward Limit
Supply Cover
Electromagnetic Lock B
Safty Bar Electromagnetic Lock B1
Safty Bar Electromagnetic Lock B2
G Block
C (B) Block
G Block
Beam B Circuit
Breaker OFF
XB-/YB-Axis Main
Power Supply
ON Lamp
Note: The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).
