Tg0861-PM-MD 2.3 Examples of Device Information Note: The ♦ -marked items are optional. (1) Decreasing of Component Handling Rate (For Nozzle) (2) Decreasing of Component Handling Rate (For Feeder) (3) Alternated Feeder …
Tg0861-PM-MD0305-001 3-5
2.2 List of Device Information Messages
Table 5C2
Items A Device Information Messages B Remarks
05H CLOSE THE COMPONENT SUPPLY
COVER [A] (BACK SIDE) AND PRESS
THE [READY [A]] BUTTON TO SET
FEEDER [A] IN READY MODE.
06H CLOSE THE SAFETY BAR [A] (BACK
SIDE) AND PRESS THE [READY [A]]
BUTTON TO SET FEEDER [A] IN
READY MODE.
07H CLOSE THE COMPONENT SUPPLY
COVER [B] (FRONT SIDE) AND PRESS
THE [READY [B]] BUTTON TO SET
FEEDER [B] IN READY MODE.
08H CLOSE THE SAFETY BAR [B] (FRONT
SIDE) AND PRESS THE [READY [B]]
BUTTON TO SET FEEDER [B] IN
READY MODE.
09H REMOVE COMPONENT IN
COMPONENT REJECT BOX-A (BACK
SIDE) AND PRESS THE
READY [A]] BUTTON TO SET
FEEDER [A] IN READY MODE.
0BH OPERATE
INFORMATION
0AH REMOVE COMPONENT IN
COMPONENT REJECT BOX-B
(FRONT SIDE) AND PRESS THE
[READY [B]] BUTTON TO SET
FEEDER [B] IN READY MODE.
01H COMPONENT CARRIAGE DATA
EDIT: [X DIR.]
→
OFF
0CH AUTOMATIC FEEDER
AXIS ADJUSTMENT
LIMIT SOFT
02H COMPONENT CARRIAGE DATA
EDIT: [Y DIR.]
→
OFF
Tg0861-PM-MD
2.3 Examples of Device Information
Note: The ♦-marked items are optional.
(1) Decreasing of Component Handling Rate (For Nozzle)
(2) Decreasing of Component Handling Rate (For Feeder)
(3) Alternated Feeder
♦
♦
0305-001 3-6
2.3 Examples of Device Information
Fig. 5C6
Fig. 5C7
Fig. 5C8
Tg0861-PM-MD

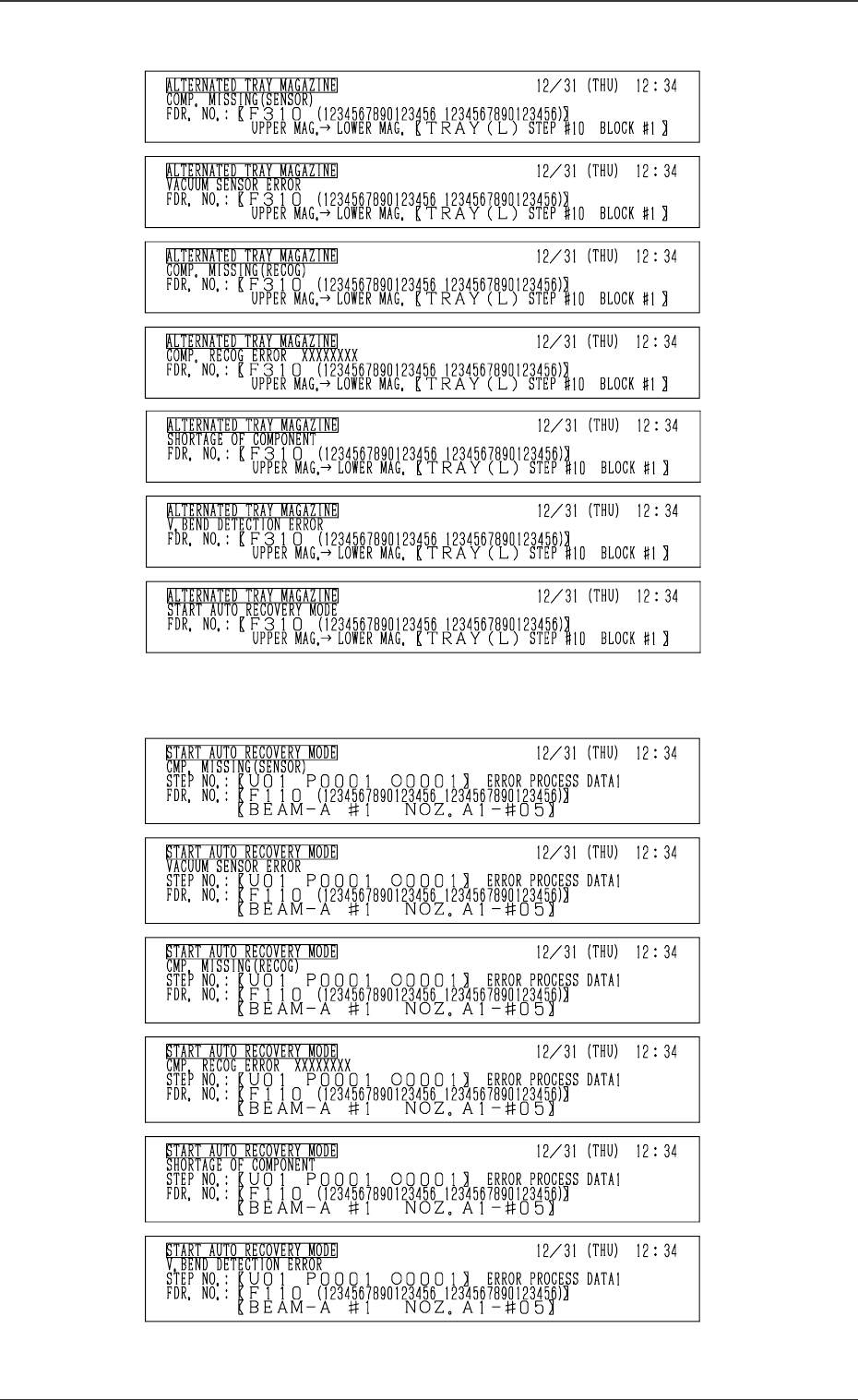

(4) Alternate Tray Magazine
(5) Automatic Recovery Mode
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
0305-001 3-7
2.3 Examples of Device Information
Fig. 5C9
Fig. 5C10
