Section 5 Electrical Circuit Diagram Tg0861-PM-MD T ray Control Board 5-2 0305-001-(M805WTT--0003) 5-82 C Axis D Axis Case
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Tray Control Board 5-1
0305-001-(M805WTT--0002) 5-81
Traverse 1 Origin
Traverse 1 Limit
Traverse 1 Limit
Traverse 1
Stepping Motor
Relay Board
A Axis
B Axis
Relay Board
Board Top
Traverse Collision
Detection
BJ Block
Traverse 1 Clamp
Area Check B
Traverse 1
Pass Line
Interlock
Traverse 1
Pass Line
Interlock 2
Traverse 2 Origin
Traverse 2 Limit (+)
Traverse 2 Limit (-)
Traverse 2
Stepping Motor
Traverse 2 Clamp
Area Check B
Traverse 2
Pass Line
Interlock
Traverse 2
Pass Line
Interlock 2
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Tray Control Board 5-2
0305-001-(M805WTT--0003) 5-82
C Axis
D Axis
Case

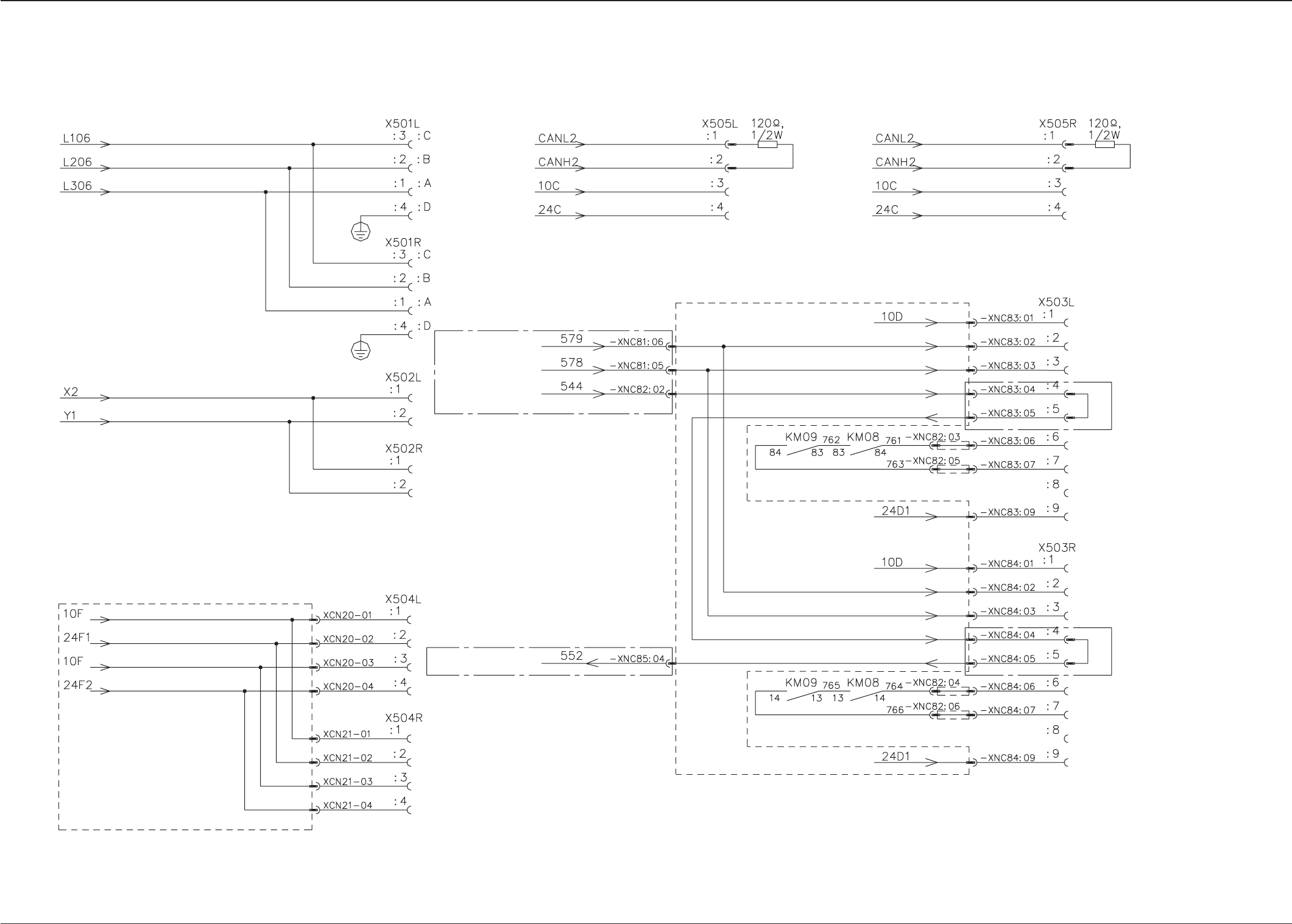

Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Tray Connection Section
0305-001-(M805WTT--0006) 5-83
Power Supply for Tray Feeder
Emergency Stop
Refer to the safety circuit
Emergency Stop
Refer to the safety circuit
Emergency Stop
Refer to the safety circuit
(From K99)
(From K99)
(From the KM09
suxiliary contacts)
(To the KM31 auxil-
iary contacts)
To Tray Feeder L (Option)
To Tray Feeder R (Option)
Note:
The areas surrounder by the dashed line belong to the relay P.C.B. (UA18 & UA19).
Emergency Stop
Refer to the safety circuit
