5OM-1011-002.pdf - 第63页
Section5 Electrical Circuit Diagram 0305-001- (M805WBB--0010) 5-20 Tg0861-PM-MD SDS IN 3 B (A) Block F (A1) Block T o Component Discharge Conveyor A (Option) *T o the right side of the figure [MANUAL] Switch A (Option) T…

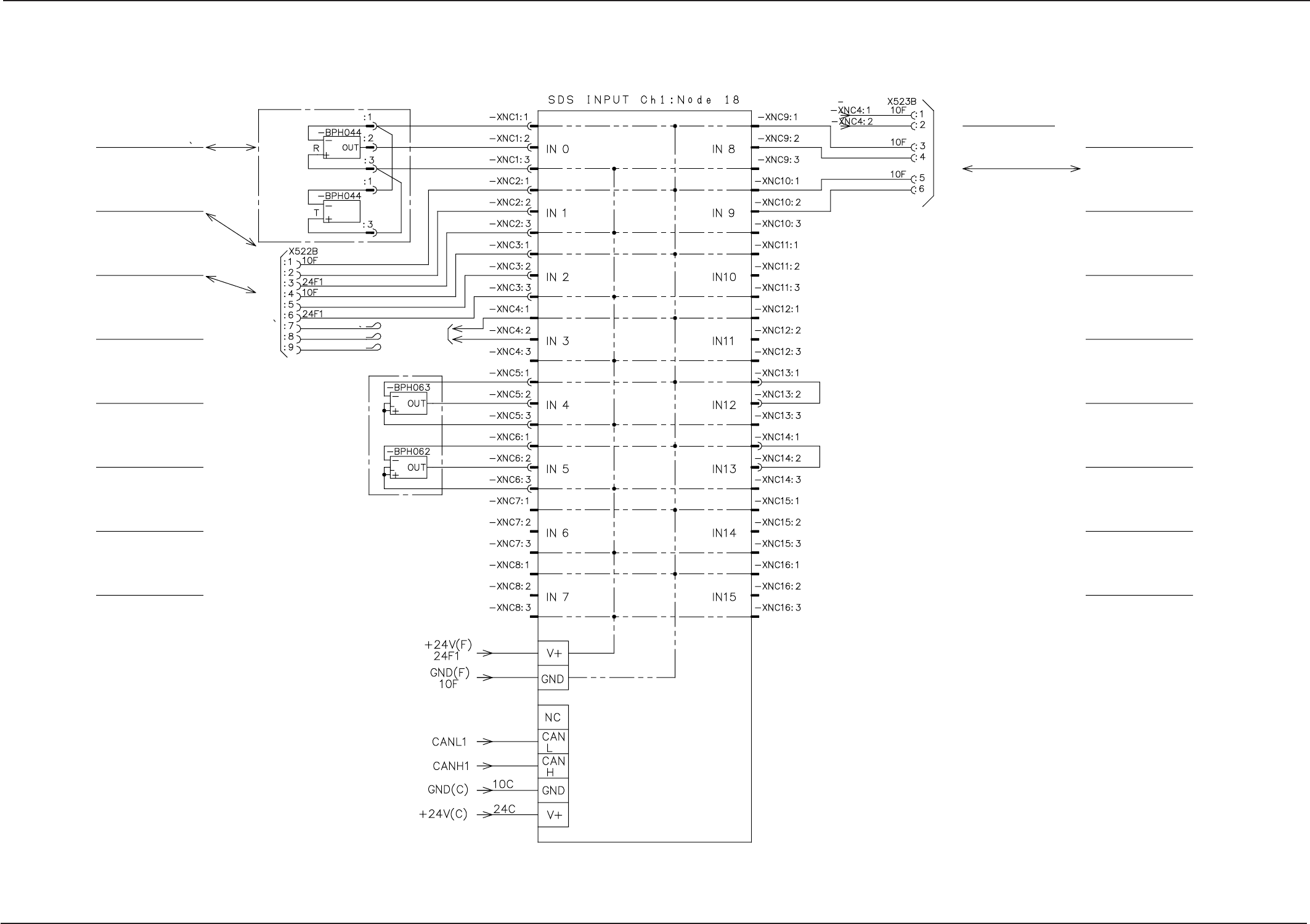

Section5 Electrical Circuit Diagram
0305-001- (M805WBB--0009) 5-19 Tg0861-PM-MD
SDS IN 2
Option
Reserved
Reserved
Reserved
Reserved
P.C.B. Clamp Detection
Fixed Side (Option)
Extended ER Conveyor
Exitence Detection
(Option)
Extended ER Conveyor
P.C.B. Detection R
(Option)
Extended ER Conveyor
P.C.B. Detection L
(Option)
N Block (option)
To the Extended ER
conveyor (option)
R Conveyor
P.C.B. Detection R
R Conveyor
P.C.B. Detection C
R Conveyor
P.C.B. Detection L
P Conveyor
P.C.B. Detection R
P.C.B. Stopper R Upper
Limit
P.C.B. Stopper R Lower
Limit
P.C.B. Support pin
Detection
(Rear Reference)
P.C.B. Clamp Detection
(Option)
N Block
Section5 Electrical Circuit Diagram
0305-001- (M805WBB--0010) 5-20 Tg0861-PM-MD
SDS IN 3
B (A) Block
F (A1) Block
To Component Discharge
Conveyor A (Option)
*To the right
side of the
figure
[MANUAL] Switch A
(Option)
To Component Discharge
Conveyor A (Option)
*From the left side
of the figure
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Component Discharge
Conveyor A
Type Code 1 (Option)
Component Discharge
Conveyor A
Type Code 2 (Option)
Component Discharge Box A
Full Detection
Component Discharge Conveyor A
Full Detection (Option)
Component Discharge Conveyor A
Discharge Position Detection
(Option)
[MANUAL] Switch A
(Option)
Nozzle Stocker A1
Open Check
Nozzle Stocker A1
Close Check
Nozzle Stocker A2 Open
Check (option)
Nozzle Stocker A2 Open
Open (option)
Section5 Electrical Circuit Diagram
0305-001- (M805WBB--0011) 5-21 Tg0861-PM-MD
SDS IN 4
Component Discharge Box B
Full Detection
Component Discharge Box B
Full Detection (Option)
Component Discharge Box B
Discharge Position Detection
(Option)
[MANUAL] Switch B
(Option)
Nozzle Stocker B1
Open Check
Nozzle Stocker B1
Close Check
B (B) Block
F (B1) Block
To Component Discharge
Conveyor B (Option)
*To the right
side of the
figure
[MANUAL] Switch B
(Option)
To Component Discharge
Conveyor B (Option)
*From the left side
of the figure
Reserved
Reserved
Reserved
Reserved
Component Discharge
Conveyor B
Component Discharge
Conveyor B
Tray 1-inch Detection
Feeder Base Surge Detection
