Section 5 Electrical Circuit Diagram Tg0861-PM-MD Driver B Sensor Circuit Diagram 0305-001-(M805WBH--0006) 5-49 XB,YB-Axis Power ON Beam B X/Y Power BG Block BM Block BD Block BE Block Maintenance Opening Section Detecti…
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Driver B Power Supply Circuit 2
0305-001-(M805WBH--0005) 5-48
BG Block
BG Block
Supply Cover Maintenance
Cover B
Maintenance
Cover A
Mechanical
Stopper Backward
Movement
Beam A Safety
Relay ON
G Block
G Block
Interlocked
with Supply
Cover
[INTLK/BYPASS] Switch
Interlock/Bypass Mode
[OPERATION/SET UP]
Swith (Rear Side) A
Safety Bar A
Note :
Beam B X/Y Axis
Motor Power Supply
Beam B Feeder
Motor Power Supply
BG Block
BG Block
BE Block
Beam B X/Y Axis
Main Circuit
Power Supply
Beam B Feeder
Motor Power Supply
The areas surrounded by the dashed line belong to relay P.C.B. (UA18 & UA19).
BE Block
Safty Bar 1
Safty Bar 2
(For SQ504 Connection)
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Driver B Sensor Circuit Diagram
0305-001-(M805WBH--0006) 5-49
XB,YB-Axis
Power ON
Beam B
X/Y Power
BG Block
BM Block
BD Block
BE Block
Maintenance Opening
Section Detection B
(Upper Side)
Maintenance Opening
Section Detection B
(Lower Side)
YB-Axis Stationary
Position Stopper
Forward Limit
YB-Axis Stationary
Position Stopper
Backward Limit
Supply Cover
Electromagnetic Lock B
Safty Bar Electromagnetic Lock B1
Safty Bar Electromagnetic Lock B2
G Block
C (B) Block
G Block
Beam B Circuit
Breaker OFF
XB-/YB-Axis Main
Power Supply
ON Lamp
Note: The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).
from
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD

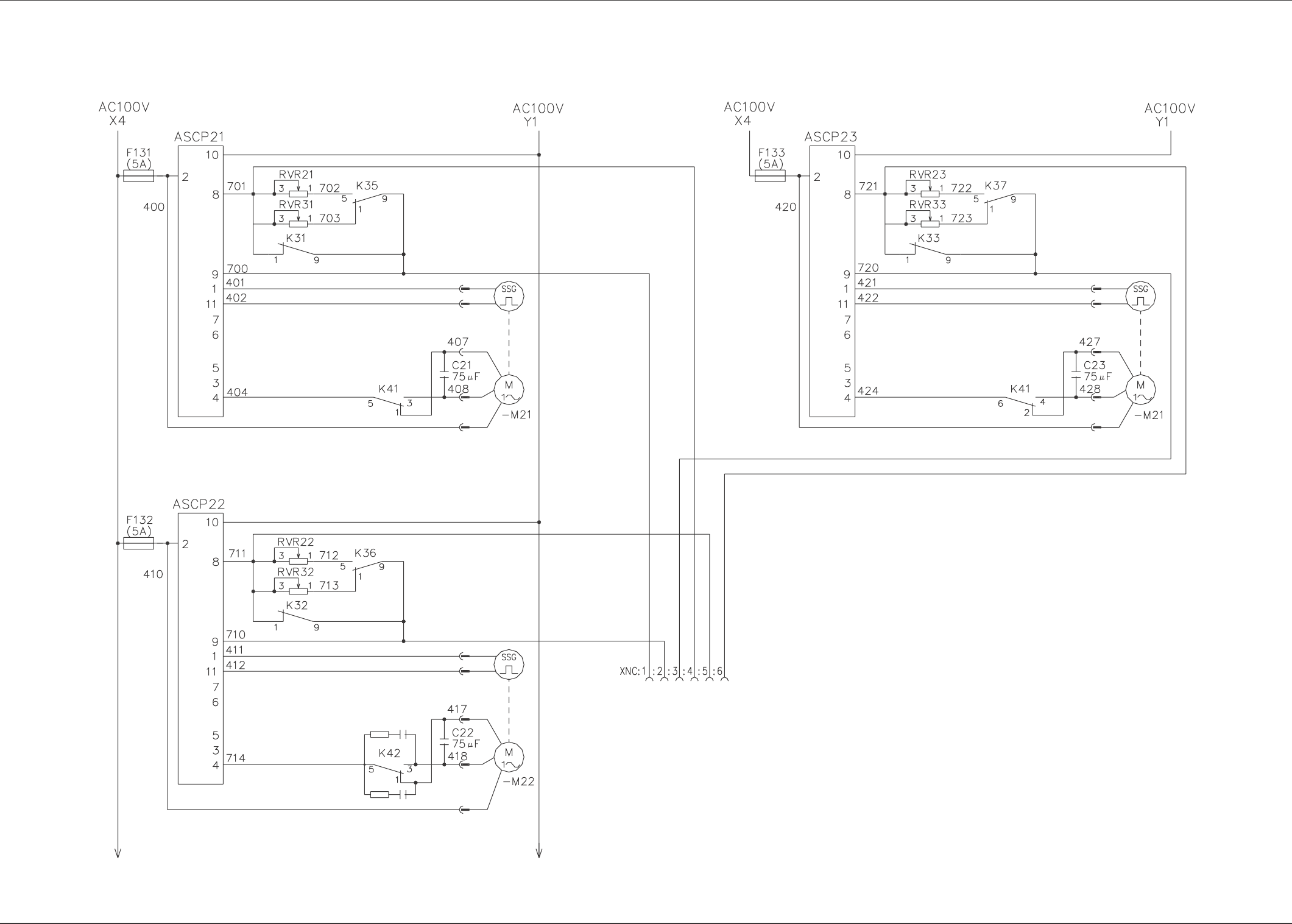

Conveyor Motor Circuit Diagram
0305-001-(M805WBK--0001) 5-50
LOW
HIGH
RUN/STOP
Blue
Blue
R conveyor
White
Red
Black
LOW
HIGH
RUN/STOP
Blue
Blue
White
Red
Black
HIGH
LOW
RUN/STOP
Blue
Blue
White
Red
Black
L conveyor
P conveyor
