Section 6 Location of Sensors and Loads Tg0861-PM-MD Layout of Sensors and Loads for Feeder A 0305-001-(M805YQD--0001) 6-12 Feeder Base A1 Feeder Base A2 Symbol Name -BPH201 T ape Feed (A1, A2) Axis Origin -YSV101 -YSV10…
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads for Tray Traverse
0305-001-(M805YTT--0001) 6-1 1
(BPH276 Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(BPH278 Light Projecting Side)
(BPH274 Light Projecting Side)
(BPH275 Light Projecting Side)
(BPH279 Light Projecting Side)
(BPH276 Light Projecting Side)
(Amplifier)
Side B (Front)
Symbol Name
BPH250 Traverse 1 Clamp Area Check B
BPH251
BPH252
BPH253
Traverse 1 Origin
Traverse 1 Limit (+)
Traverse 1 Limit (-)
BPH255
BPH257
BPH254
Traverse 2 Clamp Area Check B
BPH256 Traverse 2 Limit (+)
Traverse 2 Origin
Traverse 2 Limit (-)
BPH261
Traverse 1 Lever B Origin
BPH262
Traverse 2 Middle Origin
BPH264
Traverse 2 Lever A Origin
BPH265
Traverse 2 Lever B Origin
BPH266
Chute Pallet Check 1 (Upper)
BPH267
Chute Pallet Check 2 (Upper)
BPH268
Chute Pallet Check 3 (Upper)
BPH269
Chute Pallet Check 4 (Upper)
BPH270
Chute Pallet Check 1 (Lower)
BPH271
Chute Pallet Check 2 (Lower)
BPH272
Chute Pallet Check 3 (Lower)
BPH273
Chute Pallet Check 4 (Lower)
BPH274
Traverse 1 Pass Line Interlock
BPH275
Traverse 2 Pass Line Interlock
BPH276
Traverse Collision Detection
BPH278
Traverse 1 Pass Line Interlock 2
BPH279
Traverse 2 Pass Line Interlock 2
MPM250
Traverse 1 Stepping Motor
MPM251
Traverse 2 Stepping Motor
BPH263
Traverse 2 Clamp Area Check A
BPH258
Traverse 1 Middle Origin
BPH259
Traverse 1 Clamp Area Check A
BPH260
Traverse 1 Lever A Origin
Section 6 Location of Sensors and Loads
Tg0861-PM-MD

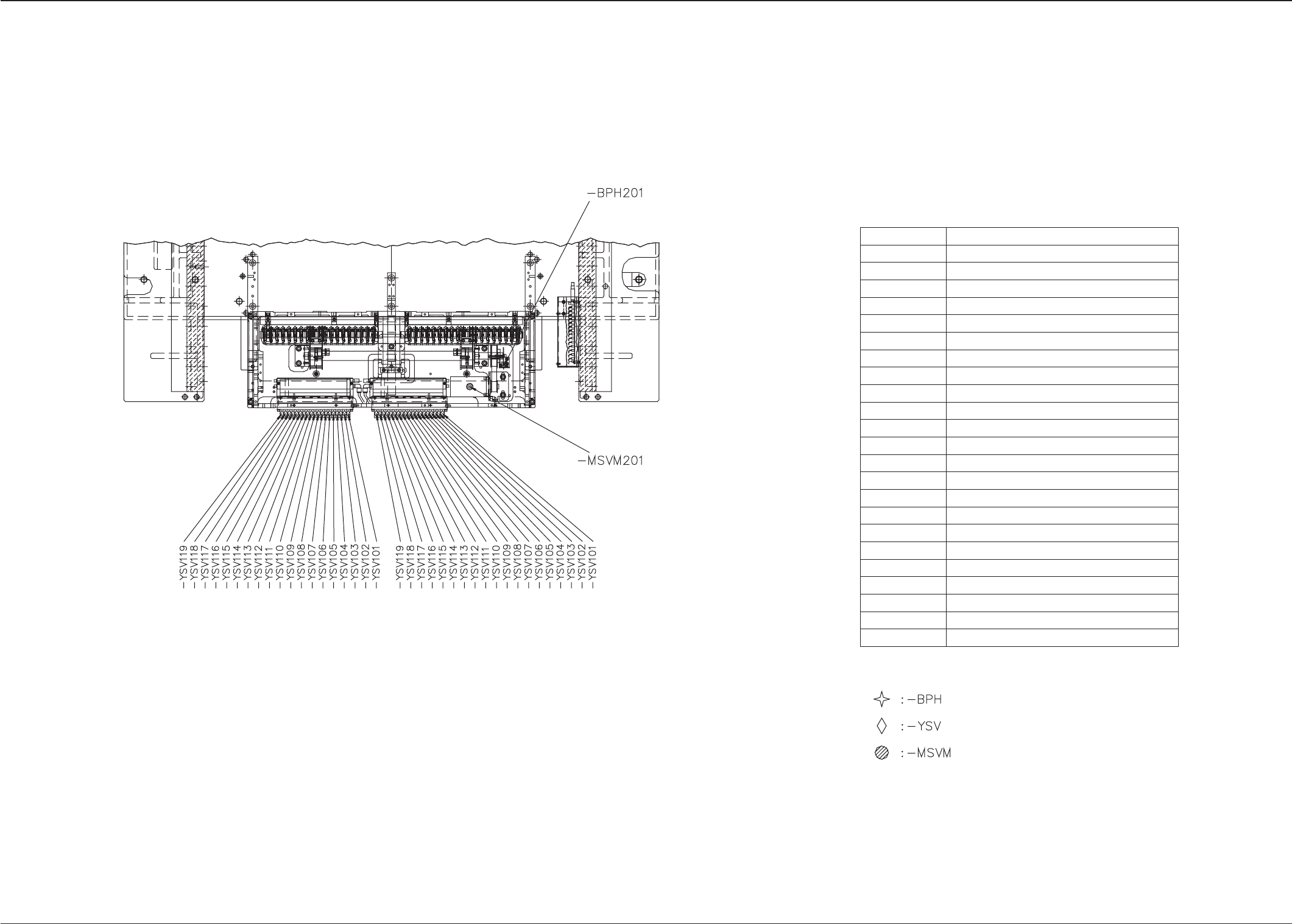

Layout of Sensors and Loads for Feeder A
0305-001-(M805YQD--0001) 6-12
Feeder Base A1 Feeder Base A2
Symbol Name
-BPH201 Tape Feed (A1, A2) Axis Origin
-YSV101
-YSV102
Tape Feed 1 (A1, A2)
Tape Feed 2 (A1, A2)
-YSV104
-YSV106
-YSV103
-YSV115
Tape Feed 4 (A1, A2)
-YSV105 Tape Feed 5 (A1, A2)
Tape Feed 3 (A1, A2)
Tape Feed 6 (A1, A2)
-YSV110
Tape Feed 10 (A1, A2)
-YSV111
Tape Feed 11 (A1, A2)
-YSV113
Tape Feed 13 (A1, A2)
-YSV114
Tape Feed 14 (A1, A2)
-YSV112
Tape Feed 12 (A1, A2)
-YSV107
Tape Feed 7 (A1, A2)
-YSV108
Tape Feed 8 (A1, A2)
-YSV109
Tape Feed 9 (A1, A2)
Tape Feed 15 (A1, A2)
-YSV117 Tape Feed 17 (A1, A2)
-YSV118 Tape Feed 18 (A1, A2)
-YSV119 Tape Feed 19 (A1, A2)
-YSV116 Tape Feed 16 (A1, A2)
-MSVM201 TF (A1, A2) Axis Servo Motor
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads for Feeder B
0305-001-(M805YQD--0002) 6-13
Feeder Base B2 Feeder Base B1
Symbol Name
-BPH201 Tape Feed (B1, B2) Axis Origin
-YSV101
-YSV102
Tape Feed 1 (B1, B2)
Tape Feed 2 (B1, B2)
-YSV104
-YSV106
-YSV103
-YSV115
Tape Feed 4 (B1, B2)
-YSV105 Tape Feed 5 (B1, B2)
Tape Feed 3 (B1, B2)
Tape Feed 6 (B1, B2)
-YSV110
Tape Feed 10 (B1, B2)
-YSV111
Tape Feed 11 (B1, B2)
-YSV113
Tape Feed 13 (B1, B2)
-YSV114
Tape Feed 14 (B1, B2)
-YSV112
Tape Feed 12 (B1, B2)
-YSV107
Tape Feed 7 (B1, B2)
-YSV108
Tape Feed 8 (B1, B2)
-YSV109
Tape Feed 9 (B1, B2)
Tape Feed 15 (B1, B2)
-YSV117 Tape Feed 17 (B1, B2)
-YSV118 Tape Feed 18 (B1, B2)
-YSV119 Tape Feed 19 (B1, B2)
-YSV116 Tape Feed 16 (B1, B2)
-MSVM201 TF (B1, B2) Axis Servo Motor
