Section 5 Electrical Circuit Diagram Tg0861-PM-MD PWC Control Board 3-2 0305-001-(M805WBL--0001) 5-52 PWC-Axis Limit (+) PWC-Axis Limit (-) PWC-Axis Slide Origin N Block PWC-Axis Pulse Motor B-Axis

Section 5 Electrical Circuit Diagram

Tg0861-PM-MD

Conveyor SDS OUT

0305-001-(M805WBK--0002) 5-51

Reserved

Extended ER Conveyor

Stopper Ascending (Option)

Extended ER Conveyor

Transfer Motor Normal Rotation

(Option)

Extended ER Conveyor

Transfer Motor Reverse Rotation

(Option)

To Extended ER

Conveyor

(Option)

Transfer L Motor ON/OFF

Transfer L/R Motor Normal/

Reverse Rotaion

Transfer L Motor Speed Change

Transfer P Motor ON/OFF

Transfer P Motor Normal/

Reverse Rotaion

Transfer P Motor Speed Change

Transfer R Motor ON/OFF

Transfer R Motor Speed Change

Section 5 Electrical Circuit Diagram

Tg0861-PM-MD

PWC Control Board 3-2

0305-001-(M805WBL--0001) 5-52

PWC-Axis Limit (+)

PWC-Axis Limit (-)

PWC-Axis Slide Origin

N Block

PWC-Axis Pulse Motor

B-Axis

Section 5 Electrical Circuit Diagram

Tg0861-PM-MD

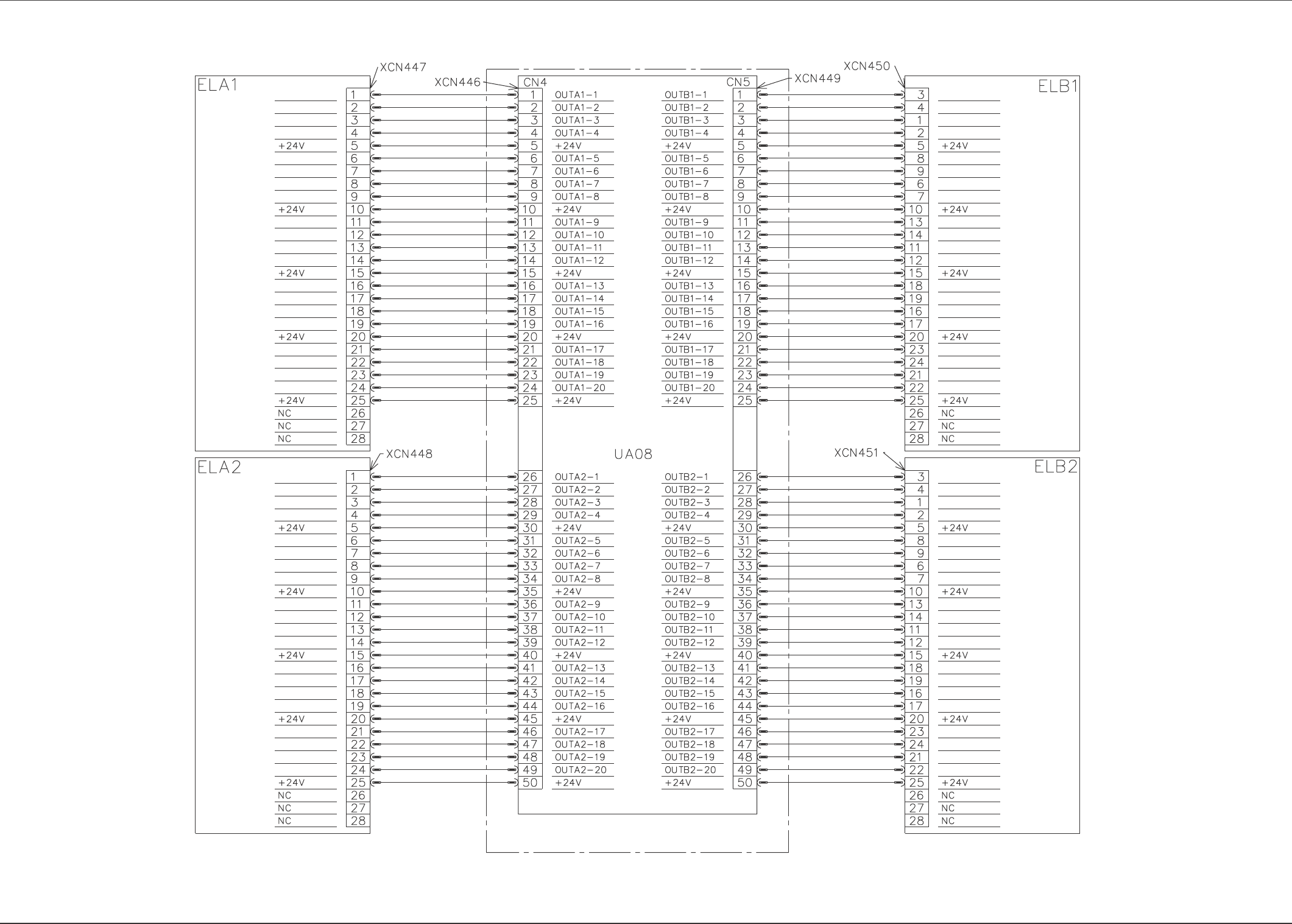

LED Lighting Control Board Connection Diagram 1

0305-001-(M805WBL--0002) 5-53

Componet Recogition

Lighting A (Right)

Component Recognition

Lighting B (Right)

Component Recognition

Lighting B (Left)

Front Lighting Upper Stage (Rear)

Front Lighting Upper Stage (Left)

Front Lighting Upper Stage (Front)

Front Lighting Upper Stage (Right)

Front Lighting Middle Stage (Rear)

Front Lighting Middle Stage (Left)

Front Lighting Middle Stage (Front)

Front Lighting Middle Stage (Right)

Front Lighting Lower Stage (Rear)

Front Lighting Lower Stage (Left)

Front Lighting Lower Stage (Front)

Front Lighting Lower Stage (Right)

Back Lighting (Rear)

Back Lighting (Left)

Back Lighting (Front)

Back Lighting (Right)

BGA Lighting (Rear)

BGA Lighting (Left)

BGA Lighting (Front)

BGA Lighting (Right)

Front Lighting Upper Stage (Rear)

Front Lighting Upper Stage (Left)

Front Lighting Upper Stage (Front)

Front Lighting Upper Stage (Right)

Front Lighting Middle Stage (Rear)

Front Lighting Middle Stage (Left)

Front Lighting Middle Stage (Front)

Front Lighting Middle Stage (Right)

Front Lighting Lower Stage (Rear)

Front Lighting Lower Stage (Left)

Front Lighting Lower Stage (Front)

Front Lighting Lower Stage (Right)

Back Lighting (Rear)

Back Lighting (Left)

Back Lighting (Front)

Back Lighting (Right)

BGA Lighting (Rear)

BGA Lighting (Left)

BGA Lighting (Front)

BGA Lighting (Right)

Front Lighting Upper Stage (Rear)

Front Lighting Upper Stage (Left)

Front Lighting Upper Stage (Front)

Front Lighting Upper Stage (Right)

Front Lighting Middle Stage (Rear)

Front Lighting Middle Stage (Left)

Front Lighting Middle Stage (Front)

Front Lighting Middle Stage (Right)

Front Lighting Lower Stage (Rear)

Front Lighting Lower Stage (Left)

Front Lighting Lower Stage (Front)

Front Lighting Lower Stage (Right)

Back Lighting (Rear)

Back Lighting (Left)

Back Lighting (Front)

Back Lighting (Right)

BGA Lighting (Rear)

BGA Lighting (Left)

BGA Lighting (Front)

BGA Lighting (Right)

Front Lighting Upper Stage (Rear)

Front Lighting Upper Stage (Left)

Front Lighting Upper Stage (Front)

Front Lighting Upper Stage (Right)

Front Lighting Middle Stage (Rear)

Front Lighting Middle Stage (Left)

Front Lighting Middle Stage (Front)

Front Lighting Middle Stage (Right)

Front Lighting Lower Stage (Rear)

Front Lighting Lower Stage (Left)

Front Lighting Lower Stage (Front)

Front Lighting Lower Stage (Right)

Back Lighting (Rear)

Back Lighting (Left)

Back Lighting (Front)

Back Lighting (Right)

BGA Lighting (Rear)

BGA Lighting (Left)

BGA Lighting (Front)

BGA Lighting (Right)

Component Recogntition

Lighting A (Left)

Conveyor 2 Box

BL Block

LED Lighting Control Board

Note : The positional relation (rear/left/front/right) of the lighting is based on the postition viewed from the front side (Beam B) of the machine.
