Section 5 Electrical Circuit Diagram Tg0861-PM-MD Front and Rear Operation Display Connection Diagram 0305-001-(M805WBM--0001) 5-56 Control Box Control Box Color Graphic Board BC Block BC Block Operation Box A LCD Operat…

Section 5 Electrical Circuit Diagram

Tg0861-PM-MD

Counter Board

0305-001-(M805WBL--0004) 5-55

YA-Axis Slide Origin Sensor

(-BPH021)

YB-Axis Slide Origin Sensor

(-BPH021)

YA-Axis

Slide Origin Input

YB-Axis

Slide Origin Input

Solenoid Counter

Output

Counter Board

Relay Nylon Connector Deleted

Section 5 Electrical Circuit Diagram

Tg0861-PM-MD

Front and Rear Operation Display Connection Diagram

0305-001-(M805WBM--0001) 5-56

Control Box

Color Graphic

Board

BC Block

Operation Box A LCD

Operation Box B LCD

Internal Setting of Board:

Modem Connection (Straight)

Internal Setting of Board:

Modem Connection (Straight)

Serial Port Module

Section 5 Electrical Circuit Diagram

Tg0861-PM-MD

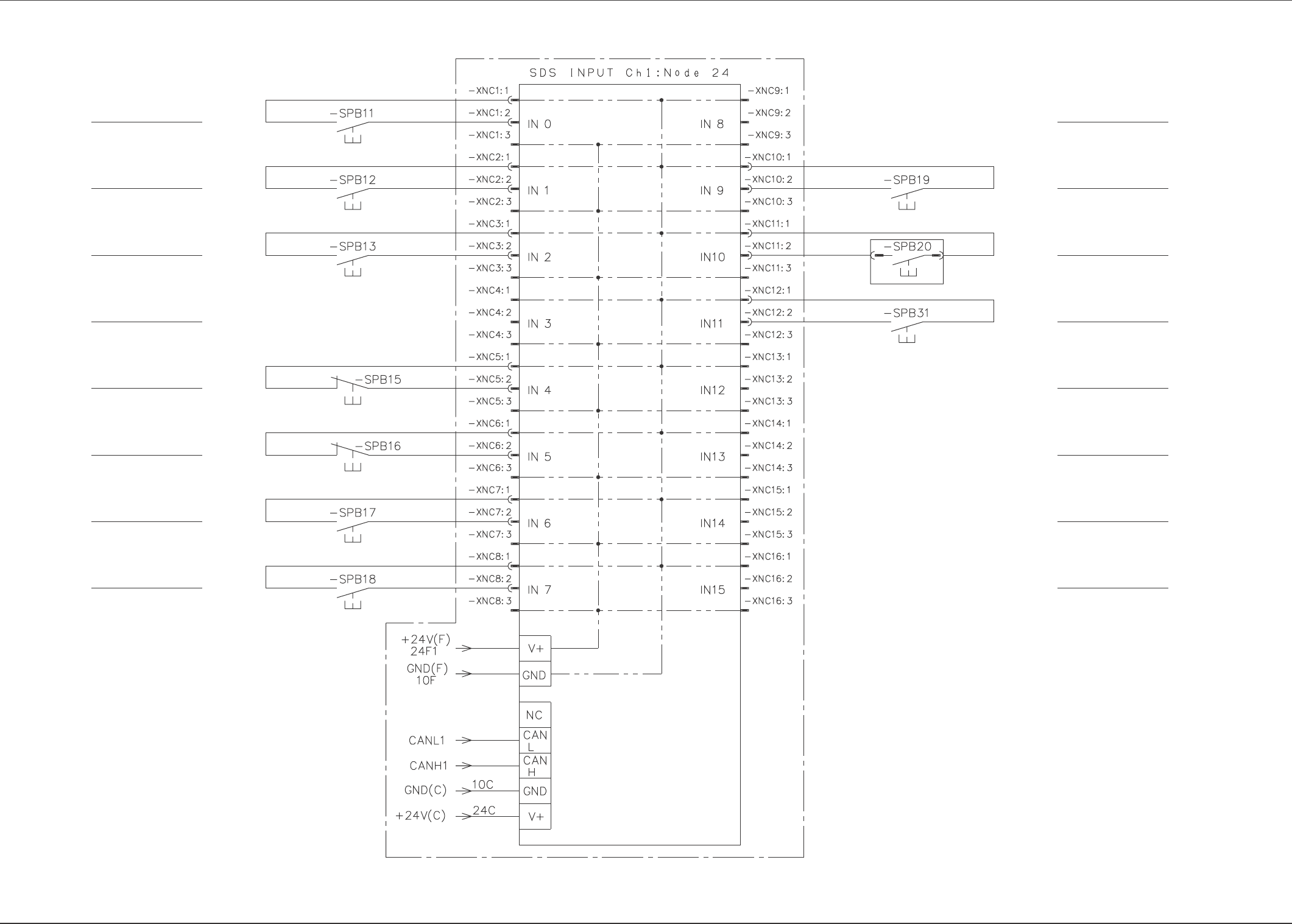

Operation Box A SDS IN

0305-001-(M805WBM--0002) 5-57

START (A)

MOVE (A)

ZERO (A)

Reserved

STOP (A)

PAUSE (A)

RESET (A)

SYS CLR (A)

Reserved

PNL CHANGE (A)

READY (A)

Reserved

BM (A) Block

BB Block

BM (A) Block

BL Block

Feeder Bank

Replacement Switch (A)

LED (OPTION)

CONSOLE CHANGE(A)

(OPTION)
