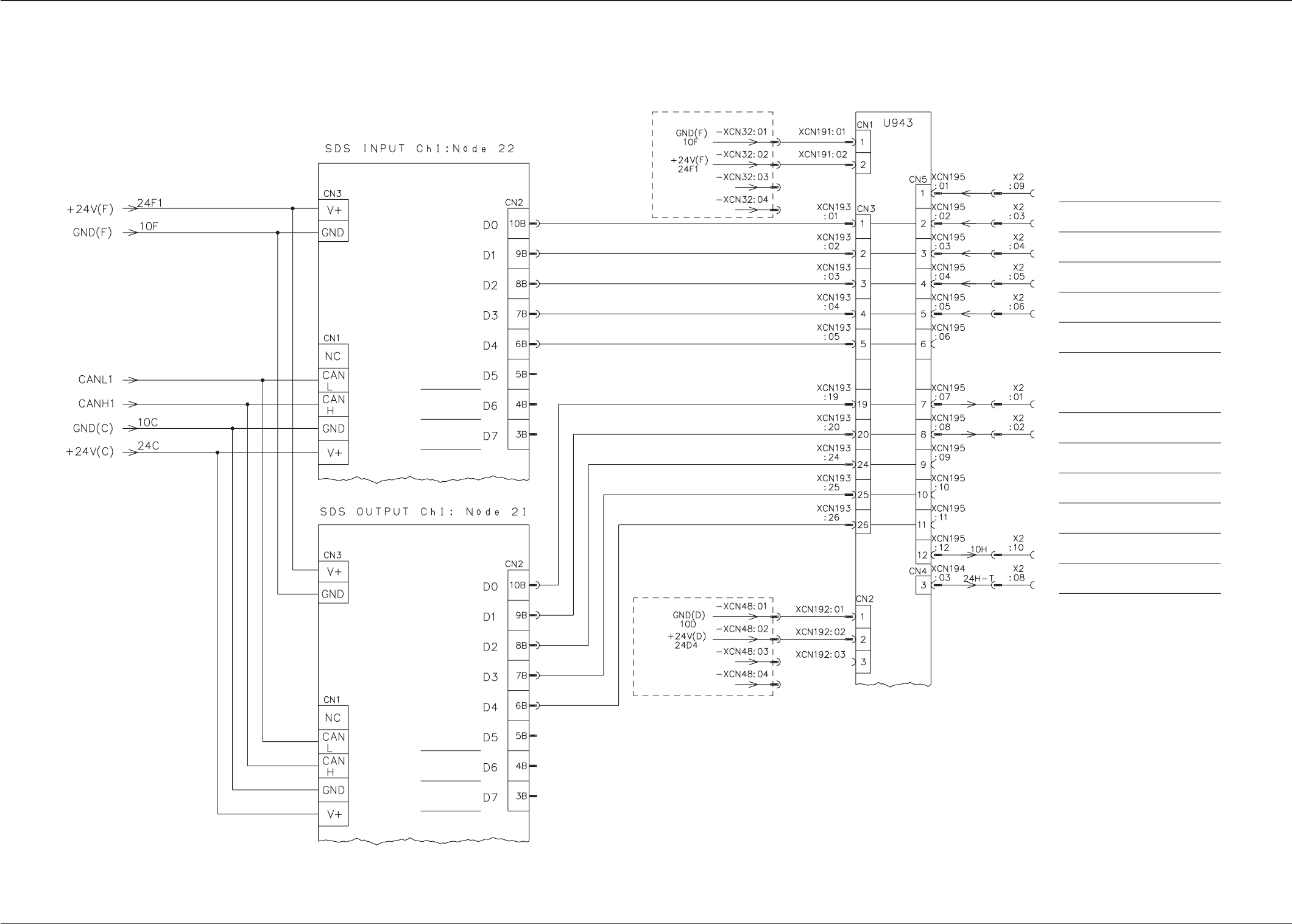

Section 5 Electrical Circuit Diagram Tg0861-PM-MD T ray RS-232C Connection 0305-001-(M805WTT--0007) 5-84 Control Box XCN205A Case X506L Case XCN206A Case X506R Case BC Block
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Tray Connection Section
0305-001-(M805WTT--0006) 5-83
Power Supply for Tray Feeder
Emergency Stop
Refer to the safety circuit
Emergency Stop
Refer to the safety circuit
Emergency Stop
Refer to the safety circuit
(From K99)
(From K99)
(From the KM09
suxiliary contacts)
(To the KM31 auxil-
iary contacts)
To Tray Feeder L (Option)
To Tray Feeder R (Option)
Note:
The areas surrounder by the dashed line belong to the relay P.C.B. (UA18 & UA19).
Emergency Stop
Refer to the safety circuit
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Tray RS-232C Connection
0305-001-(M805WTT--0007) 5-84
Control Box
XCN205A
Case
X506L Case
XCN206A
Case
X506R Case
BC Block
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Input/Output Machine I/F Board (Input Machine)
0305-001-(M805WUC--0001) 5-85
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Note: The areas surrounder by the dashed line belong to the relay P.C.B. (UA18 & UA19).
In Power 3 Panel (BH Block)
Relay P.C.B. UA19
Input/Output Machine I/F Board
VCC for Input Machine Interface
(Supplied From the input machine)
Input Machine Rum
In Power 3 Panel (BH Block)
Relay P.C.B. UA19
Input Machine Ready
Input Machine P.C.B. Transfer
Reserved Input Machine Input
Input Machine P.C.B. Existence
Run Singnal to Input Machine
P.C.B. Requirring Signal to
Input Machine
Reserved Output 1 to
Input Machine
Reserved Output 2 to
Input Machine
Reserved Output 3 to
Input Machine
Main Machine GND
(To Input Machine)
Main Machine +24V
(To Input Machine)
