Section 5 Electrical Circuit Diagram Tg0861-PM-MD Input/Output Machine I/F Board (Input Machine) 0305-001-(M805WUC--0001) 5-85 Reserved Reserved Reserved Reserved Reserved Reserved Note: The areas surrounder by the dashe…
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Tray RS-232C Connection
0305-001-(M805WTT--0007) 5-84
Control Box
XCN205A
Case
X506L Case
XCN206A
Case
X506R Case
BC Block
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD

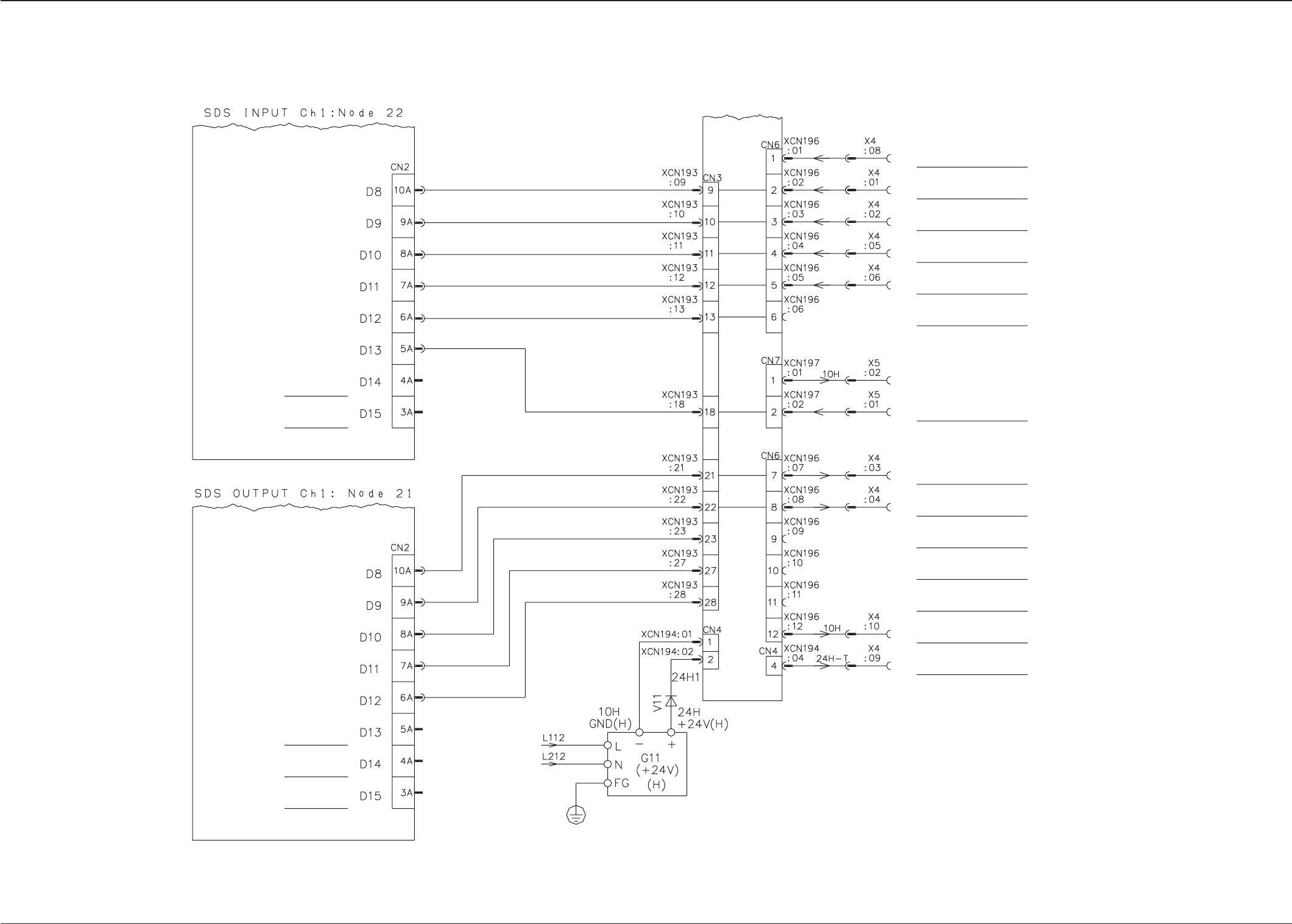

Input/Output Machine I/F Board (Input Machine)
0305-001-(M805WUC--0001) 5-85
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Note: The areas surrounder by the dashed line belong to the relay P.C.B. (UA18 & UA19).
In Power 3 Panel (BH Block)
Relay P.C.B. UA19
Input/Output Machine I/F Board
VCC for Input Machine Interface
(Supplied From the input machine)
Input Machine Rum
In Power 3 Panel (BH Block)
Relay P.C.B. UA19
Input Machine Ready
Input Machine P.C.B. Transfer
Reserved Input Machine Input
Input Machine P.C.B. Existence
Run Singnal to Input Machine
P.C.B. Requirring Signal to
Input Machine
Reserved Output 1 to
Input Machine
Reserved Output 2 to
Input Machine
Reserved Output 3 to
Input Machine
Main Machine GND
(To Input Machine)
Main Machine +24V
(To Input Machine)
Section 5 Electrical Circuit Diagram
Tg0861-PM-MD
Input/Output Machine I/F Board (Output Machine)
0305-001-(M805WUC--0002) 5-86
Reserved
Reserved
Reserved
Reserved
Reserved
Power Supply 4 Box (BJ Block)
Input/Output Machine I/F Board
VCC for Input Machine Interface
(Supplied From the input machine)
Output Machine Run
Output Machine
P.C.B. Requiring
Output Machine Ready
Output Machine P.C.B.
Existene
Reserved Output
Machine Input
Furnace Signal
Run Singnal to Output
Machine
P.C.B. Transfer Signal to
Output Machine
Reserved Output 1 to
Output Machine
Reserved Output 2 to
Output Machine
Reserved Output 3 to
Output Machine
Main Machine GND
(To Output Machine)
Main Machine +24V
(To Output Machine)
