Section 6 Location of Sensors and Loads Tg0861-PM-MD Layout of Sensors and Loads in Backup Base 0305-001-(M805YP---0001) 6-10 A A SECT A-A Symbol Name BPH161 BPC-Axis Limit (-) BPH162 BPH163 BPC-Axis Limit (+) BPC-Axis O…
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads for Conveyor (based on “Rear Reference”)
0307-002A(M805YN---0002) 6-9
A
Symbol Name
-BPH141 L Conveyor P.C.B. Detection L
-BPH142
-BPH143
-BPH144
L Conveyor P.C.B. Detection C
L Conveyor P.C.B. Detection R
P Conveyor P.C.B. Detection L
-BPH143
-BPH141
-BPH144
-YSV31A
MPM11
R Conveyor P.C.B. Detection L
-BPH142 R Conveyor P.C.B. Detection C
P Conveyor P.C.B. Detection R
R Conveyor P.C.B. Detection R
-BPS141
P.C.B. Stopper L Upper Limit
-BPS142
P.C.B. Stopper L Lower Limit
-BPS142
P.C.B. Stopper R Lower Limit
-BPS141
P.C.B. Stopper R Upper Limit
BPH149
P.C.B. Support Pin Detection
BPH151
PWC-Axis Limit (+)
BPH153
PWC-Axis Limit (-)
P.C.B. Stopper L Ascent
-YSV32A P.C.B. Stopper R Ascent
-YSV32B P.C.B. Stopper R Descent
YSV33A Pusher Y Front
YSV33B Pusher Y Rear
-YSV31B P.C.B. Stopper L Descent
PWC-Axis Pulse Motor
-M21 L and R Conveyor P.C.B. Transfer Motor
-M22 P Conveyor P.C.B. Transfer Motor
P Conveyor
R Conveyor
L Conveyor
(Light Receiving Side)
(Light Projecting Side)
Side A Beam (Rear)
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads in Backup Base
0305-001-(M805YP---0001) 6-10
A A
SECT A-A
Symbol Name
BPH161 BPC-Axis Limit (-)
BPH162
BPH163
BPC-Axis Limit (+)
BPC-Axis Origin
MSVM21 BPC-Axis Motor
Section 6 Location of Sensors and Loads
Tg0861-PM-MD

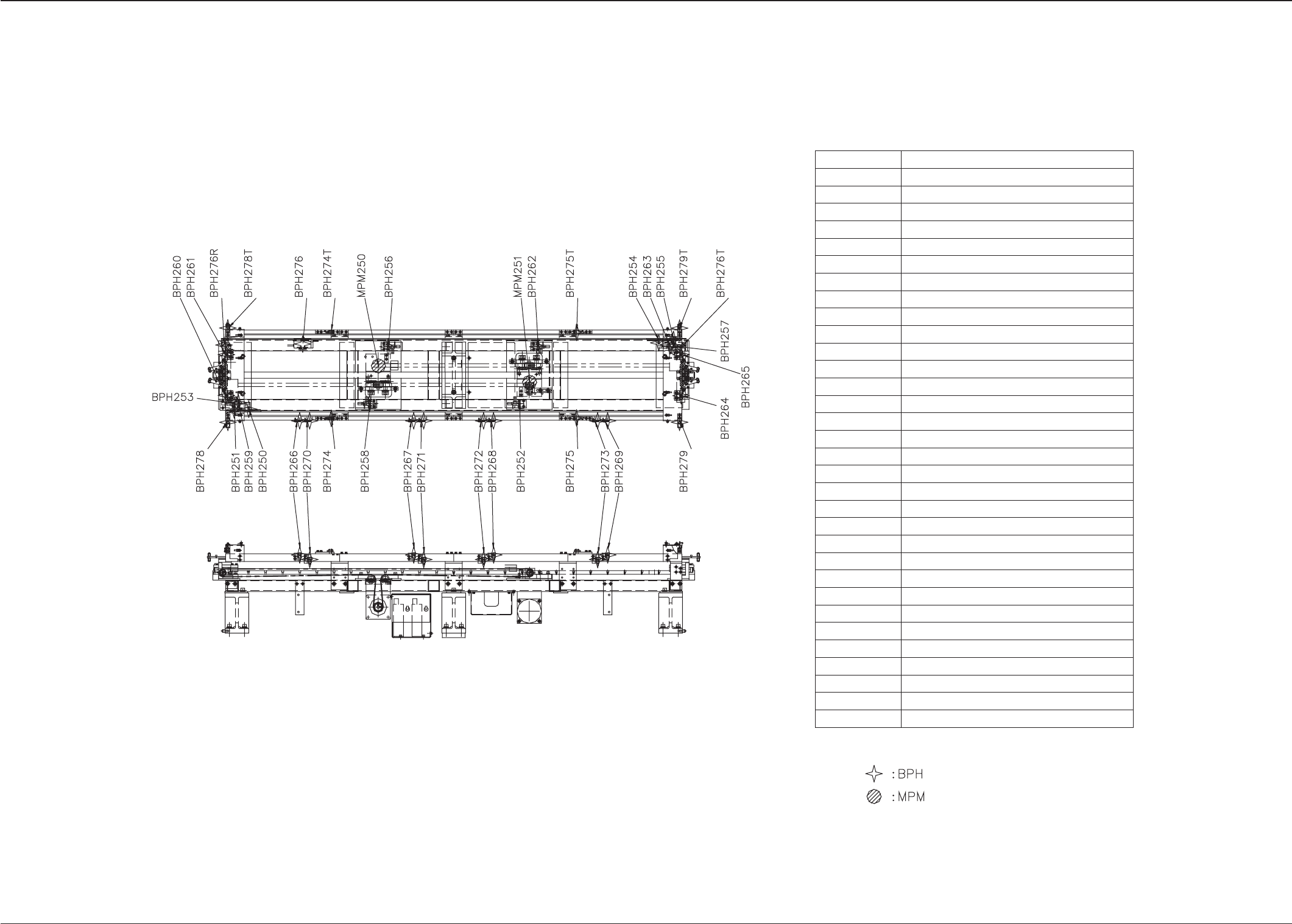

Layout of Sensors and Loads for Tray Traverse
0305-001-(M805YTT--0001) 6-1 1
(BPH276 Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(BPH278 Light Projecting Side)
(BPH274 Light Projecting Side)
(BPH275 Light Projecting Side)
(BPH279 Light Projecting Side)
(BPH276 Light Projecting Side)
(Amplifier)
Side B (Front)
Symbol Name
BPH250 Traverse 1 Clamp Area Check B
BPH251
BPH252
BPH253
Traverse 1 Origin
Traverse 1 Limit (+)
Traverse 1 Limit (-)
BPH255
BPH257
BPH254
Traverse 2 Clamp Area Check B
BPH256 Traverse 2 Limit (+)
Traverse 2 Origin
Traverse 2 Limit (-)
BPH261
Traverse 1 Lever B Origin
BPH262
Traverse 2 Middle Origin
BPH264
Traverse 2 Lever A Origin
BPH265
Traverse 2 Lever B Origin
BPH266
Chute Pallet Check 1 (Upper)
BPH267
Chute Pallet Check 2 (Upper)
BPH268
Chute Pallet Check 3 (Upper)
BPH269
Chute Pallet Check 4 (Upper)
BPH270
Chute Pallet Check 1 (Lower)
BPH271
Chute Pallet Check 2 (Lower)
BPH272
Chute Pallet Check 3 (Lower)
BPH273
Chute Pallet Check 4 (Lower)
BPH274
Traverse 1 Pass Line Interlock
BPH275
Traverse 2 Pass Line Interlock
BPH276
Traverse Collision Detection
BPH278
Traverse 1 Pass Line Interlock 2
BPH279
Traverse 2 Pass Line Interlock 2
MPM250
Traverse 1 Stepping Motor
MPM251
Traverse 2 Stepping Motor
BPH263
Traverse 2 Clamp Area Check A
BPH258
Traverse 1 Middle Origin
BPH259
Traverse 1 Clamp Area Check A
BPH260
Traverse 1 Lever A Origin
