Section 6 Location of Sensors and Loads

Tg0861-PM-MD

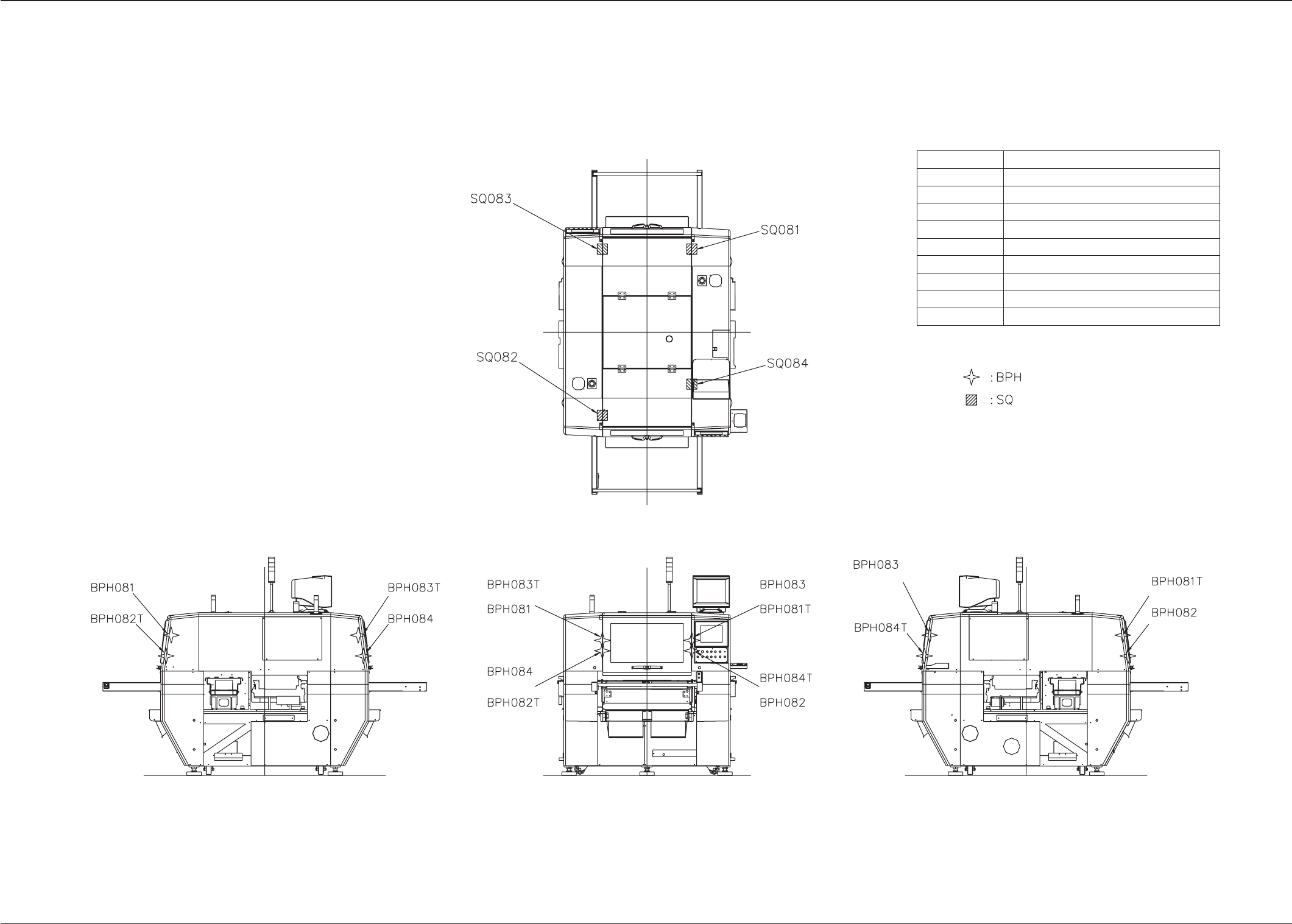

Layout of Sensors and Loads in Cover Section

0305-001-(M805YG---0001) 6-1

Side B (Front View)

Symbol Name

BPH081 Maintenance Opening Detection A

BPH082

BPH083

BPH084

Maintenance Opening Detection A

Maintenance Opening Detection B

SQ081

SQ082

SQ083

SQ084

Supply Cover Electromagnetic Lock A

Supply Cover Electromagnetic Lock B

Maintenance Cover A

Maintenance Cover B

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

Note: BPH081, 081T, 082, 082T, SQ081, SQ083 is installed on the side A (Rear).
