Section5 Electrical Circuit Diagram 0305-001- (M805WBB--0017) 5-27 Tg0861-PM-MD SDS OUT 5 Note: The area surrounded by the dashed line belongs to the relay P .C.B. (UA18 & UA19). V accum Pump Motor INTLK BYP ASS [OPE…

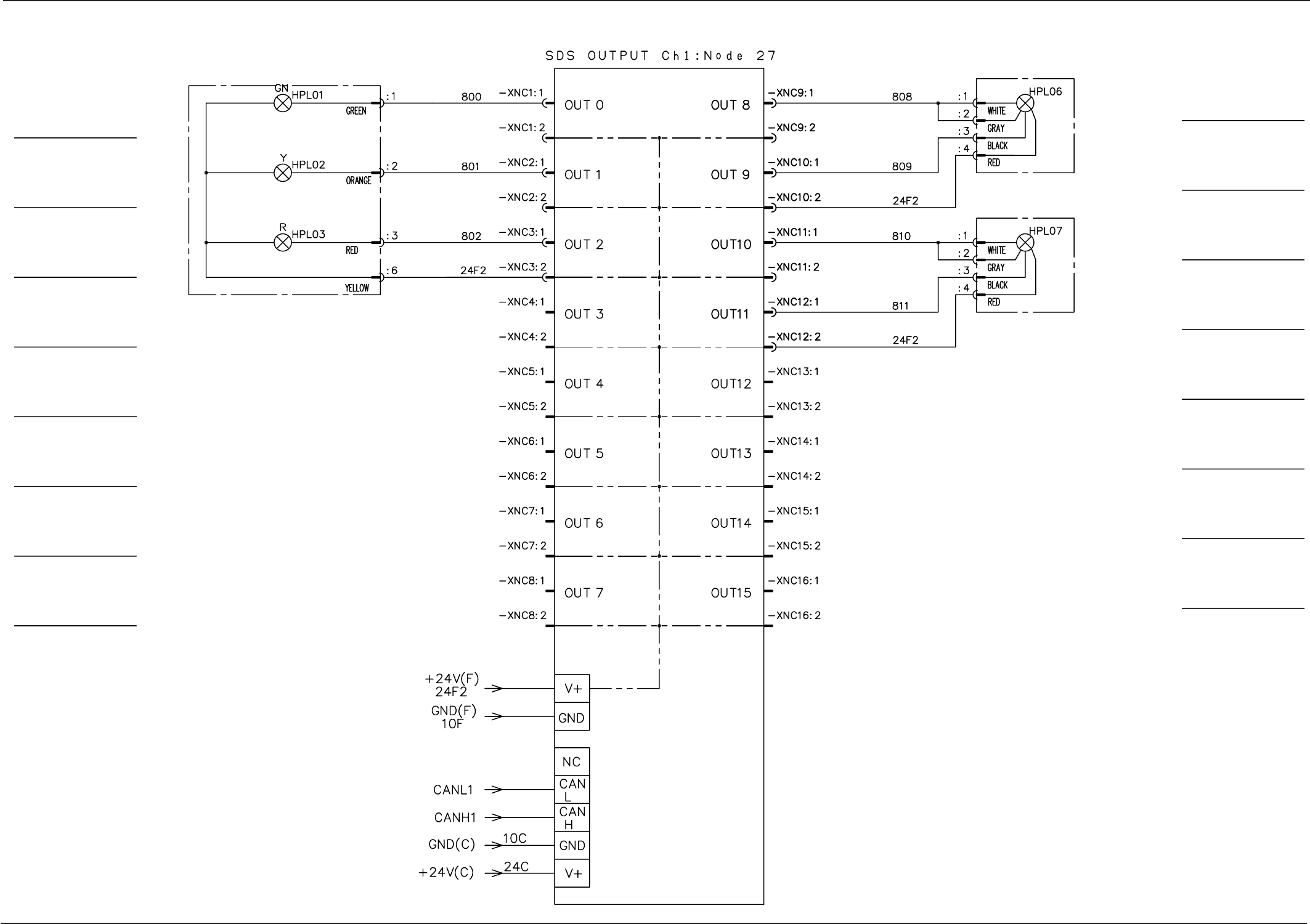

Section5 Electrical Circuit Diagram

0305-001A (M805WBB--0016) 5-26 Tg0861-PM-MD

SDS OUT 4

Light Tower (Green)

Light Tower (Yellow)

Light Tower (Red)

Light Tower (Reserved)

Reserved

Material Shortage Light

feeder Section A

(ON)

Material Shortage Light

feeder Section A

(ON and OFF)

Material Shortage Light

feeder Section B

(ON)

Material Shortage Light

feeder Section B

(ON and OFF)

Light Tower ASSY

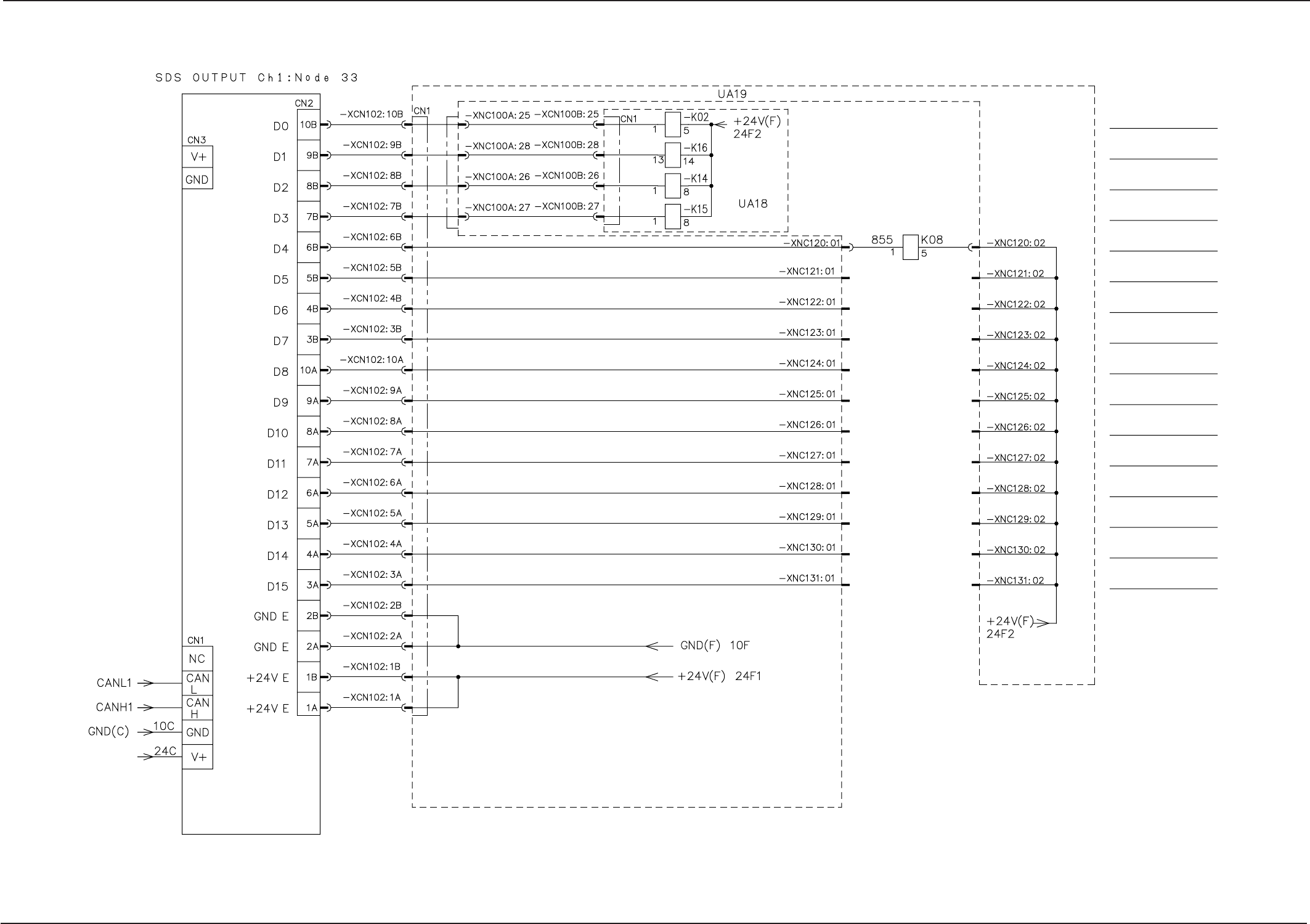

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0017) 5-27 Tg0861-PM-MD

SDS OUT 5

Note:

The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).

Vaccum Pump Motor

INTLK BYPASS

[OPERATION/SET UP]

Switch (Rear Side)

[OPERATION/SET UP]

Switch (Front Side)

Recognition Monitor ON

Reserved

Relay P.C.B.

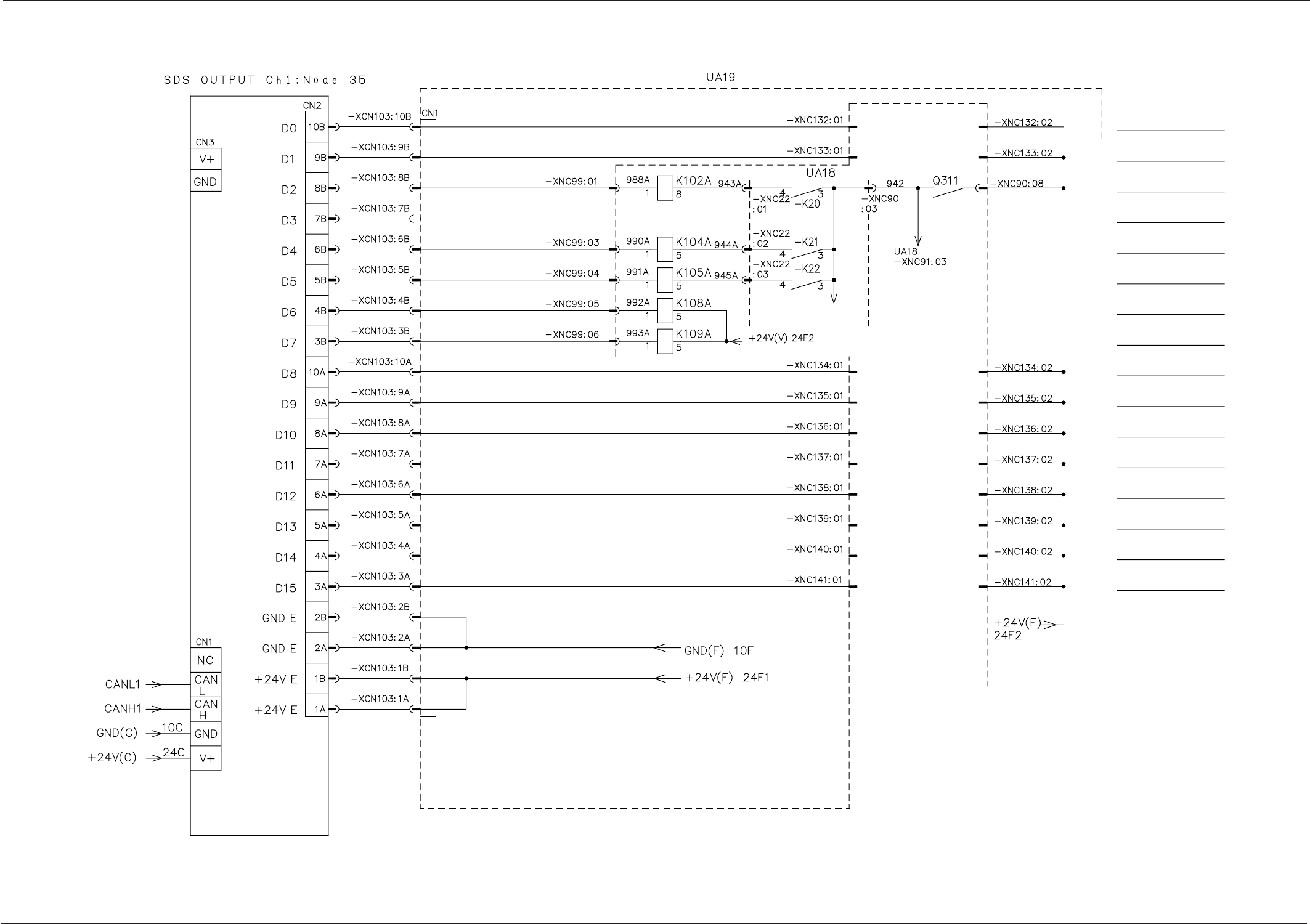

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0018) 5-28 Tg0861-PM-MD

SDS OUT 6

Note:

The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).

Relay P.C.B.

To Coil Terminal 5 of K151A

through Contact Terminal 3 of K23

(From Coil Terminal 5 of K153A)

ZA1-Axis

Power Supply ON

XA/YA-Axis

Power Supply ON

ZA2-Axis

Power Supply ON

LA1-Axis

Power Supply ON

LA1-Axis Brake

Forced Release

LA2-Axis Brake

Forced Release

LA2-Axis

Power Supply ON

Reserved
