Section 6 Location of Sensors and Loads Tg0861-PM-MD Layout of Sensors and Loads in Base Frame 0305-001-(M805YBB--0003) 6-2 Symbol Name BPH053 Lifted Feeder Detection A1 BPH054 BPH055 BPH056 Lifted Feeder Detection A2 Li…

Section 6 Location of Sensors and Loads

Tg0861-PM-MD

Layout of Sensors and Loads in Cover Section

0305-001-(M805YG---0001) 6-1

Side B (Front View)

Symbol Name

BPH081 Maintenance Opening Detection A

BPH082

BPH083

BPH084

Maintenance Opening Detection A

Maintenance Opening Detection B

SQ081

SQ082

SQ083

SQ084

Supply Cover Electromagnetic Lock A

Supply Cover Electromagnetic Lock B

Maintenance Cover A

Maintenance Cover B

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

Note: BPH081, 081T, 082, 082T, SQ081, SQ083 is installed on the side A (Rear).

Note

Section 6 Location of Sensors and Loads

Tg0861-PM-MD

Layout of Sensors and Loads in Base Frame

0305-001-(M805YBB--0003) 6-2

Symbol Name

BPH053 Lifted Feeder Detection A1

BPH054

BPH055

BPH056

Lifted Feeder Detection A2

Lifted Feeder Detection B1

Lifted Feeder Detection B2

MFAN01

MFAN02

MFAN03

Cooling Fan 1 for Exhaust

Cooling Fan 2 for Exhaust

Cooling Fan 3 for Exhaust

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

(Light Receiving Side)

(Light Projecting Side)

Section 6 Location of Sensors and Loads

Tg0861-PM-MD

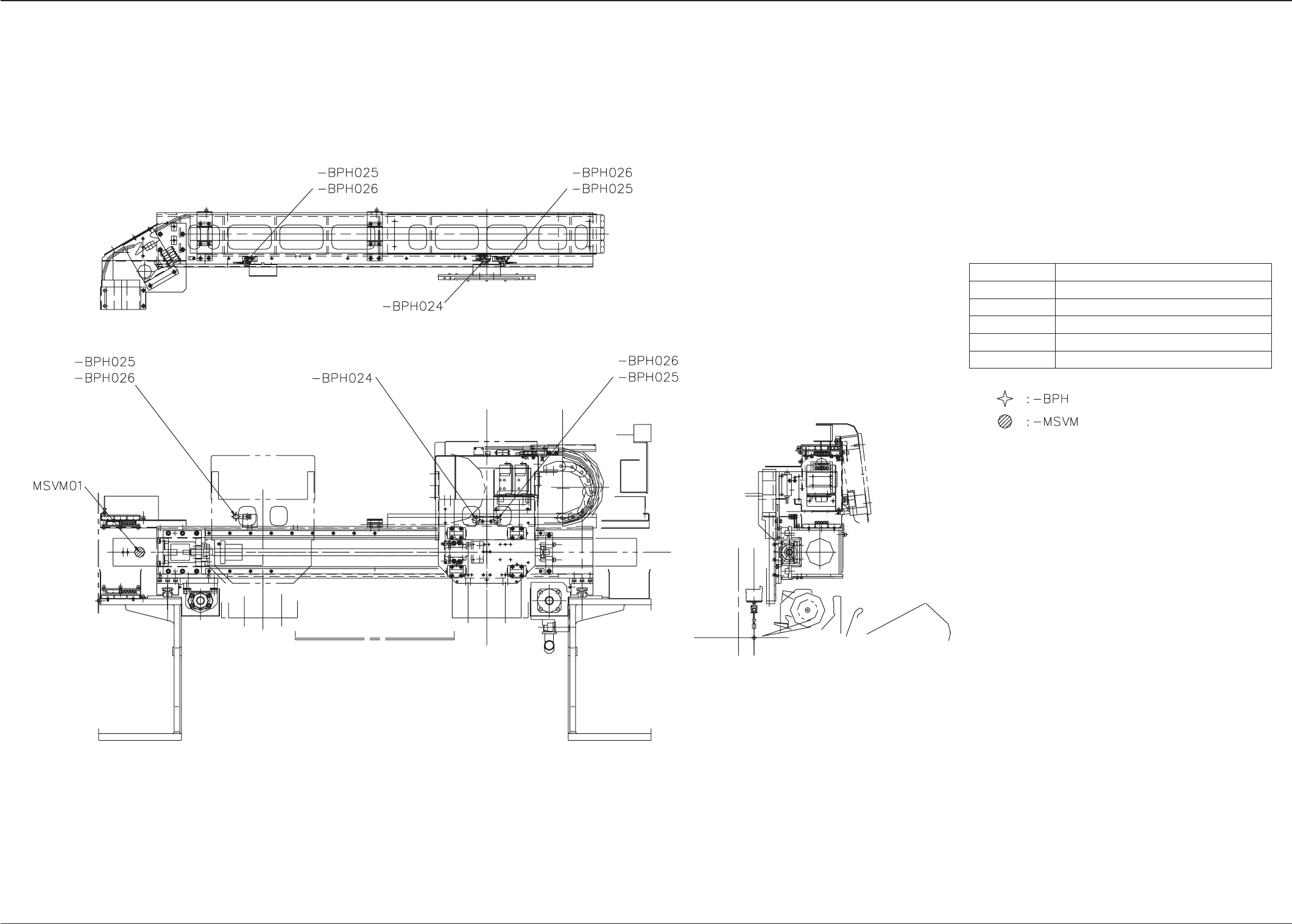

Layout of Sensors and Loads in Dual-Beam X/Y (X Axis)

0305-001-(M805YCB--0002) 6-3

Symbol Name

-BPH024 XA, XB-Axis Slide Origin

-BPH025

-BPH026

-MSVM01

XA, XB-Axis Limit (+)

XA, XB-Axis Limit (-)

XA, XB-Axis Motor

(XA: -Limit)

(XB: +Limit)

(XA: +Limit)

(XB: -Limit)

(XA: +Limit)

(XB: -Limit)

(XA: -Limit)

(XB: +Limit)

View from Machine B Side (Front) to X-Axis of Machine A Side (Rear)
