Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads in Base Frame
0305-001-(M805YBB--0003) 6-2
Symbol Name
BPH053 Lifted Feeder Detection A1
BPH054
BPH055
BPH056
Lifted Feeder Detection A2
Lifted Feeder Detection B1
Lifted Feeder Detection B2
MFAN01
MFAN02
MFAN03
Cooling Fan 1 for Exhaust
Cooling Fan 2 for Exhaust
Cooling Fan 3 for Exhaust
(Light Receiving Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads in Dual-Beam X/Y (X Axis)
0305-001-(M805YCB--0002) 6-3
Symbol Name
-BPH024 XA, XB-Axis Slide Origin
-BPH025
-BPH026
-MSVM01
XA, XB-Axis Limit (+)
XA, XB-Axis Limit (-)
XA, XB-Axis Motor
(XA: -Limit)
(XB: +Limit)
(XA: +Limit)
(XB: -Limit)
(XA: +Limit)
(XB: -Limit)
(XA: -Limit)
(XB: +Limit)
View from Machine B Side (Front) to X-Axis of Machine A Side (Rear)
Section 6 Location of Sensors and Loads
Tg0861-PM-MD

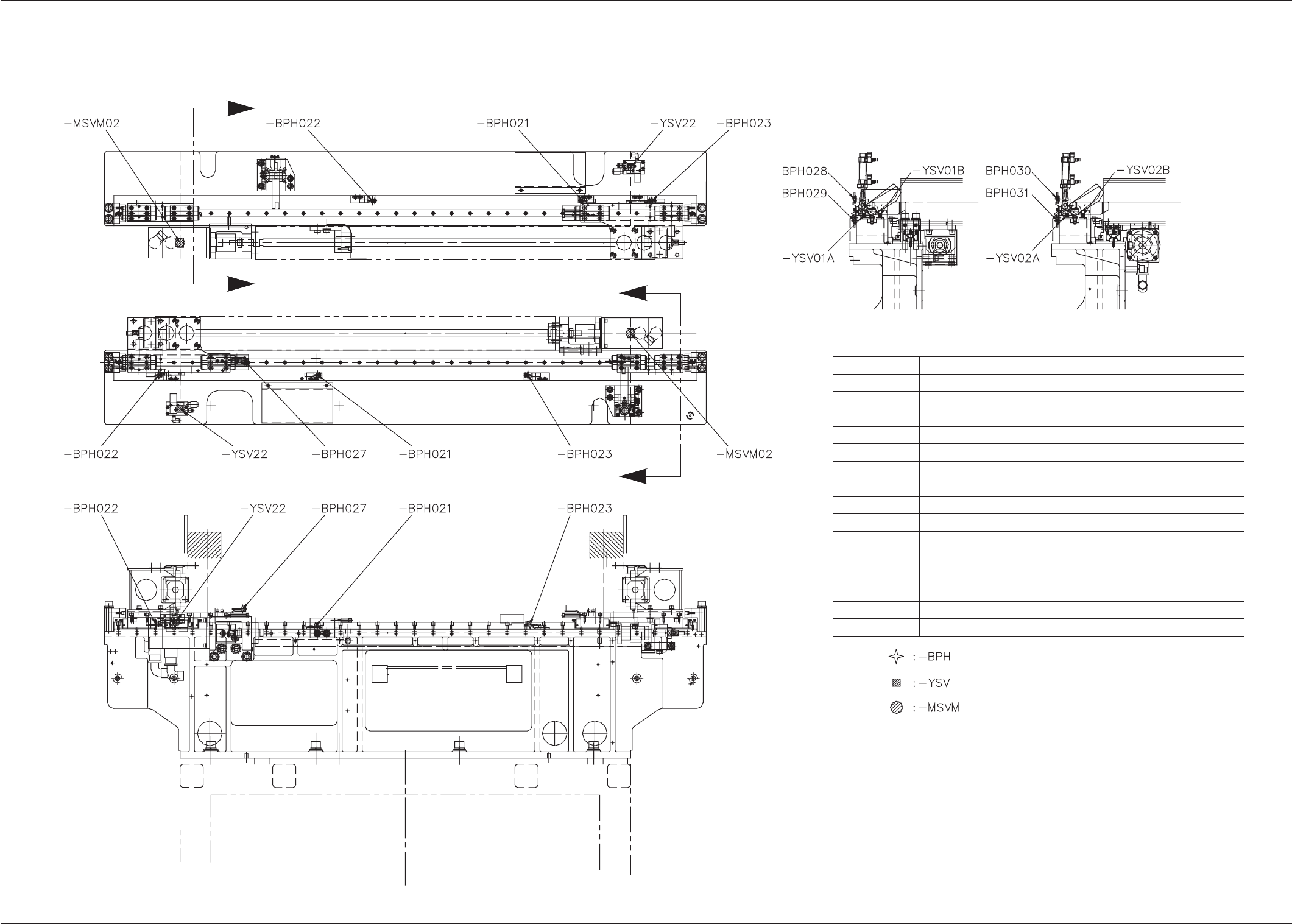

Layout of Sensors and Loads in Dual-Beam X/Y (Y Axis)
0305-001-(M805YCB--0001) 6-4
B
B
A
A
SECT B-BSECT A-A
YB Axis
YA Axis
Note
Note
Symbol Name
-BPH021 YA, YB-Axis Slide Origin
-BPH022
-BPH023
-BPH027
YA, YB-Axis Limit (+)
YA, YB-Axis Limit (-)
Beam Approach Detection
BPH029
BPH030
BPH031
BPH028
YSV01A
YSV01B
YSV02A
YSV02B
-YSV22
-MSVM02 YA, YB-Axis Motor
YA-Axis Stationary Position Stopper Backward Limit
YA-Axis Stationary Position Stopper Forward Limit
YB-Axis Stationary Position Stopper Forward Limit
YB-Axis Stationary Position Stopper Backward Limit
YA-Axis Stationary Position Stopper Forward Movement
YA-Axis Stationary Position Stopper Backward Movement
YB-Axis Stationary Position Stopper Forward Movement
YB-Axis Stationary Position Stopper Backward Movement
LA1, LB1-Axis Source Blow Pressure Open/Close
Note: Photosensor BPH027 moves together with the XB axis because it is attached to the XB Axis.
