Section 6 Location of Sensors and Loads Tg0861-PM-MD Layout of Sensors and Loads for Conveyor (based on “Rear Reference”) 0307-002A(M805YN---0002) 6-9 A Symbol Name -BPH141 L Conveyor P .C.B. Detection L -BPH142 -BPH143 …
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads for Conveyor (based on “Front Reference”)
0307-002A(M805YN---0001) 6-8
A
Symbol Name
-BPH141 L Conveyor P.C.B. Detection L
-BPH142
-BPH143
-BPH144
L Conveyor P.C.B. Detection C
L Conveyor P.C.B. Detection R
P Conveyor P.C.B. Detection L
-BPH143
-BPH141
-BPH144
-YSV31A
MPM11
R Conveyor P.C.B. Detection L
-BPH142 R Conveyor P.C.B. Detection C
P Conveyor P.C.B. Detection R
R Conveyor P.C.B. Detection R
-BPS141
P.C.B. Stopper L Upper Limit
-BPS142
P.C.B. Stopper L Lower Limit
-BPS142
P.C.B. Stopper R Lower Limit
-BPS141
P.C.B. Stopper R Upper Limit
BPH149
P.C.B. Support Pin Detection
BPH151
PWC-Axis Limit (+)
BPH153
PWC-Axis Limit (-)
P.C.B. Stopper L Ascent
-YSV32A P.C.B. Stopper R Ascent
-YSV32B P.C.B. Stopper R Descent
YSV33A Pusher Y Front
YSV33B Pusher Y Rear
-YSV31B P.C.B. Stopper L Descent
PWC-Axis Pulse Motor
-M21 L and R Conveyor P.C.B. Transfer Motor
-M22 P Conveyor P.C.B. Transfer Motor
P Conveyor
R ConveyorL Conveyor
(Light Receiving Side)
(Light Projecting Side)
Side B Beam (Front)
Section 6 Location of Sensors and Loads
Tg0861-PM-MD
Layout of Sensors and Loads for Conveyor (based on “Rear Reference”)
0307-002A(M805YN---0002) 6-9
A
Symbol Name
-BPH141 L Conveyor P.C.B. Detection L
-BPH142
-BPH143
-BPH144
L Conveyor P.C.B. Detection C
L Conveyor P.C.B. Detection R
P Conveyor P.C.B. Detection L
-BPH143
-BPH141
-BPH144
-YSV31A
MPM11
R Conveyor P.C.B. Detection L
-BPH142 R Conveyor P.C.B. Detection C
P Conveyor P.C.B. Detection R
R Conveyor P.C.B. Detection R
-BPS141
P.C.B. Stopper L Upper Limit
-BPS142
P.C.B. Stopper L Lower Limit
-BPS142
P.C.B. Stopper R Lower Limit
-BPS141
P.C.B. Stopper R Upper Limit
BPH149
P.C.B. Support Pin Detection
BPH151
PWC-Axis Limit (+)
BPH153
PWC-Axis Limit (-)
P.C.B. Stopper L Ascent
-YSV32A P.C.B. Stopper R Ascent
-YSV32B P.C.B. Stopper R Descent
YSV33A Pusher Y Front
YSV33B Pusher Y Rear
-YSV31B P.C.B. Stopper L Descent
PWC-Axis Pulse Motor
-M21 L and R Conveyor P.C.B. Transfer Motor
-M22 P Conveyor P.C.B. Transfer Motor
P Conveyor
R Conveyor
L Conveyor
(Light Receiving Side)
(Light Projecting Side)
Side A Beam (Rear)
Section 6 Location of Sensors and Loads
Tg0861-PM-MD

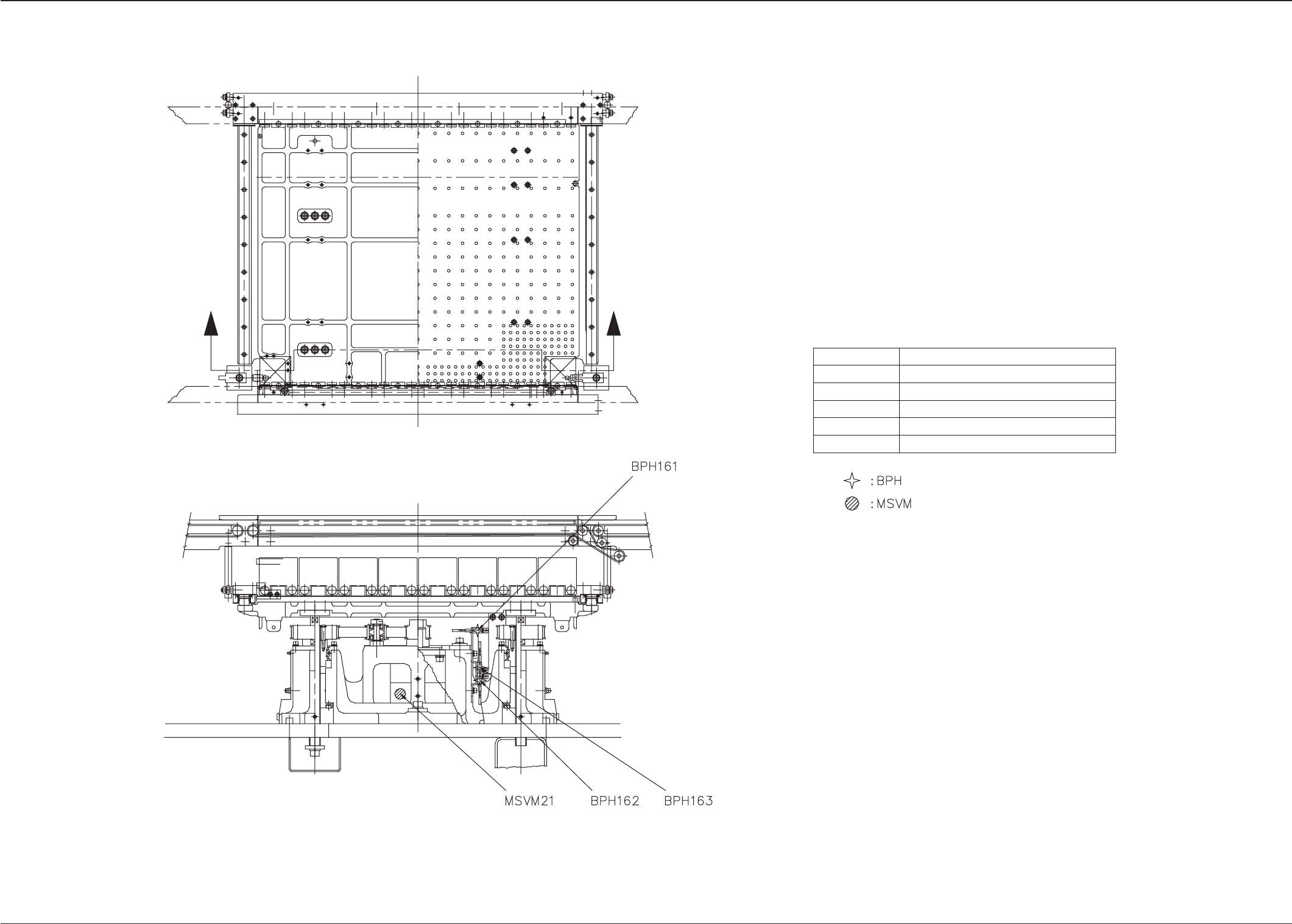

Layout of Sensors and Loads in Backup Base
0305-001-(M805YP---0001) 6-10
A A
SECT A-A
Symbol Name
BPH161 BPC-Axis Limit (-)
BPH162
BPH163
BPC-Axis Limit (+)
BPC-Axis Origin
MSVM21 BPC-Axis Motor
