Section5 Electrical Circuit Diagram 0305-001- (M805WBC--0003) 5-32 Tg0861-PM-MD C-BOX SDS IN Board 1 Servo Alarm Code 1 Servo Alarm Code 2 Servo Alarm Code 3 ZA1-Axis Ready ZA2-Axis Ready ZB1-Axis Ready ZB2-Axis Ready BP…
Section5 Electrical Circuit Diagram
0305-001- (M805WBC--0002) 5-31 Tg0861-PM-MD
HDD/FDD Circuit
Inside of Control Box Inside of Conveyor 1 Box
BK Block
Board
Section5 Electrical Circuit Diagram
0305-001- (M805WBC--0003) 5-32 Tg0861-PM-MD
C-BOX SDS IN Board 1
Servo Alarm Code 1
Servo Alarm Code 2
Servo Alarm Code 3
ZA1-Axis Ready
ZA2-Axis Ready
ZB1-Axis Ready
ZB2-Axis Ready
BPC-Axis Ready
Feeder (A)
Circuit Breaker OFF
Feeder (B)
Circuit Breaker OFF
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Relay Connector Board
Relay Connector Board
BJ Block
BJ Block
XA Axis AL01
YA Axis AL01
LA1 Axis AL01
LA2 Axis AL01
ZA1 Axis AL01
ZA2 Axis AL01
BPC Axis AL01
XB Axis AL01
YB Axis AL01
LB1 Axis AL01
LB2 Axis AL01
ZB1 Axis AL01
ZB2 Axis AL01
Section5 Electrical Circuit Diagram
0305-001- (M805WBC--0004) 5-33 Tg0861-PM-MD

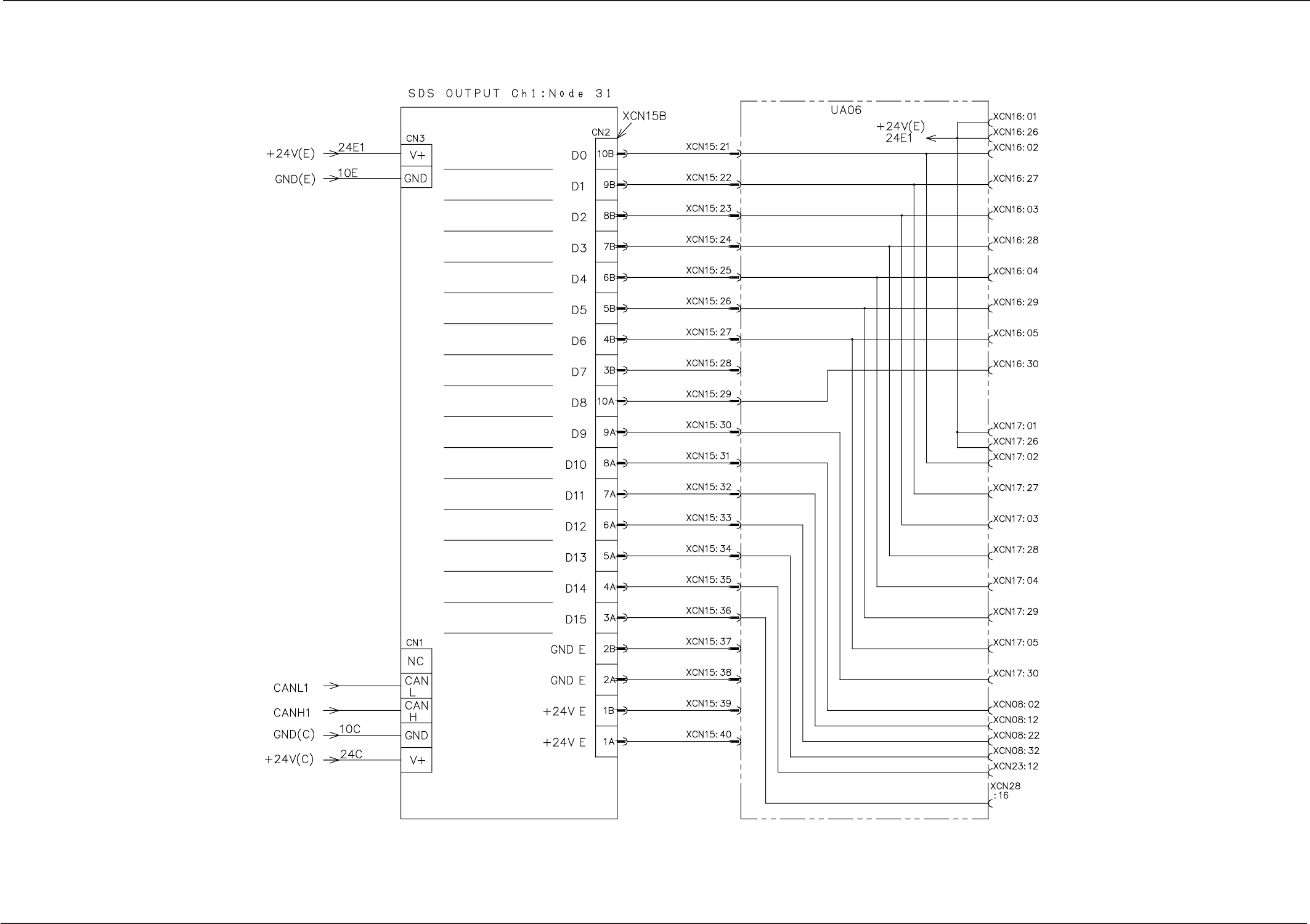

C-BOX SDS OUT Board 1
XA-/XB-Axis Alarm
Code Selection
YA-/YB-Axis Alarm
Code Selection
LA1-/LB1-Axis Alarm
Code Selection
LA2-/LB2-Axis Alarm
Code Selection
ZA1-/ZB1-Axis Alarm
Code Selection
ZA2-/ZB2-Axis Alarm
Code Selection
BPC-Axis Alarm
Code Selection
Beam A Alarm Code
Selection
Beam B Alarm Code
Selection
Reserved
Reserved
Reserved
ZA1-Axis Servo ON
ZA2-Axis Servo ON
ZB1-Axis Servo ON
ZB2-Axis Servo ON
Relay Connector Board
