Section5 Electrical Circuit Diagram DC Power Supply Circuit 0305-001A (M805WB---0005) 5-10 Tg0861-PM-MD Peripheral Unit Peripheral Unit Peripheral Unit Note: The areas surrounded by the dashed line belong to the relay P …

100%1 / 185
Section5 Electrical Circuit Diagram
Emergency Stop Safety Relay Circuit
0305-001- (M805WB---0004) 5-9 Tg0861-PM-MD
Tray
Tray
G Block
Maintenance Cover
A Detection
Maintenance Cover
B Detection
LB1-Axis Main
Circuit Power
Supply
LB2-Axis Main
Circuit Power
Supply
LA1-Axis Main
Circuit Power
Supply
LA2-Axis Main
Circuit Power
Supply
BPC-Axis Main
Circuit Power
Supply
BM(A) Block
BM(B) Block
Feeder B
(Front Side)
Feeder A
(Rear Side)
BJ Block
BD Block
BE Block
Emergency Stop Safty Relay
BYPASS
SET UP A
SET UP B
Beams A and B
To Safety Relay
Note:
The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).
Red
Green
Red
Green
Section5 Electrical Circuit Diagram
DC Power Supply Circuit
0305-001A (M805WB---0005) 5-10 Tg0861-PM-MD
Peripheral
Unit
Peripheral
Unit
Peripheral
Unit
Note: The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & 19).
To Input/Output I/F Board
(U943) Power Connector (XCN192)
To Operation Box A Tower Light SDS
(CH1) IN&OUT (NODE23,24,27)
Power Connector
To Operation Box B SDS (CH1)
IN&OUT (NODE25,26)
Power Connector
To Feeer Base A1 SDS (CH2)
IN&OUT (NODE11,13,14,15,16)
Power connector
To Feeer Base A2 SDS (CH2)
IN&OUT (NODE19,21,22,23,24)
Power connector
To Feeer Base B1 SDS (CH2)
IN&OUT (NODE27,29,30,31,32)
Power connector
To Feeer Base B2 SDS (CH2)
IN&OUT (NODE35,37,38,39,40)
Power connector
To Tray Feeder L X504L
To Tray Feeder R X504R
Reserved
To Transfer-Related 1 SDS (CH1)
IN (NODE12) Power Connecter
To Up/Down-Stream Unit SDS
(CH1) IN&OUT (NODE22,21)
Power Connector
To Transfer-Related 2 SDS (CH1)
OUT(NODE13) Power Connecter
and Transfer Speed Control Unit(S60)
To Main Body A SDS (CH1)
IN&OUT (NODE15,16)
Power Connector
To Main Body B SDS (CH1)
IN&OUT (NODE17,18)
Power Connector
To Input/Output I/F Board
(U943) Power Connector (XCN191)
To Transfer-Related 1 SDS (CH1)
Out (NODE11) Power Connecter
Reserved
To Converter Board A Connecter
(XNC344)
To Converter Board B Connecter
(XNC348)
LED Lighting Control Board
Connecter (UA08: CN1), Counter
Board (UA23) and P.E.C. Recognition
Lighting Driving SSR (KSSR21,22)
To Feeer Base A1 SDS (CH2)
IN&OUT (NODE11,13,14,15,16)
Power connector
To Feeer Base A2 SDS (CH2)
IN&OUT (NODE19,21,22,23,24)
Power connector
Reserved
To Feeer Base B1 SDS (CH2)
IN&OUT (NODE27.29.30.31.32)
Power connector
To Feeer Base B2 SDS (CH2)
IN&OUT (NODE35,37,38,39,40)
Power connector
Reserved
To Tray Traverse Unit SDS (CH1)
IN (NODE8),
Relay Board (UA03)
To Mechanical Distribution
Board (4) Power Connector
(XCN115,116)
To Mechanical Distribution
Board (3) Power Connector
(XCN112,113)
To Mechanical Distribution
Board (2) Power Connector
(XCN109,110)
To the A head motherboard power
connector (XCN330), the input relay
board (UA03), and the power
connectors (XCN331 and XCN332)
To Control Box Connector XCN92
(To Relay Connector Board UA06)
To the B head motherboard power
connector (XCN370), the input relay
board (UA03), and the power
connectors (XCN371 and XCN372)
To the Transfer-related 2 SDS
(CH1) IN (NODE14) power
connector
24V Load Power Sopply ON
Multi-Power Unit
SLOT 3
SLOT 1
SLOT 4

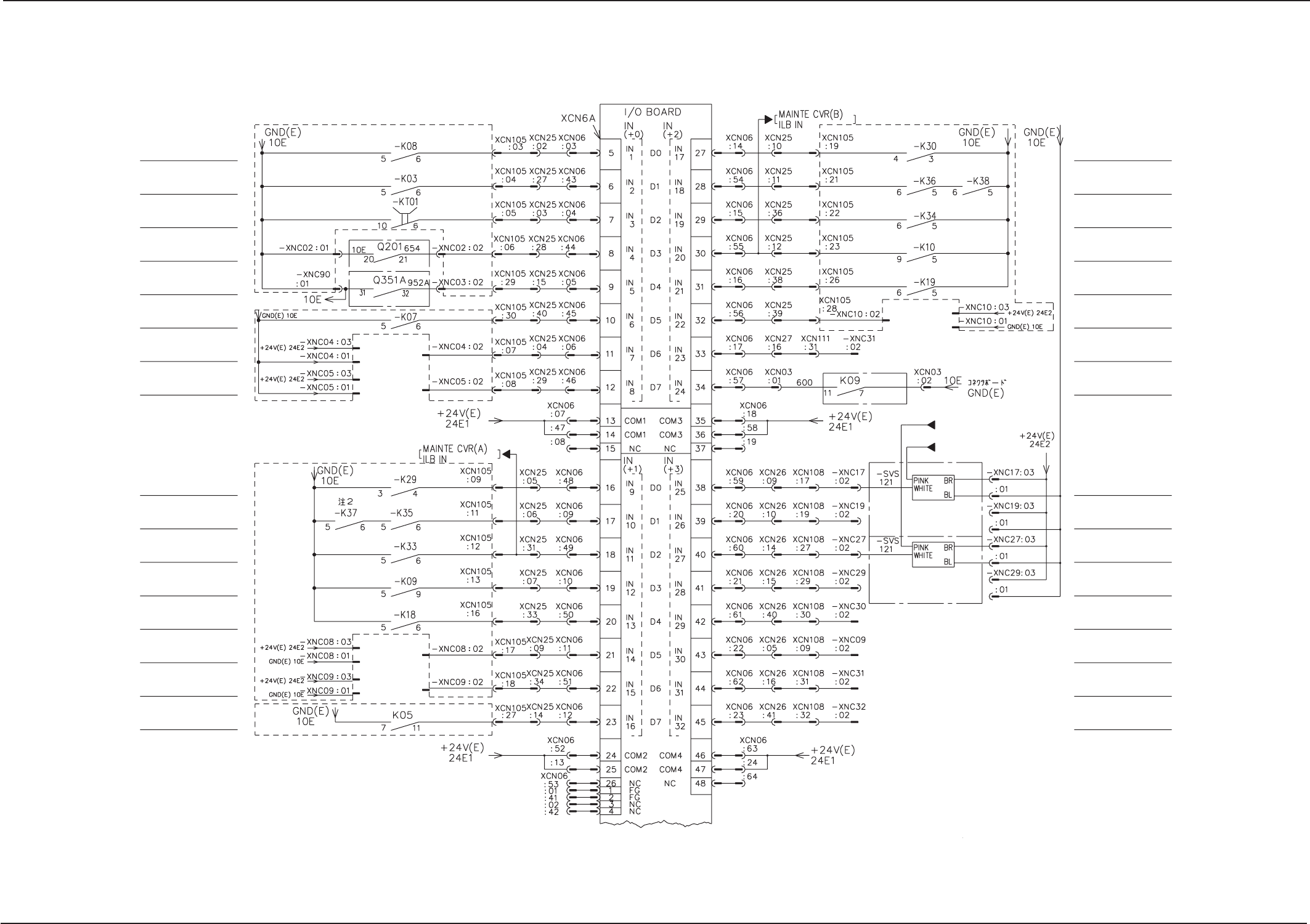

Section5 Electrical Circuit Diagram
I/O Board 1-1
0305-001A(M805WBB--0001) 5-11 Tg0861-PM-MD
Reserved
Reserved
Reserved
Reserved
Bad Mark Sensor A
(option)
Reserved
YB Stationary Position
Stopper Forward Limit
Safety Bar
Electromagnetic Look B
Supply Cover
Electromagnetic Look B
Maintenance Cover
B Detection
Beam B Circuit
Breaker OFF
SDS24V check
LA1-Axis
Vaccum Sensor
LA1-Axis U/D
Level Measurement
LA2-Axis
Vaccum Sensor
LA2-Axis U/D
Level Measurement
BC Block
LA2-Axis Vaccum
Sensor Reference
LA1-Axis Vaccum
Sensor Reference
MB (A) Block
MC (A)
Block
[EMARGENCY STOP]
Circuit Breaker OFF
Lightning Surge Killer
BPC-Axis Circuit
Breaker OFF
PWC-Axis Circuit
Breaker OFF
Reserved
Reserved
Reserved
Reserved
Power ON Delay
YA Stationary Position
Stopper Forward Limit
Safety Bar
Electromagnetic Look A
Supply Cover
Electromagnetic Look A
Maintenance Cover
A Detection
Beam A Circuit
Breaker OFF
Load Power Supply
Check
Note:
The areas surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).
BE Block
BD Block
