Section5 Electrical Circuit Diagram 0305-001- (M805WBB--0012) 5-22 Tg0861-PM-MD SDS IN 5 Note: The area surrounded by the dashed line belong to the relay P .C.B. (UA18 & UA19). Reserved Reserved Reserved Reserved Res…

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0011) 5-21 Tg0861-PM-MD

SDS IN 4

Component Discharge Box B

Full Detection

Component Discharge Box B

Full Detection (Option)

Component Discharge Box B

Discharge Position Detection

(Option)

[MANUAL] Switch B

(Option)

Nozzle Stocker B1

Open Check

Nozzle Stocker B1

Close Check

B (B) Block

F (B1) Block

To Component Discharge

Conveyor B (Option)

*To the right

side of the

figure

[MANUAL] Switch B

(Option)

To Component Discharge

Conveyor B (Option)

*From the left side

of the figure

Reserved

Component Discharge

Conveyor B

Component Discharge

Conveyor B

Tray 1-inch Detection

Feeder Base Surge Detection

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0012) 5-22 Tg0861-PM-MD

SDS IN 5

Note:

The area surrounded by the dashed line belong to the relay P.C.B. (UA18 & UA19).

Reserved

INTLK BYPASS

[OPERATION/SET UP]

Switch (Rear Side) A

[OPERATION/SET UP]

Switch (Rear Side) B

Relay P.C.B.

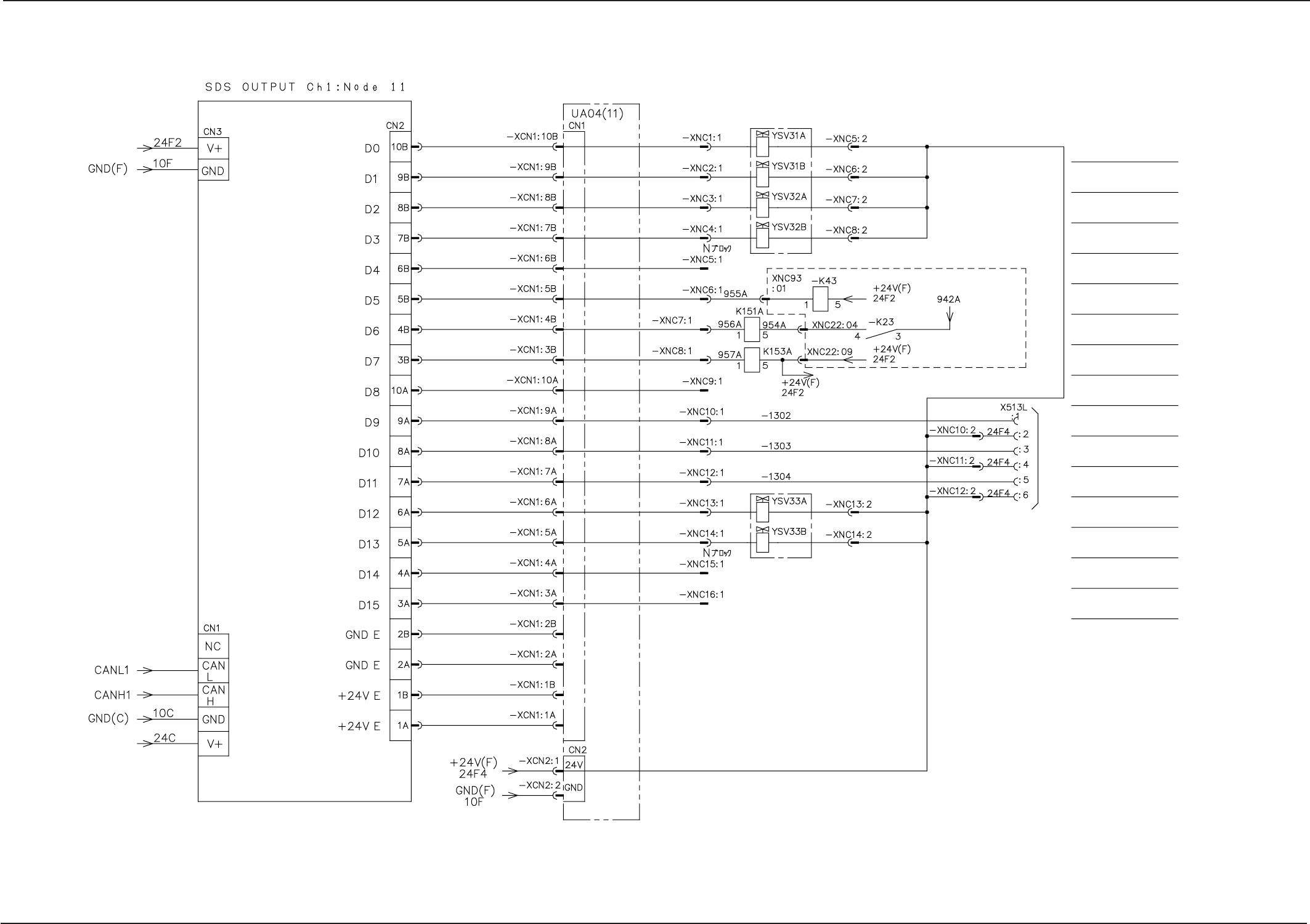

Section5 Electrical Circuit Diagram

0305-001- (M805WBB--0013) 5-23 Tg0861-PM-MD

SDS OUT 1

Note:

The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).

P.C.B. Stopper L

Ascending

P.C.B. Stopper L

Descenting

P.C.B. Stopper R

Descenting

P.C.B. Stopper R

Ascending

Reserved

BPC-Axis Servo ON

BPC-Axis Power ON

BPC-Axis Brake

Forced Release

Extended EL Conveyor

Stopper Ascending (Option)

Extended EL Conveyor

Transfer Motor Normal

Rotation (Option)

Extended EL Conveyor

Transfer Motor Reverse

Rotation (Option)

Y Pusher Forward

Movement

Y Pusher Backward

Movement

SDS Relay P.C.B.

(For Output)

From Contact

Terminal 3 of K22

To Coil Terminal 5 of K108A and K109A

To the Extended EL

conveyor (option)
