Section 3

Convenient Function

0305-001 3-A Tg0861-PM-MD

This section explains such convenient functions as the auto-

matic operation substitution display and the machine informa-

tion display, etc.

0305-001 3-B Tg0861-PM-MD

1. One-Touch Jump Function (Jump to Substitute

AUTO OPN. MODE <PLACEMENT> Display)

• This function enables the operator to shift quickly to the substitute “AUTO

OPN. MODE <PLACEMENT>” display from another display by pressing

the [RTN] key (one-touch operation).

• When a display other than the “AUTO OPN. MODE <PLACEMENT>”

display is on the screen during automatic operation and the machine stops in

an error condition, the operator must find the “AUTO OPN. MODE <PLACE-

MENT>” display and open it to re-start the operation.

This is regulated in the touch-screen operation system for security reason.

However, if the operator follows this regulation, he/she has to go through

many hierarchical tree branches before reaching the “AUTO OPN. MODE

<PLACEMENT>” display, losing precious time before the machine can be

re-started. To avoid this, a substitute display of the “AUTO OPN. MODE

<PLACEMENT>” display is provided to give a series of operations such as

machine re-start instructions and operation, quick shift to the original dis-

play, etc.

Operation Procedure

(1) When the machine is in the “PAUSE” mode and a display other than the

“MAIN MENU” or “AUTO OPN. MODE <PLACEMENT>” display is

on the screen, hold down the [RTN] key for about 1.5 seconds.

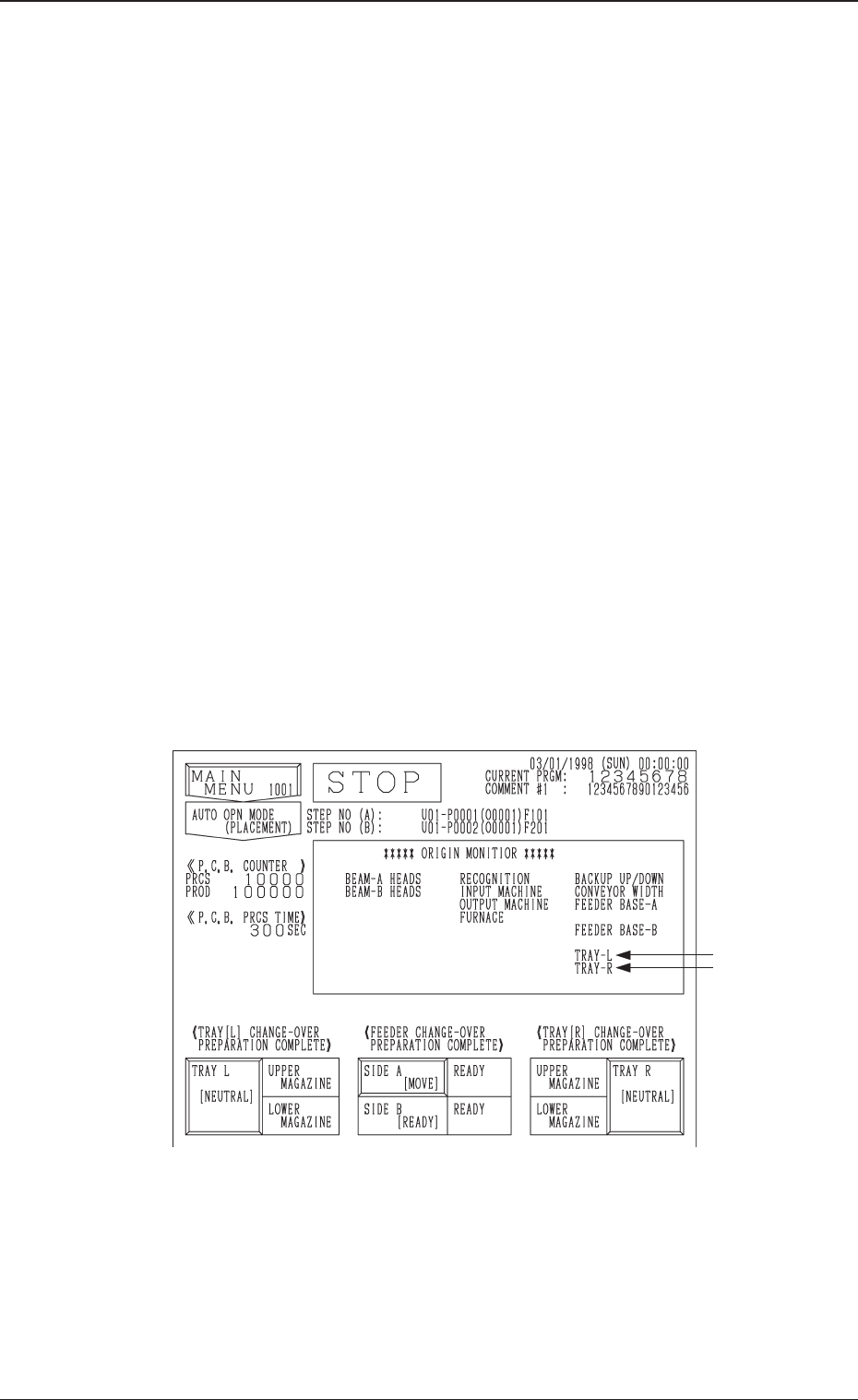

The following substitute display appears on the screen.

Note: The ♦-marked items are optional.

(2) Remove the cause of the error and press the [START] button.

(3) Press the [RTN] key.

The original display (the display before the substitute one was opened)

resumes.

1. One-Touch Jump Function (Jump to Substitute “AUTO OPN. MODE <PLACEMENT>” Display)

0305-001 3-1 Tg0861-PM-MD

♦

Fig. 5C1
