Section5 Electrical Circuit Diagram Interlock Board OUT 0305-001- (M805WBB--0007) 5-17 Tg0861-PM-MD BPC-Axis Pulse Cut BPC-Axis Driving Power Supply Shut-Off Load Power Supply Shut-Off Reserved Reserved Reserved Reserved…
Section5 Electrical Circuit Diagram
Interlock Board IN 1-3
0305-001- (M805WBB--0006) 5-16 Tg0861-PM-MD
Beam Emergency Stop 2
(PAUSE)
XA-Axis Positioning
Completed
YA-Axis Positioning
Completed
XB-Axis Positioning
Completed
YB-Axis Positioning
Completed
Note:
The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).
Connector Board
Connector Board
Connector Board
ZA2-Alarm (Reserved)
Lifted feeder Detection
(Short)
Lifted feeder Detection
A2
Lifted feeder Detection
(Short)
Lifted feeder Detection
B2
P.C.B. Clamp Detection
(Option)
P.C.B. Clamp Detection
Fixed Side (Option)
YA-Axis Slide Origin
YB-Axis Slide Origin
Beam Emergency Stop 3
(EMER)
LA1-Axis Drawing
Interlock
LA2-Axis Drawing
Interlock
LB1-Axis Drawing
Interlock
LB2-Axis Drawing
Interlock
ZB2-Alarm (Reserved)
ZB1-Alarm (Reserved)
Section5 Electrical Circuit Diagram
Interlock Board OUT
0305-001- (M805WBB--0007) 5-17 Tg0861-PM-MD
BPC-Axis Pulse Cut
BPC-Axis Driving Power
Supply Shut-Off
Load Power Supply
Shut-Off
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Note:
The area surrounded by the dashed line belongs to the relay P.C.B. (UA18 & UA19).
Connector Board
Connector Board
XA/YA-Axis Pulse Cut
LA1-Axis Pulse Cut
LA2-Axis Pulse Cut
LB2-Axis Pulse Cut
LB1-Axis Pulse Cut
XB/YB-Axis Pulse Cut
XA/YA-Axis Driving Power
Supply Shut-Off
LA1-Axis Driving Power
Supply Shut-Off
LA2-Axis Driving Power
Supply Shut-Off
LB2-Axis Driving Power
Supply Shut-Off
LB1-Axis Driving Power
Supply Shut-Off
XB/YB-Axis Driving Power
Supply Shut-Off
ZA1-Axis Driving Power
Supply Shut-off (Reserved)
ZA2-Axis Driving Power
Supply Shut-off (Reserved)
ZB1-Axis Driving Power
Supply Shut-off (Reserved)
ZB2-Axis Driving Power
Supply Shut-off (Reserved)

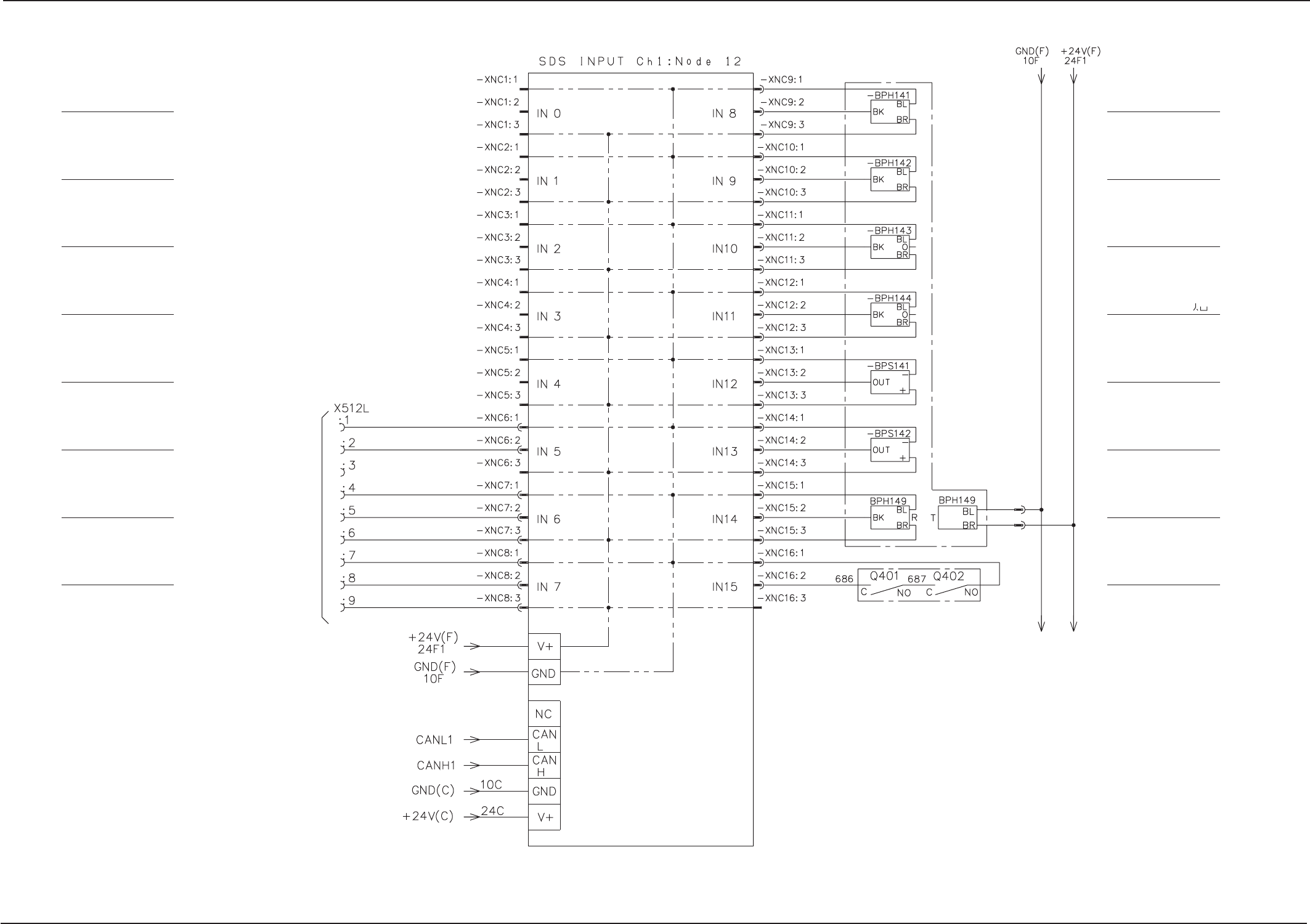

Section5 Electrical Circuit Diagram
SDS IN 1
0305-001- (M805WBB--0008) 5-18 Tg0861-PM-MD
L Conveyor P.C.B.
Detection L
L Conveyor P.C.B.
Detection C
L Conveyor P.C.B.
Detection R
P Conveyor P.C.B.
Detection L
P.C.B. Stopper L Upper
Limit
P.C.B. Stopper L Lower
Limit
P.C.B. Support Pin Detection
(Front Reference)
Traverse Axis
Circuit Breaker OFF
Reserved
Reserved
Reserved
Reserved
Reserved
Extended EL Conveyor
Existence Detection
(Option)
Extended EL Conveyor
P.C.B. Detection L
(Option)
Extended EL Conveyor
P.C.B. Detection R
(Option)
To the extended EL
conveyor (Option)
BL Block
N Block
