Section 7 Parts Location Tg0861-PM-MD Layout of P .C.B. Rack 0305-001-(M805YBC--0003) 7-14 U931 (2ch) Serial I/F U996 Motor Control U982 CPU1 UA14 CRT Reserved UA15 Memory U930 (6ch) Serial I/F (OP) Counter (OP) GEM (OP)…

Section 7 Parts Location

Tg0861-PM-MD

Layout 2 of Control Box

0305-001-(M805YBC--0002) 7-13

Section 7 Parts Location

Tg0861-PM-MD

Layout of P.C.B. Rack

0305-001-(M805YBC--0003) 7-14

U931 (2ch) Serial I/F

U996 Motor Control

U982 CPU1

UA14 CRT

Reserved

UA15 Memory

U930 (6ch) Serial I/F (OP)

Counter (OP)

GEM (OP)

UA17 CPU3

U996 Motor Control

Reserved

UA21 SDS Board

U996 Motor Control

UA13 S-Shaped Motor Control

U983 CPU2

UA11 Interlock

UA02 Recognition CPU

UA02 Recognition Image Processing

U929 I/O Board

Reserved

Note:

Surrounded by are the back plane.

: Back Plane Jumper Short Pins

(Those surrounded by a broken line are also jumper short pins.)

Section 7 Parts Location

Tg0861-PM-MD

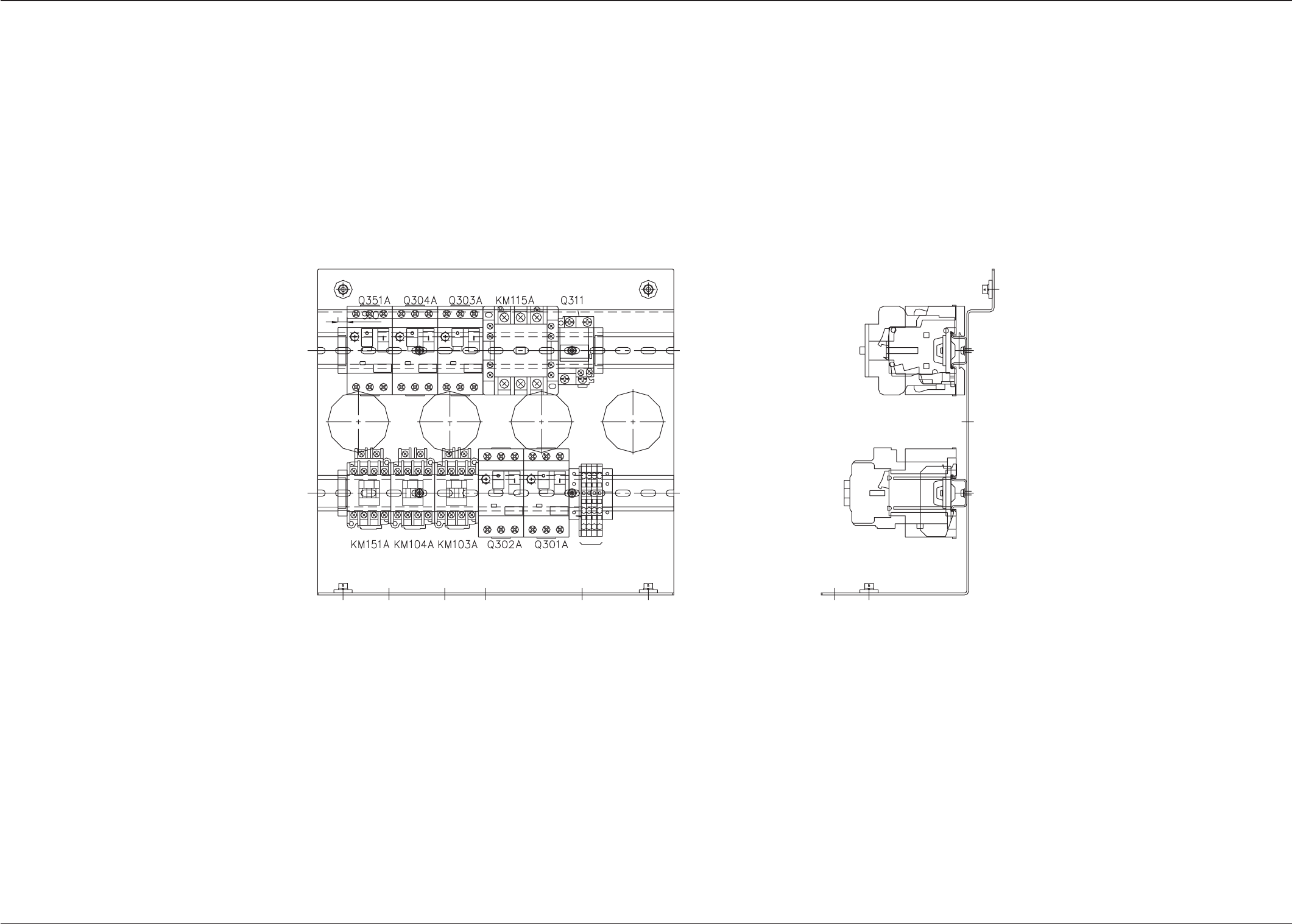

Layout of Driver A Panel

0305-001-(M805YBD--0001) 7-15
