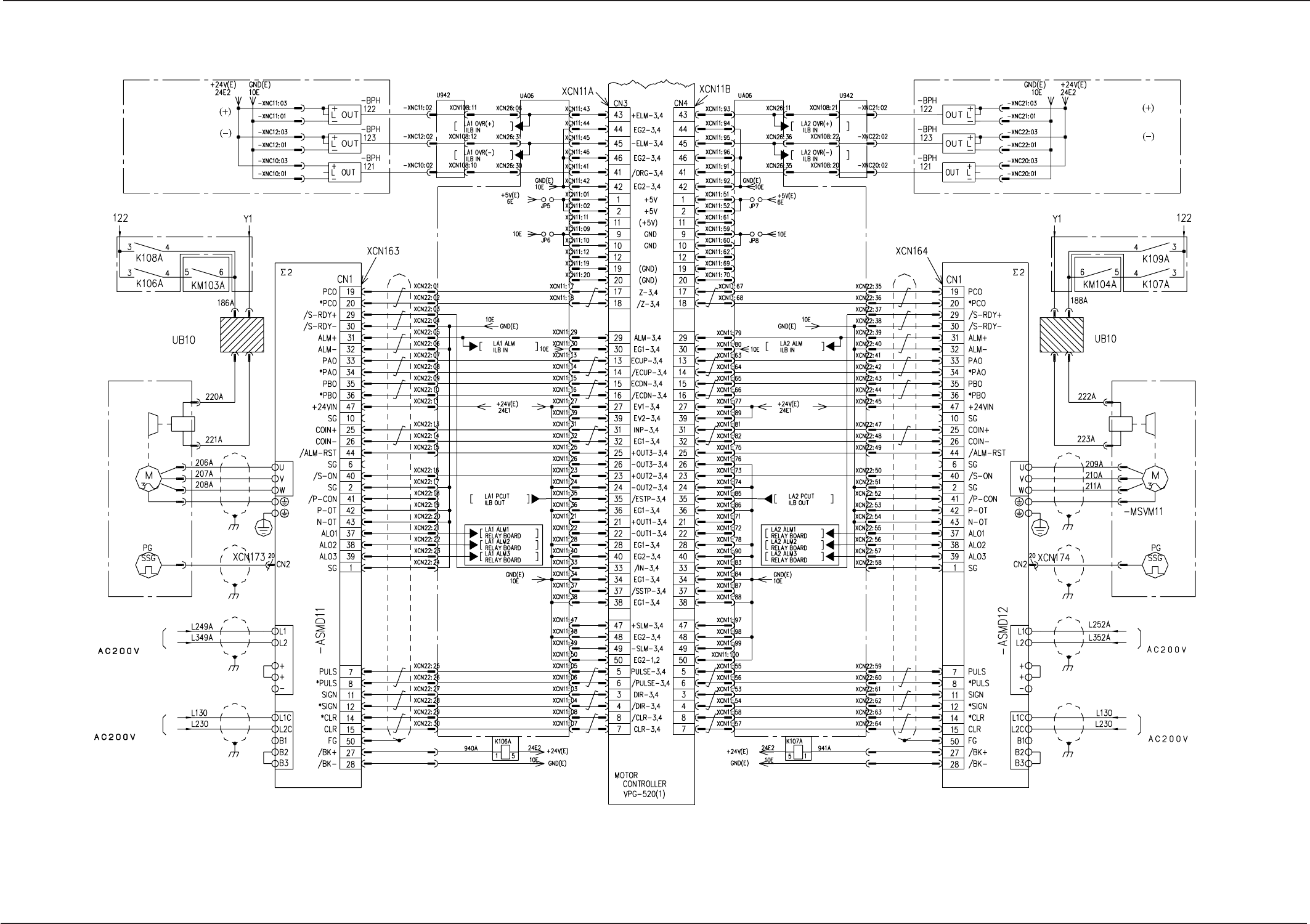

Section5 Electrical Circuit Diagram 0305-001A (M805WBD--0001) 5-39 Tg0861-PM-MD XA/Y A Control Board 1-1 Encoder XA-Axis Limit XA-Axis Limit XA-Axis Slide Origin C (A) Block BD Block C (A) Block XA-Axis Servomotor Main C…
Section5 Electrical Circuit Diagram
0305-001- (M805WBC--0009) 5-38 Tg0861-PM-MD
COGNEX 4600 Connection Diagram 3
Recognition
Board
BB Block
Track Ball
(Beam B Side)
Connector for
Debugging
LED Lighting
Control Board
Conveyor 2 Box
BL Block
A Beam Side
Connector for
Track Ball
BB Block
Recognition Monitor
Control Box
Interlock Board
BL Block
LED Lighting
Control Board
Conveyor 2 Box
Section5 Electrical Circuit Diagram
0305-001A (M805WBD--0001) 5-39 Tg0861-PM-MD
XA/YA Control Board 1-1
Encoder
XA-Axis Limit
XA-Axis Limit
XA-Axis Slide Origin
C (A) Block
BD Block
C (A) Block
XA-Axis Servomotor
Main Circuit
Power Supply
Control Circuit
Power Supply
Shielded
1st Axis
Shielded
2nd Axis
BD Block
YA-Axis Servomotor
Encoder
Main Circuit
Power Supply
Control Circuit
Power Supply
C (A) Block
YA-Axis Slide Origin
To the counter board
(Converyor 2 Box)
YA-Axis Limit
YA-Axis Limit
C (A) Block
Mechanism Distribution
Board
Relay
Connector
Board
Section5 Electrical Circuit Diagram
0305-001- (M805WBD--0002) 5-40 Tg0861-PM-MD
LA1/LA2 Control Board 1-2
BD Block
Brake P.C.B
LA1-Axis Limit
LA1-Axis Limit
LA-Axis Slide Origin
MB (A) Block
MB (A)
Block
BG Block
Brake
LA1-Axis Servomotor
Main Circuit
Power Supply
Control Circuit
Power Supply
BD Block
Encoder
BD Block
BH Block
Shielded
3rd Axis
4th Axis
BH Block
Shielded
LA2-Axis Servomotor
Encoder
Main Circuit
Power Supply
Control Circuit
Power Supply
Brake
MC(A) Block
LA2-Axis Limit
LA2-Axis Limit
LA2-Axis Slide Origin
MC (A) Block
BG Block
BD Block
(from F152)
(from F152)
Brake P.C.B
Mechanism Distribution
Board
Relay Connector
Board
Relay Connector
Board
Mechanism Distribution
Board
