APC SOFTWARE SETUP AND REC OMMENDED SETTINGS SOFTWARE SETUP PARAMETERS 2.4 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16 Snugging Force When the board is fed into the machine and the snugger operates, the boar…
APC SOFTWARE SETUP AND RECOMMENDED SETTINGS
SOFTWARE SETUP PARAMETERS
Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 2.3

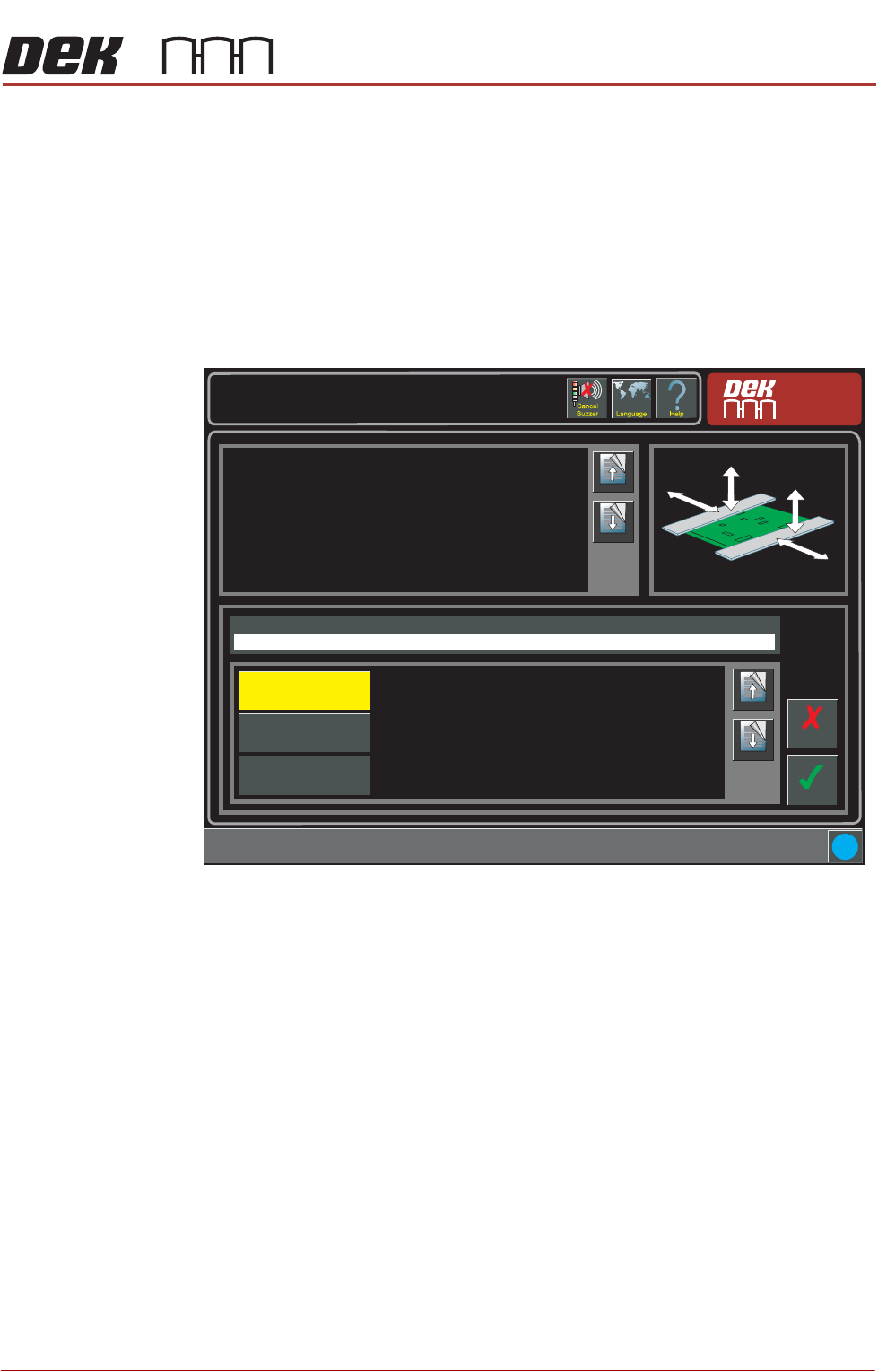

Clamp Mode The Clamp Mode parameter sets the operational mode of the APC system. The
options are:
• Snug
•Clamp
• Snug and Clamp
NOTE
See Operational Mode Sequences in the All Purpose Clamping chapter of this
manual for details.
Setup \ Tooling
Page Up
Page
Down
This parameter is used to select the mode of operation:
Snug - the mode of securing the product by snugging it on its edges.
Clamp - the mode of securing the product by bring the foil section of the
clamp down onto the top of the product.
Snug and Clamp - a combination of snugging and clamping.
Accept
Cancel
APC Clamp Mode
Snug
Page Up
Page
Down
Snug
Clamp
Snug and Clamp
i
APC SOFTWARE SETUP AND RECOMMENDED SETTINGS
SOFTWARE SETUP PARAMETERS
2.4 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16

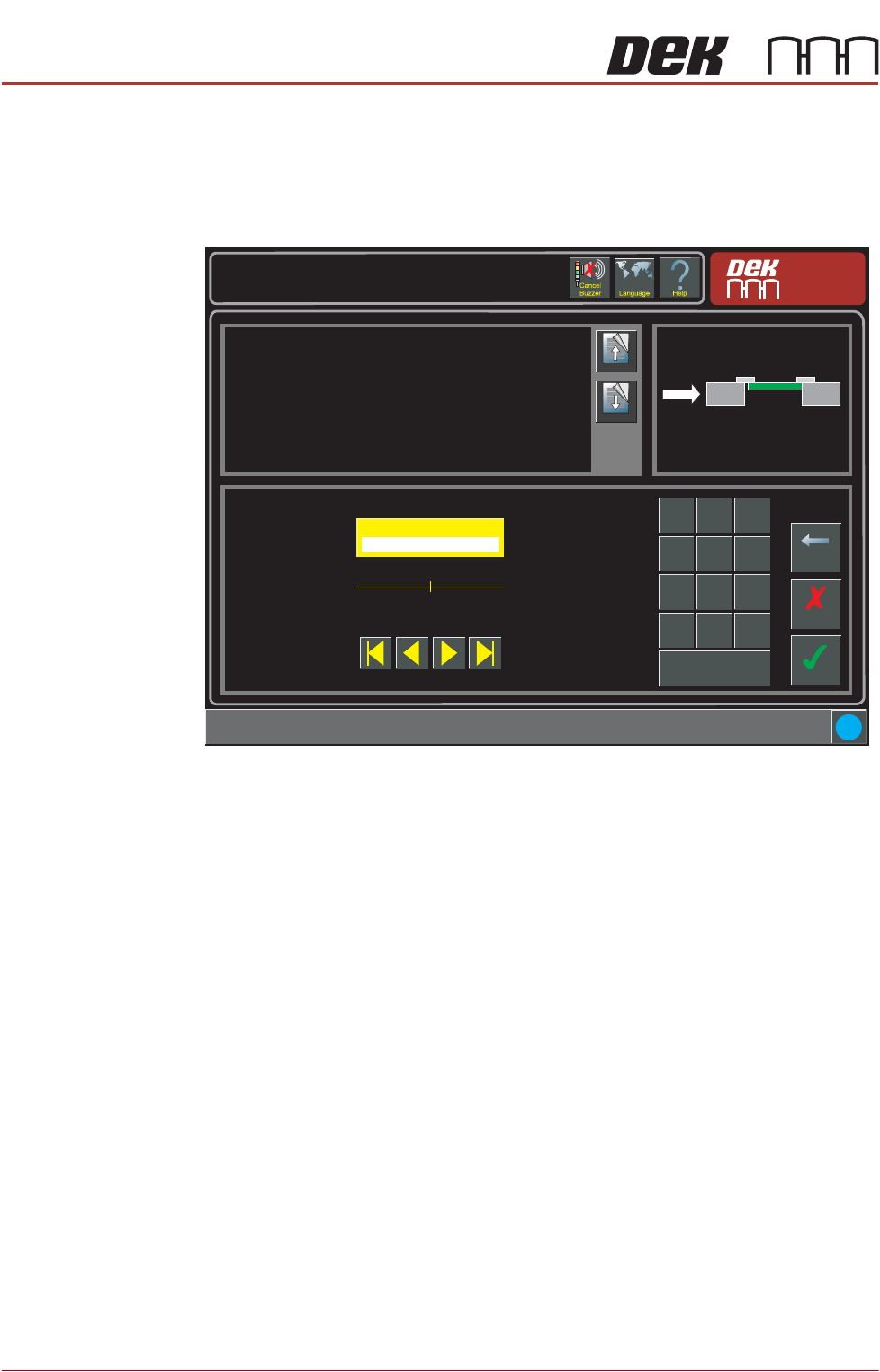

Snugging Force When the board is fed into the machine and the snugger operates, the board is
retained. A minimum of 20 and maximum of 60 newtons can be set.
NOTE
The snugging force torque values must be calibrated before applying this
parameter. See Calibration later in this chapter for details.
Setup \ Tooling
Page Up
Page
Down
This parameter sets the force applied by the snugger to hold the board in
place whilst printing.
Additional information:
Ensure that the torque values have been properly calibrated before applying
this parameter.
Accept
Cancel
Snugging Force ( newtons )
40
Backspace
Min
20
Max
60
7
8 9
4
5
6
1 2
3
0
.
+/-
Apply
i
APC SOFTWARE SETUP AND RECOMMENDED SETTINGS
SOFTWARE SETUP PARAMETERS
Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 2.5
Clamp Pressure The over the top clamp is placed over the board and pressure is applied so that
when the board is fed into the machine and the snugger operates, the top of the
board is held level with the snugger. A minimum of 1.5 and maximum of 5 bar
can be set, 1.5 bar of pressure is required to overcome the balance valve.
Setup \ Tooling
Page Up
Page
Down
This parameter represents the pressure applied to flatten the board before
snugging.
Accept
Cancel
Clamp Pressure ( bar )
3.0
Backspace
Min
1.5
Max
5.0
7
8 9
4
5
6
1 2
3
0
.
+/-
Apply
i
