ALL PURPOSE CLAMPING (APC) REPLACEMENT PROCEDURES Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 1.49 Replace 1. Apply thread lock compound to the 4 M3 cap head screws. 2. Position snug bar and loosely attach u…
ALL PURPOSE CLAMPING (APC)
REPLACEMENT PROCEDURES
1.48 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16
Front Snug Bar Replacement
Remove 1. Ensure the Prepare for Replacement procedure has been completed.
2. Remove the board clamp foil as detailed in Board Clamp Foil Replacement
- Remove.
3. Remove the top plate as detailed in Top Plate Replacement - Remove.
4. Using a 2.5mm Allen key, remove the cap head screws from the snug bar.
5. Remove the snug bar.
Front Snug Bar
Cap Head Screws
(4 positions)
ALL PURPOSE CLAMPING (APC)
REPLACEMENT PROCEDURES
Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 1.49
Replace 1. Apply thread lock compound to the 4 M3 cap head screws.
2. Position snug bar and loosely attach using the 4 M3 cap head screws.
3. Insert a 0.5mm feeler gauge between the up-stands on the mid plate and
the back of the snug bar. Butt the snug bar up against the feeler gauge and
fully tighten the cap head screws.
4. Install the top plate as detailed in Top Plate Replacement - Replace.
5. Install the board clamp foil as detailed in Board Clamp Foil Replacement -
Replace.
6. Complete the After Replacement Procedures.
Feeler Gauge
Snug Bar
Up-Stands
(2 positions)
ALL PURPOSE CLAMPING (APC)
REPLACEMENT PROCEDURES
1.50 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16

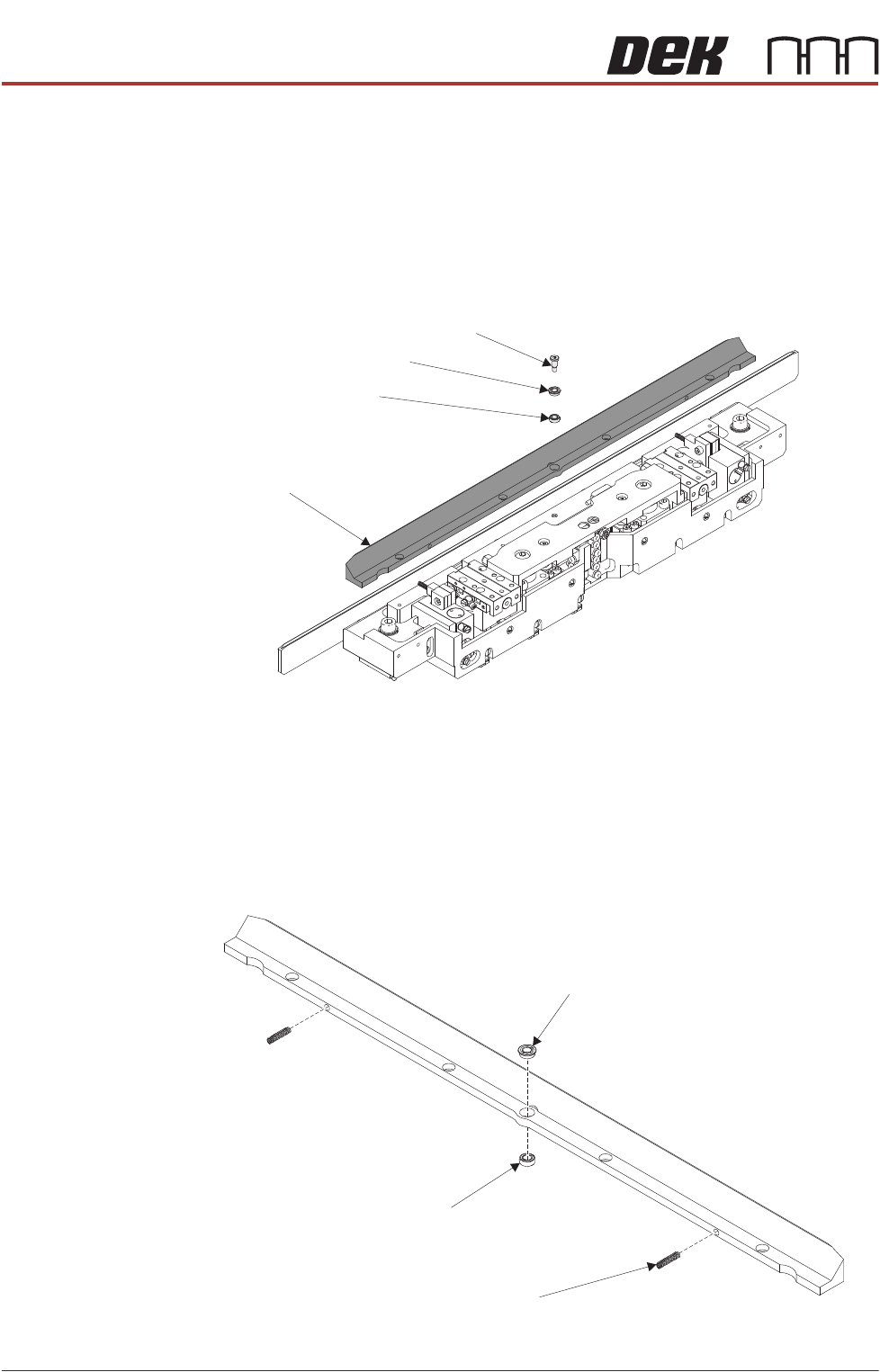

Rear Snug Bar Replacement
Remove 1. Ensure the Prepare for Replacement procedure has been completed.
2. Remove the board clamp foil as detailed in Board Clamp Foil Replacement
- Remove.
3. Remove the top plate as detailed in Top Plate Replacement - Remove.
4. Using a 2.5mm Allen key, remove the shoulder screw from the snug bar.
5. Remove the bearings. Remove the snug bar.
NOTE
When removing the snug bar ensure that the 2 springs fitted into the rear of
the snug bar are removed. Ensure the springs are not left behind inside the
mid plate.
Replace 1. Press fit the bearings into the snug bar.
Rear Snug Bar
Shoulder Screw
Flange Bearing
Bearing
Bearing
Spring
(2 positions)
Flanged Bearing
