APC SOFTWARE SETUP AN D RECOMMENDED SETTIN GS SOFTWARE SETUP PARAMETERS Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 2.3 Clamp Mode The Clamp Mode parameter set s the operational mode of the APC system. The o…
APC SOFTWARE SETUP AND RECOMMENDED SETTINGS
SOFTWARE SETUP PARAMETERS
2.2 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16
SOFTWARE SETUP PARAMETERS

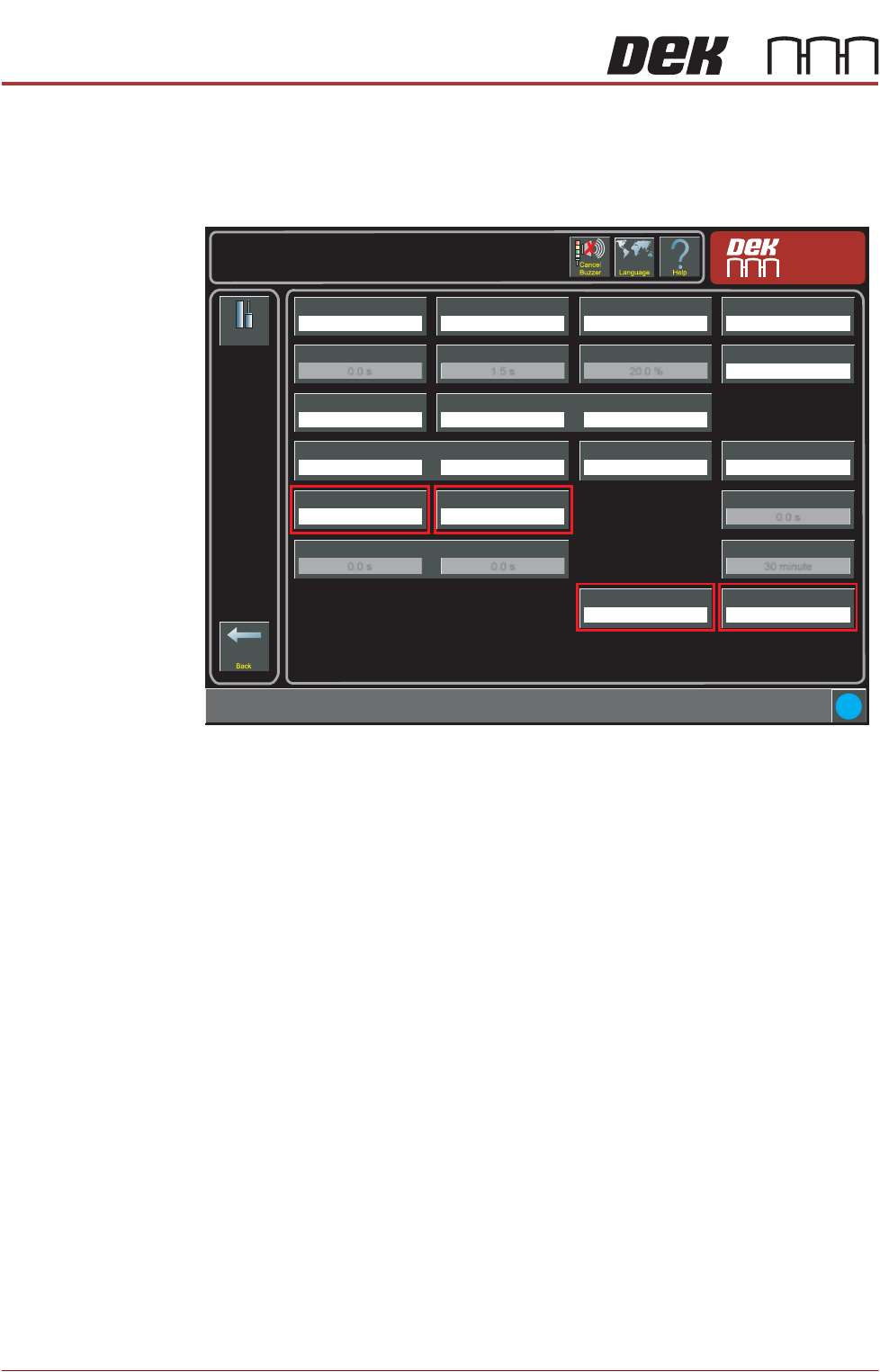

There are four APC related process parameters to be configured; APC Clamp
Mode, Snugging Force, Clamp Pressure and OTS Vacuum Mode. These are all
found on the Setup -> Tooling page.
Setup
Tooling
Tooling Type
Vacuum
Board Stop X
50.0 mm
Setup \ Tooling
Board Stop Y
66.0 mm
Under Clearance
19.0 mm
Right Feed Delay
0.0 s
Vacuum Sensor Delay
1.5 s
Tooling Deviation
20.0 %
Board Run On Period
0.3 s
Print Gap
0.000 mm
Separation Speed
5.0 mm/s
Separation Distance
3.0 mm
Board Length
100.0 mm
Board Width
100.0 mm
Board Thickness
2.0 mm
Board Stop Retract Delay
0.0 s
Snugging Force
20 newtons
Clamp Pressure
3.0 bar
Vacuum Decay Delay
0.0 s
Flatten Vac Delay
0.0 s
Separate Vac Delay
0.0 s
Stop After Idle
30 minute
APC Clamp Mode
Snug
OTS Vacuum Mode
Before
i
APC SOFTWARE SETUP AND RECOMMENDED SETTINGS
SOFTWARE SETUP PARAMETERS
Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 2.3
Clamp Mode The Clamp Mode parameter sets the operational mode of the APC system. The
options are:
• Snug
•Clamp
• Snug and Clamp
NOTE
See Operational Mode Sequences in the All Purpose Clamping chapter of this
manual for details.
Setup \ Tooling
Page Up
Page
Down
This parameter is used to select the mode of operation:
Snug - the mode of securing the product by snugging it on its edges.
Clamp - the mode of securing the product by bring the foil section of the
clamp down onto the top of the product.
Snug and Clamp - a combination of snugging and clamping.
Accept
Cancel
APC Clamp Mode
Snug
Page Up
Page
Down
Snug
Clamp
Snug and Clamp
i
APC SOFTWARE SETUP AND RECOMMENDED SETTINGS
SOFTWARE SETUP PARAMETERS
2.4 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16
Snugging Force When the board is fed into the machine and the snugger operates, the board is
retained. A minimum of 20 and maximum of 60 newtons can be set.
NOTE
The snugging force torque values must be calibrated before applying this
parameter. See Calibration later in this chapter for details.
Setup \ Tooling
Page Up
Page
Down
This parameter sets the force applied by the snugger to hold the board in
place whilst printing.
Additional information:
Ensure that the torque values have been properly calibrated before applying
this parameter.
Accept
Cancel
Snugging Force ( newtons )
40
Backspace
Min
20
Max
60
7
8 9
4
5
6
1 2
3
0
.
+/-
Apply
i
