All Purpose Clamping (APC) Manual

MANUAL SCOPE

ALL PURPOSE CLAMPING (APC)

This manual is a complementary supplement to your machine’s documentation. It provides technical,

operating and safety information with advice relevant to its subject. For information regarding general

and specific machine technical, operating and safety information, refer to the relevant machine

documentation.

IMPORTANT NOTICE

Only items detailed in the Replacement Procedures section of this manual are user serviceable. The

remainder of the modules/items described in this manual do not contain user serviceable parts. Any

attempt to disassemble parts invalidates all warranty agreements. Modules must be serviced by a

suitably qualified ASM trained engineer.

All Purpose Clamping (APC) Manual

ALL PURPOSE CLAMPING (APC)

OVERVIEW

Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 1.1

CHAPTER 1 ALL PURPOSE CLAMPING (APC)

OVERVIEW

The All Purpose Clamping (APC) system is a substrate management system

that provides multiple clamping and holding options to assist in the processing

of various types of PCB’s that can pass through the DEK screen printer.

The APC system enables clamping of the PCB in three software selectable

modes:

1. Snug Only - the PCB is clamped on the sides, or ends, after first being

flattened into position by the Over The Top (OTT) foils (which are retracted

ahead of the print cycle).

2. Clamp Only - the PCB is clamped using traditional OTT clamping.

3. Snug and Clamp - the PCB is OTT clamped and snugged.

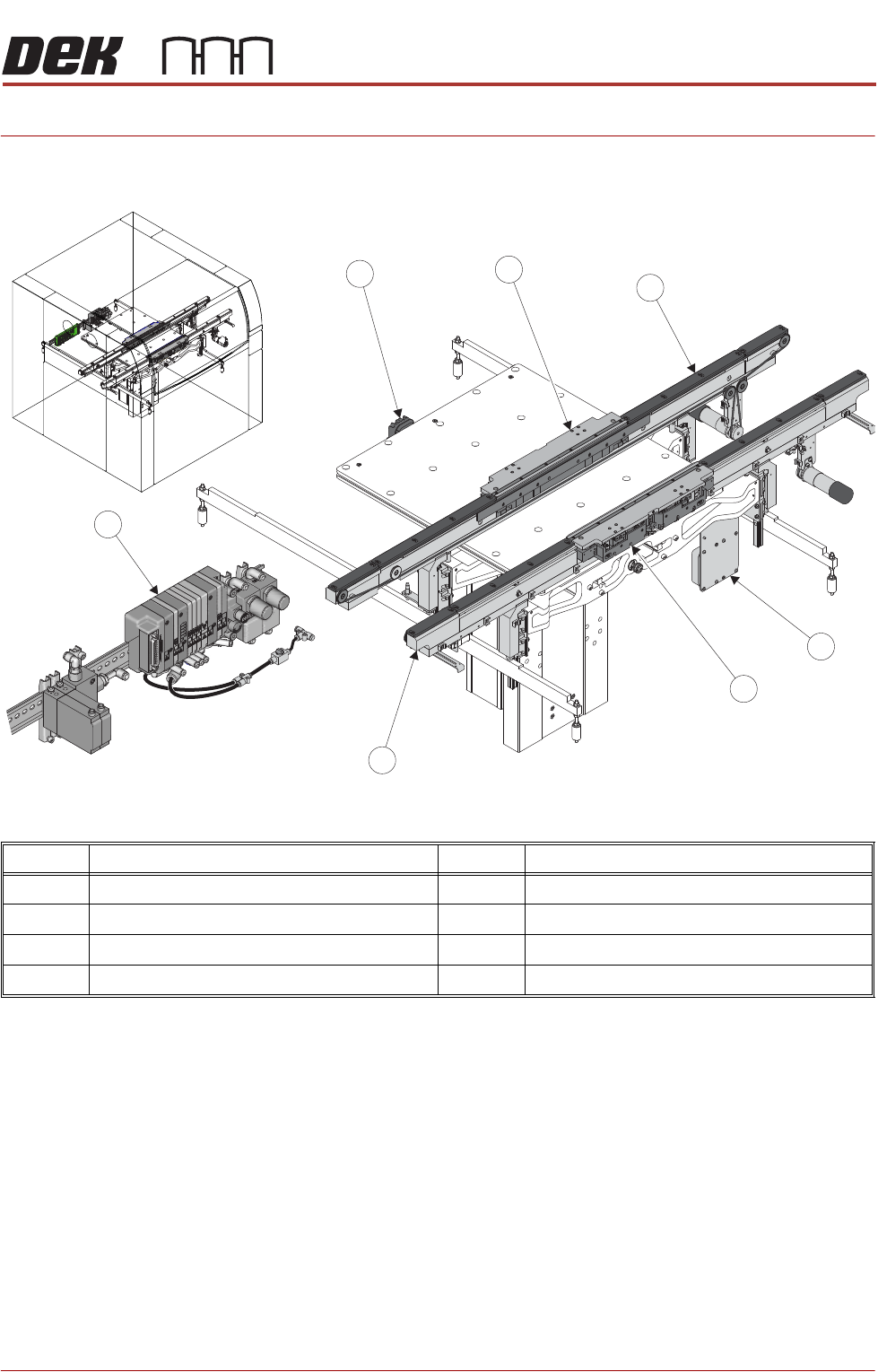

Item Description Item Description

1 Rear APC Module 5 Front Modular Transport Rail (MTR)

2 Rear Modular Transport Rail (MTR) 6 APC Pneumatic Control Rail

3 MTR Circuit Housing 7 Snug/Rail Width Motor

4 Front APC Module
