ALL PURPOSE CLAMPING (APC)
REPLACEMENT PROCEDURES
1.72 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16
4. Locate the pneumatic manifolds and the pneumatic connections at the rear
of the APC module.
5. Disconnect the pneumatic connectors; to remove, push the collar in while
simultaneously pulling the tube out.
6. Remove pneumatic tubing and sensor loom from module mounted cable
ties.
7. Follow sensor loom, and disconnect 8PL235 (front APC module)/8PL236
(rear APC module) from its socket.
8. Locate the two M5 x 20 screws under the APC module, that hold it to the rail.
9. Remove the screws and lift the unit free of the rail.
Retract Sensor
Pneumatic Connections
A
Retract Sensor Loom (Grey)
3A Clamp Extend (Red)
3B Clamp Retract (Red)
2 Mid Plate Down (Blue)
4B Z Clamp On (Black)
1 Mid Plate Up (Blue)
4A Z Clamp Off (Black)
View on A
View on Underside of APC Module
ALL PURPOSE CLAMPING (APC)
CALIBRATIONS
Chapter Issue 1 Nov 16 All Purpose Clamping (APC) Manual 1.73
CALIBRATIONS
Board Transport
Belt Speed
NOTE
Where the printer is connected to inline equipment, make sure that the FMI
functionality is turned OFF before proceeding.
The front and rear board transport belts are driven independently by two
variable speed motors. Inevitably, one motor drives faster than the other motor.
It is necessary to calibrate these motors so that they drive at the same speed.
Feeder motor speed is measured using a tachometer on the input or output
pulley and adjusted by a potentiometer control on each motor.
1. Remove the right hand safety cover to gain access to the transport belt
motors.
2. Select Maintenance.
3. Select Diagnostics.
4. Use Next or Previous to highlight Rail System.
5. Select Select Module.
6. Use Next or Previous to highlight Rail System.
7. Select Run Diagnost.
The following window is displayed:
NOTE
Belt Speed Calibration figures displayed on this page have no relevance to
the belt speeds on the machine.
8. Select Front L 2 R Speed.
9. Select Incr. or Decr. to start the belts.
Belt Speed Calibration
64
64
64
64
64
64
64
64
FRONT L 2 R SPEED
FRONT R 2 L SPEED
REAR L 2 R SPEED
REAR R 2 L SPEED
FRONT L 2 R ALT SPEED
FRONT R 2 L ALT SPEED
REAR L 2 R ALT SPEED
REAR R 2 L ALT SPEED
ALL PURPOSE CLAMPING (APC)
CALIBRATIONS
1.74 All Purpose Clamping (APC) Manual Chapter Issue 1 Nov 16
10. Using a tachometer fitted with the surface speed test wheel, positioned on
the input or output pulley of the front belt motor, measure the speed of the
motor left to right.
11. Ensure that a speed of 29 to 31 m/min is achieved.
12. Repeat steps 10 and 11 for Front R 2 L Speed, Rear L 2 R Speed and Rear
R 2 L Speed.
13. In the table highlight Front L 2 R ALT Speed.
14. Using a tachometer fitted with the surface speed test wheel, positioned on
the input or output pulley of the front belt motor, measure the speed of the
motor left to right.
15. Select Incr. or Decr. to adjust the motor speed to achieve 14 to 16 m/min.
16. Repeat steps 14 and 15 for Front R 2 L ALT Speed, Rear L 2 R ALT Speed
and Rear R 2 L ALT Speed.
17. If adjustment is required, remove the belt speed adjuster cap on the appropi-
ate motor and adjust using a suitable trimming tool.
18. Select Next.
19. Select Incr. or Decr. to start the belts running left to right.
20. Ensure that a speed of 29 to 31 m/min is achieved for both the front and
rear belts.
NOTE
There is no separate adjustment between left to right and right to left. If the
above speed is not achievable in both directions, the motor may be faulty.
21. Select Exit.
22. Select Exit.
23. Select Back.
24. Refit the safety cover.

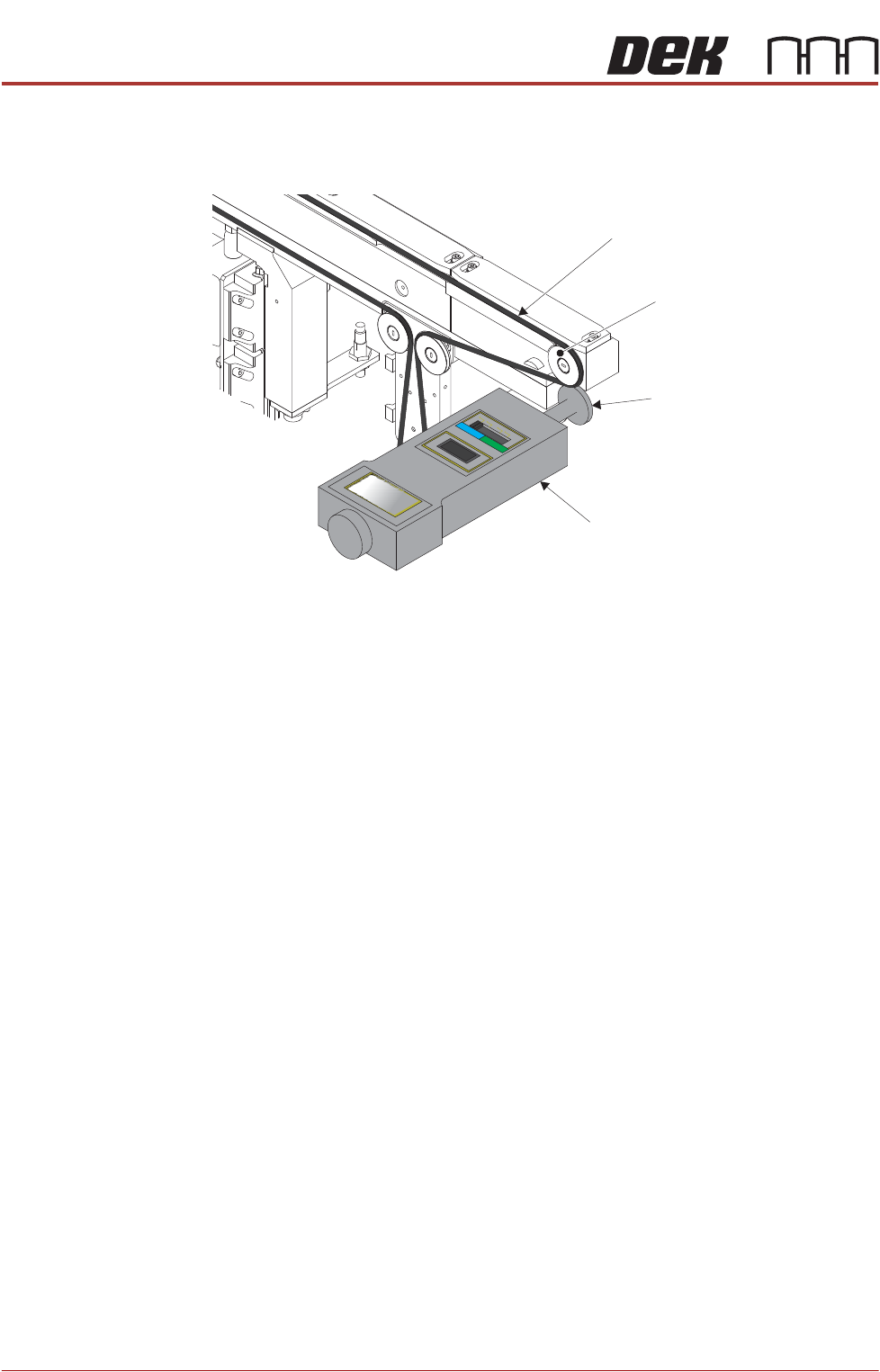

Conveyor Belt
Output Pulley
Tachometer
Surface Speed Test Wheel
View on Rear Conveyor Belt
