3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer

3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN

NOTE

If you install SIPLACE Explorer V.2.1 on the same computer as the previous version of

SIPLACE Explorer, you will be able to use both versions to generate applications and for

configuration purposes. However, both versions can not be run simultaneously to monitor

production data. Since SIPLACE Explorer V.2.1 Runtime Environment is automatically

started as a Windows service, you will need to terminate this program before you can monitor

production data with the previous version.

However, we do not recommend this type of installation! 3

– J2SE Runtime Environment 5.0.07 (see page 24)

Before you install SIPLACE Explorer V2.1, make sure that Java 2 SE 5.0 update 7 has been

installed on your computer. Install Java 2 SE 5.0 on the same computer as SIPLACE

Explorer V.2.1. 3

– Bundled Web Server Installation (see page 37)

The software components required for the web server are installed with this option. The

system will be checked for the required software components and their versions. You will

see the result of this check in a notifications window and can then install any missing

components via this option. 3

The following software components are included in the Bundled Web Server installation and

will be installed when required: 3

– Tomcat 5.5.9 (see page 39)

If you wish to install a configuration with web release, you will also need to install the

option Tomcat 5.5.9. Tomcat 5.5.9 is necessary for making websites available via

SIPLACE Explorer V.2.1 Runtime Environment and SIPLACE Explorer V.2.1 Factory

Configuration Utility. 3

NOTE

Before installing Tomcat 5.5.9, make sure that all versions of Tomcat < 5.5 have been

uninstalled. Use the Apache Tomcat uninstallation programm via the Windows menu

Start → Programs → Apache Tomcat 5.5 → Uninstall Tomcat. 3

– J2SE Runtime Environment 5.0.07 (see page 24)

Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer

Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1

– MS XML Core Services 4.0 SP2 (see page 45)

Install these components if you wish to generate factory reports and reports for certain

production lines. 3

– Microsoft Internet Explorer 6.0

Microsoft Internet Explorer 6.0 is required to view and edit websites. 3

– MSDE 2000 (see page 48)

Install this component if you do not wish to work with MS SQL Server 2000. Install MSDE

2000 on the computer on which the system databases are to be installed. 3

– Adobe Reader 6.0

This component is needed for reading the SIPLACE Explorer V.2.1 documentation. 3

– SIPLACE Explorer V.2.1 options:

The two options Backflush V1.0 and SIPLACE Traceability Option V1.0 are not included in

the SIPLACE Explorer V2.1 delivery package and must be ordered (installed) separately.3

3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer

3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN

3.1.1 Installation of Java J2SE Runtime Environment 5.0

NOTE

You must have Windows administrator privileges to perform installation. 3

→ Place the SIPLACE Explorer CD in your CD-ROM drive.

→ The Start screen will appear.

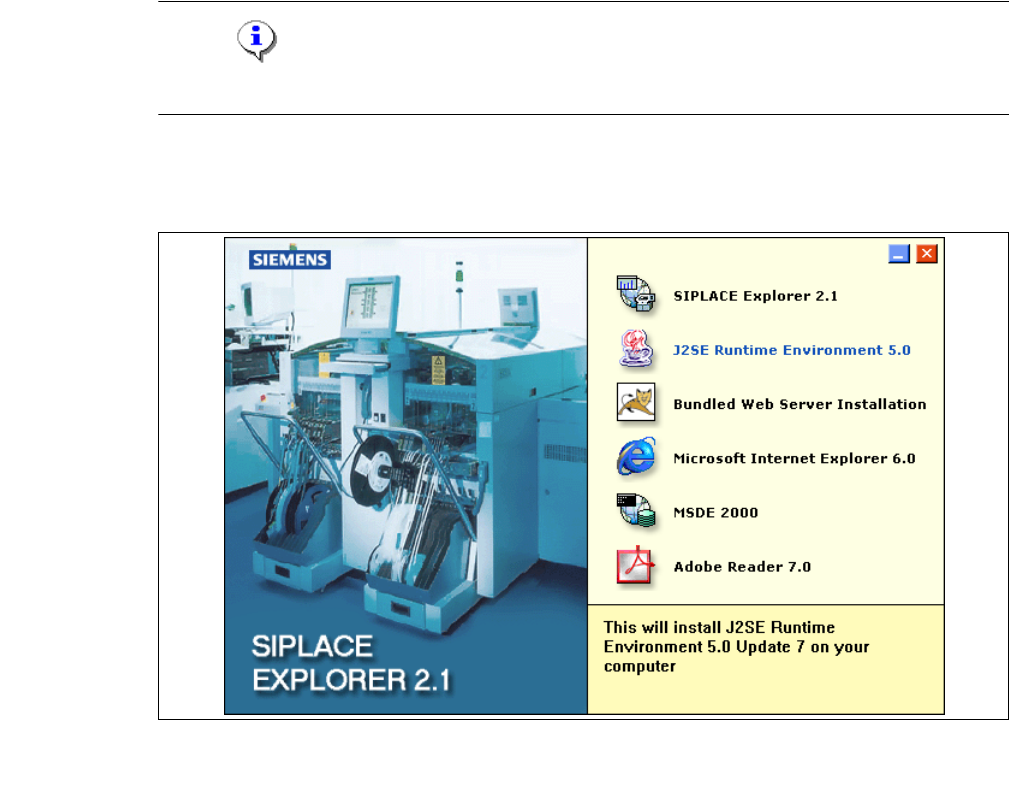

Fig. 3 - 1 SIPLACE Explorer setup - Start screen

→ Select J2SE Runtime Environment 5.0. You will be guided through the Java J2SE installation

procedure.
