3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer 3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN 28 → Select the required browser by enabling the relevant checkb ox.…
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1
27
→ You can alter the default installation folder by using the Change button. The Change Current
Destination Folder dialog box will open.
. 3
Fig. 3 - 6 Java 2SE setup - selecting destination folder
→ Specify the required folder and click OK to confirm your choice. You will return to the Custom
Setup dialog box.
→ To accept the destination folder, click on Next in this window.
→ The Browser Registration dialog box will open. Select the default browser for the application,
here.
3
Fig. 3 - 7 Java 2SE setup - 'browser registration' dialog box
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
28
→ Select the required browser by enabling the relevant checkbox.
→ Click on Next (continue) to begin the actual installation of Java 2 SE.
3

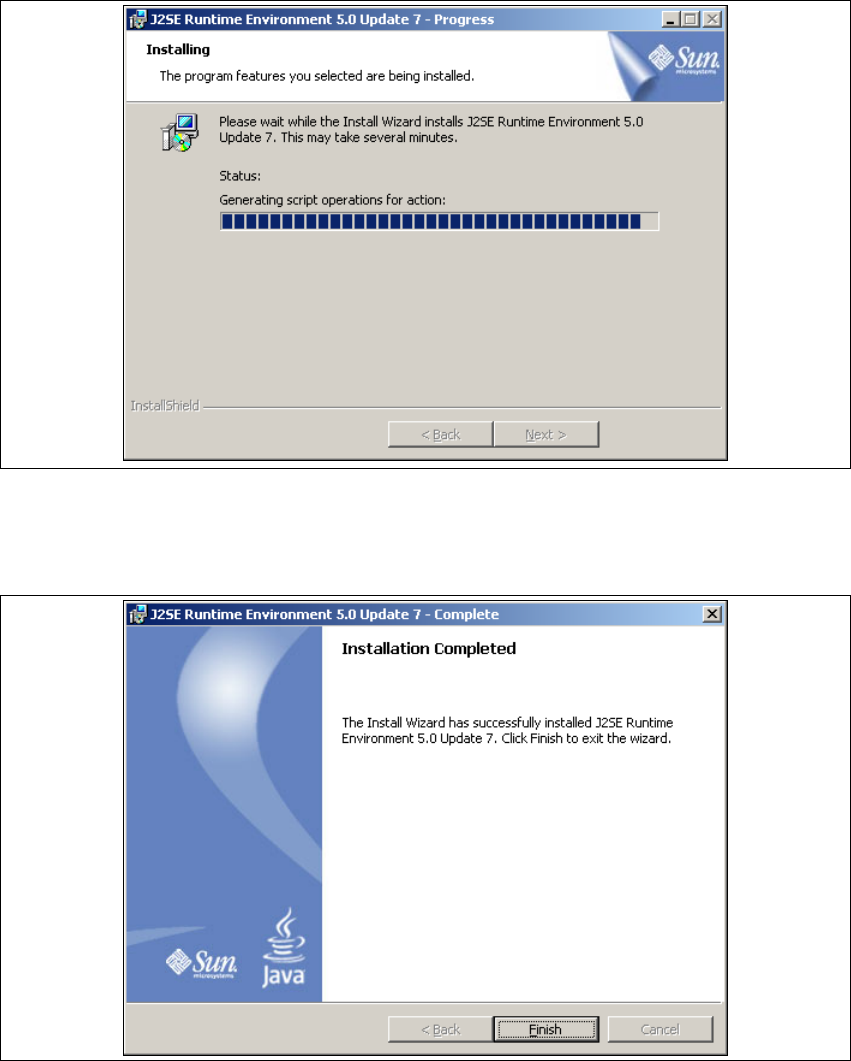

Fig. 3 - 8 Java 2SE setup - installation
→ The selected installation options will be installed in the correct order.
→ Once the installation procedure has finished, the Installation Completed dialog box will open.
3
Fig. 3 - 9 Java 2 SDK setup - installation complete
→ Click on Finish.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1
29
3.1.2 Installation of SIPLACE Explorer 2.1 - Initial Installation
NOTE
You must have Windows administrator privileges to perform installation. 3
→ Place the SIPLACE Explorer CD in your CD-ROM drive. The Start screen will appear.
3

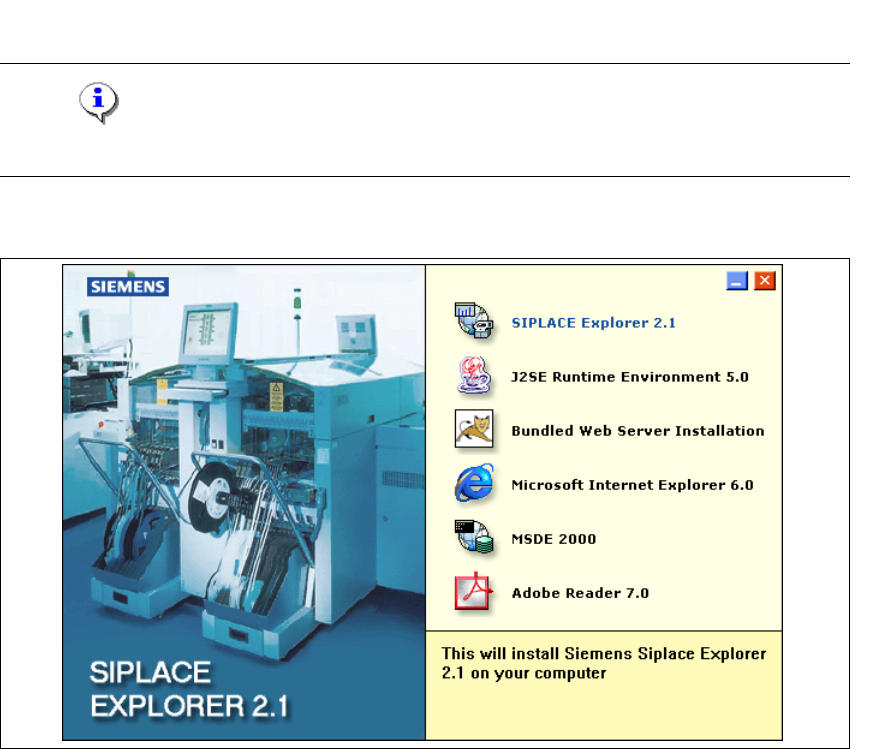

Fig. 3 - 10 SIPLACE Explorer setup - Start screen
→ Select SIPLACE Explorer 2.1.
