Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)
73
→ All production lines available for import from OIS will be shown.
4

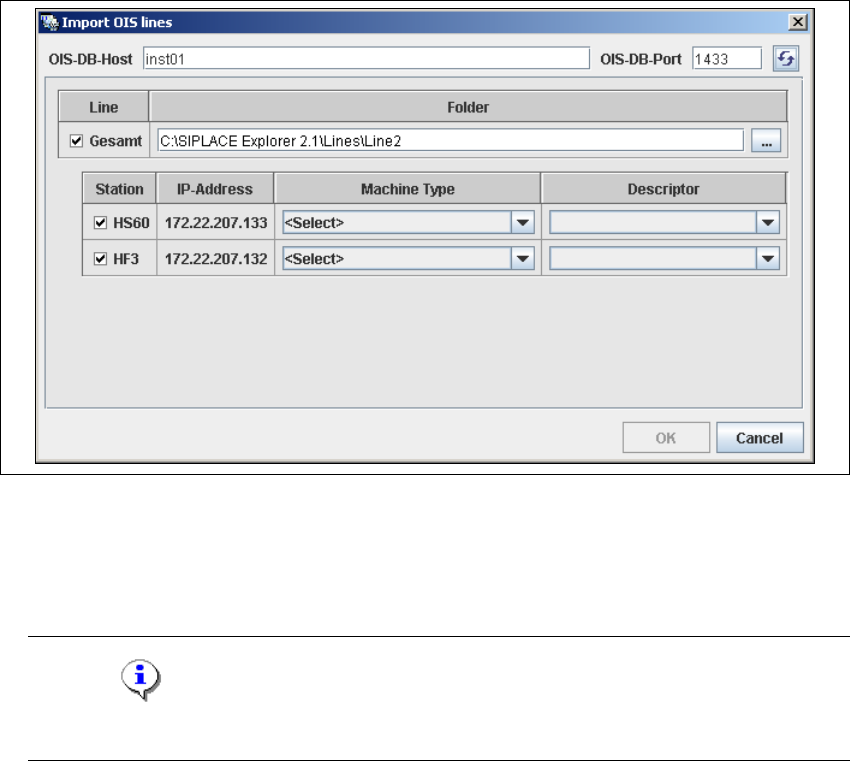

Fig. 4 - 4 Step 1: import OIS lines
→ Now select the relevant machine type for each station and each production line, at Machine
Type. The corresponding OIS driver will then be automatically displayed in the Drescriptor
field.
NOTE
It is assumed that the machine types are known for each production line. 4
→ Once you have entered all settings, confirm your choice with OK.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 11/2006 EN
74
→ The added production lines will be shown in the Line Configuration - Edit Line List dialog
box.
4

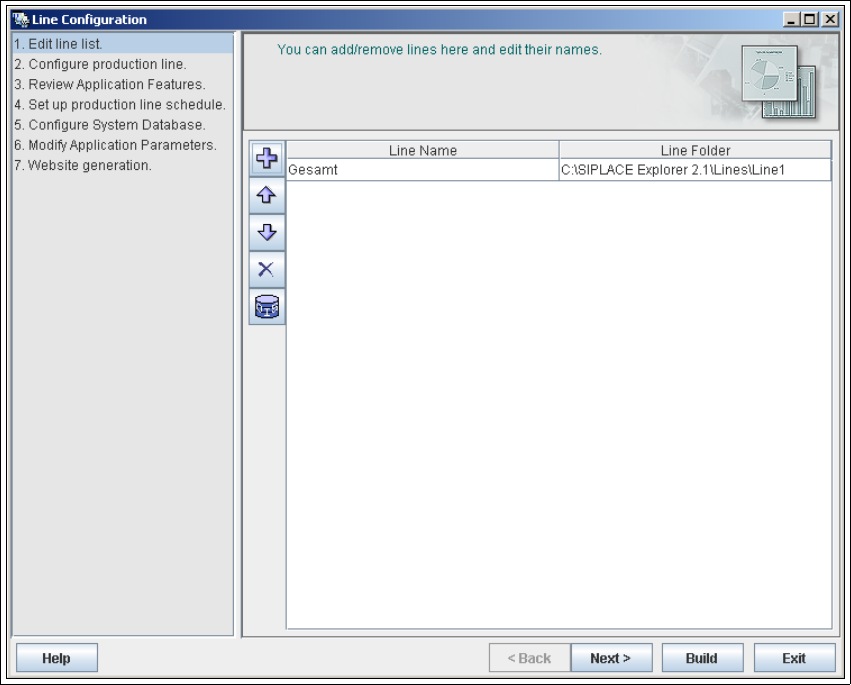

Fig. 4 - 5 Step 1: line list
→ Specify the line name and the path at which the configured monitoring application is to be
stored for this production line. A *.gms file with the configuration settings for this line application
will then be saved at the specified path.
→ Click on Next to continue with the next step.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)
75
4.1.1.3 Step 2 - Configure Production Line
→ This is where you can configure your production line. Select the relevant production line at
Select Line and specify the parameters for access to the SIPLACE OIS database.
→ If you have already configured another application for your production line, you can import the
line configuration from that existing application (.gms file). The equipment information will be
adopted from this imported data.
→ This data will be automatically adopted during line import from the OIS.
4

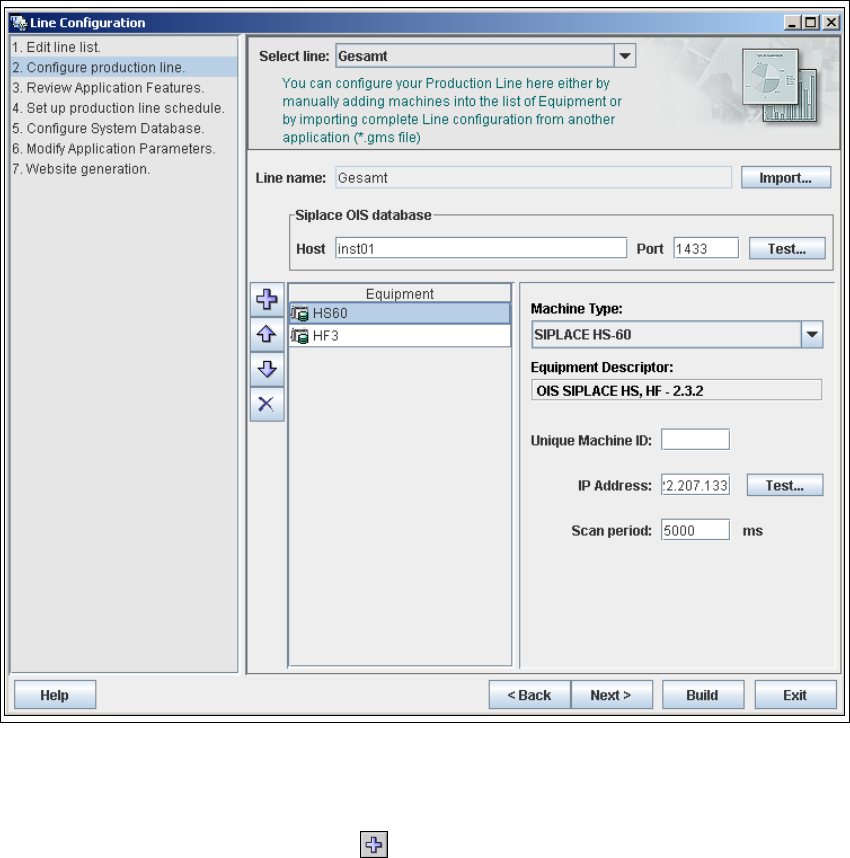

Fig. 4 - 6 Step 2 - configure production line
→ If you have not imported the line configuration from OIS, you will need to manually configure
all machines in the production line. Repeat the procedure for each machine in the line.
– Click on the Add equipment icon in the toolbar. The Select Equipment Descriptor
and Name dialog box will appear.
– Select the equipment description and edit the name for the selected machine.
