Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1 37 3.1.3 Bundled W eb Server Inst allation NOTE Y ou must have Wind…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
36
→ Once the installation procedure has finished, the following dialog box will appear.
3
Fig. 3 - 21 SIPLACE Explorer setup - installation complete
→ Click on Finish. After you have rebooted your computer, SIPLACE Explorer will be available
for use. Follow the instructions at “Starting SIPLACE Explorer” on page 56.
NOTE
After installation of SIPLACE Explorer you must reboot the system. This is necessary to guarantee
that port 1099 is available for Java Runtime Environment. It is rarely possible that port 1099 is
used by another application. If you start SIPLACE Explorer without system restart right after
installation following error message is displayed "SIPLACE Explorer 2.1 runtime not found". 3
3
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1
37
3.1.3 Bundled Web Server Installation
NOTE
You must have Windows administrator privileges to perform installation. 3
→ Place the SIPLACE Explorer CD in your CD-ROM drive. The Start screen will appear.
3
Fig. 3 - 22 SIPLACE Explorer setup - Start screen
→ Select Bundled Web Server Installation. The system will be checked for the following
software components and their versions.
– Tomcat 5.5.9
– Java runtime environment (J2SE RTE 5.0.07)
– MS XML Core services 4.0 SP2
– MS Excel 2000 or 2003
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
38
→ If none of the above mentionedsoftware components are installed on your system, you will
receive the following message:
3

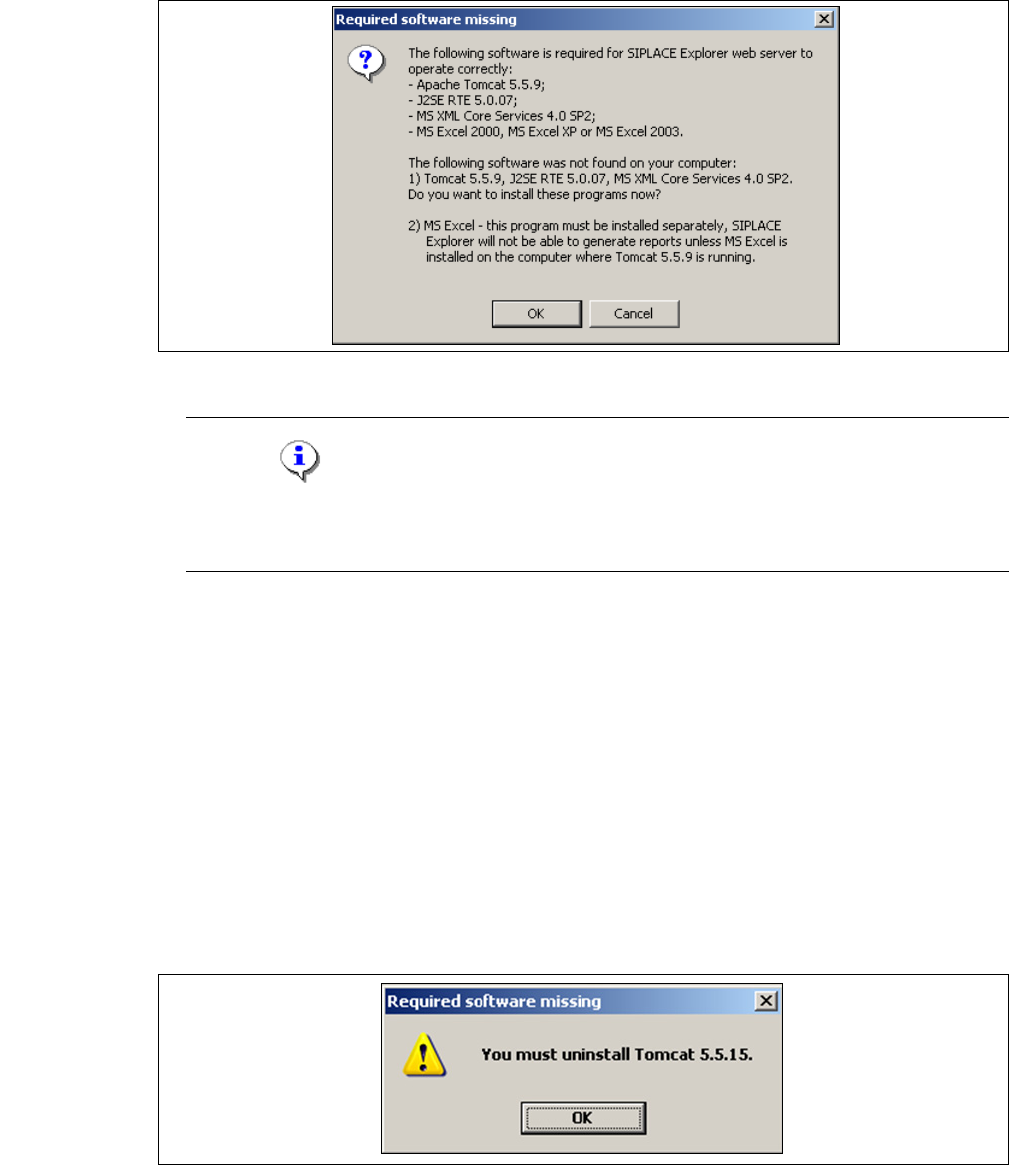

Fig. 3 - 23 Bundled Web Server - required software missing
NOTE
The message issued and the subsequent Bundled Web Server installation may vary,
depending on the software components available on your system. 3
→ The software components Tomcat 5.5.9, Java runtime environment (J2SE RTE 5.0.07) and MS
XML Core services 4.0 SP2 can be installed from the SIPLACE Explorer installation CD.
Confirm the message window with OK, to start installation of the specified software
components. The Bundled Web Server installation will automatically install these in the correct
order.
→ MS Excel must be bought and installed separately. This program is required for the generation
of reports.
→ Before installing Tomcat 5.5.9, make sure that all versions of Tomcat < 5.5.9 have been
uninstalled. Use the Apache Tomcat uninstallation programm via the Windows menu
Start → Programs → Apache Tomcat 5.5 → Uninstall Tomcat.
→ If a < 5.5.9 version of Tomcat exists on your system, the following message will appear:
3
Fig. 3 - 24 Bundled Web Server - required software missing
