4 Configuration Installation and Configuration Guide SIPLACE Explorer 4.1 Standard Monitoring Application (SMA) Edition 11/2006 EN 82 → The DB backup location dialog box will open. This will only open during conv ersion …

Installation and Configuration Guide SIPLACE Explorer 4 Configuration

Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)

“Database Connection Wizard” on page 111.

→ If the connection functions properly, you will see the following information box:

Fig. 4 - 11 Success

→ Click OK. The system will check the database data. If the database has data from SIPLACE

Explorer V2.0 or V1.2, you will need to convert the database for SIPLACE V2.1, due to the

changed data structure in the SIPLACE Explorer V2.1 database. In this case, the Convert

Database dialog box will open.

NOTE

Observe the following for database conversion:

- You will need database administrator rights.

- If you have started the conversion, this process can not be stopped.

- The conversion time depends on the size of the database. It may take up to an hour. 4

Fig. 4 - 12 Convert database

→ Specify the access data for the database administrator and confirm your entry with OK.

4 Configuration Installation and Configuration Guide SIPLACE Explorer

4.1 Standard Monitoring Application (SMA) Edition 11/2006 EN

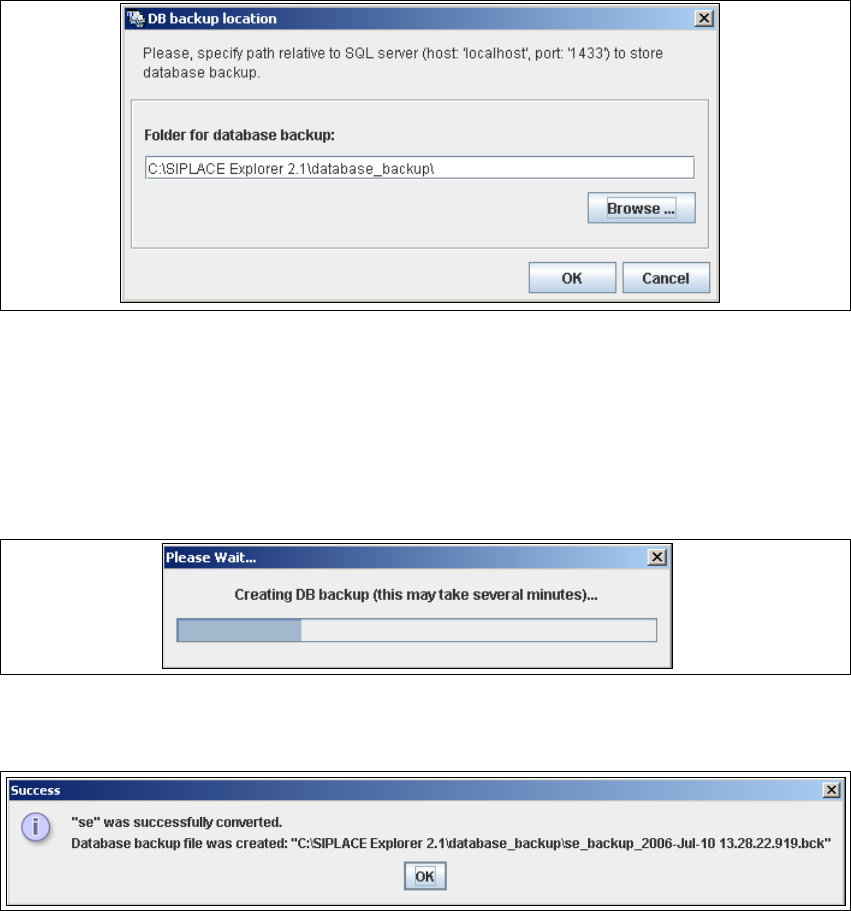

→ The DB backup location dialog box will open. This will only open during conversion of the

database from V2.0 to V2.1. When converting the database from V1.2 to V2.1, the database

backup will automatically be stored in the folder in which the V2.1 is stored.

Fig. 4 - 13 DB backup location

→ Before performing the conversion, the system creates a backup file of the database. Specify

the folder for this file in the Folder for database backup field. Click on the Browse ...

button to select an existing folder.

→ Confirm your choice with OK. The database will be converted. The conversion time

depends on the size of the database. It may take up to an hour.

Fig. 4 - 14 DB backup

→ After successful conversion of the database, the following information window will open:

Fig. 4 - 15 Success

→ Click OK. You can now continue with the line configuration process.

Installation and Configuration Guide SIPLACE Explorer 4 Configuration

Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)

→ After you have established the database connection and converted the database for SIPLACE

Explorer V2.1, you need to define the maintenance details for the system database, with the

Maintenance button.

→ The DB Maintenance dialog box will open. This is where you can either create a new

archiving schedule for the database or edit the default maintenance schedule.

By archiving the database the data will be removed from the database and stored in a file,

the size of the database can be controled by this. 4

All input fields will be disabled. To start or edit a DB maintenance schedule, you must have

administrator privileges for the database and the database connection must already be

established. 4

Fig. 4 - 16 DB maintenance

→ Click on the Edit button

→ to open the DB Administrator Login dialog box.

Fig. 4 - 17 DB administrator login

→ Enter the access data here and confirm your entries with OK.

→ The input fields in the DB Maintenance dialog box will be enabled. The following details

can be defined:

– The file and path for the archived data
