3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer 3.2 Update Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN 52 3 Fig. 3 - 41 SIPLACE Explorer setup - St art screen → Select SIPL…
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.2 Update Installation of SIPLACE Explorer 2.1
51
3.2 Update Installation of SIPLACE Explorer 2.1
To update from SIPLACE Explorer predecessor versions to SIPLACE Explorer V2.1, you must
already have an executable version of SIPLACE Explorer installed on your system.. 3
– Update from SIPLACE Explorer V1.2, V2.0 and V2.0 SP1 to SIPLACE Explorer V2.1:
Deinstall the predecessor version with its components proceed by following the instructions at
“Uninstallation” on page 117. For the installation proceed by following the instructions at “Initial
Installation of SIPLACE Explorer 2.1” on page 21. 3
NOTE
If you want to keep the line configuration and other settings, you have to install SIPLACE
Explorer 2.1 in the same folder as the predecessor version. See figure 3 - 17 SIPLACE
Explorer Setup - "choose folder" dialog box. 3
NOTE
Before installing Tomcat 5.5.9, make sure that all versions of Tomcat < 5.5 have been
uninstalled. Use the Apache Tomcat uninstallation programm via the Windows menu
Start → Programs → Apache Tomcat 5.5 → Uninstall Tomcat. 3
After performing the update, you can also install additional SIPLACE Explorer options: 3
– SIPLACE Explorer V.2.1 options:
The two options Backflush V1.0 an SIPLACE Traceability Option V1.0 are not included in
the SIPLACE Explorer V2.1 delivery package and must be ordered (installed) separately.3
3.2.1 Installation of SIPLACE Explorer 2.1 - Update Installation
NOTE
You must have Windows administrator privileges to perform installation. 3
→ Place the SIPLACE Explorer CD in your CD-ROM drive.
→ The Start screen will appear.
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.2 Update Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
52
3

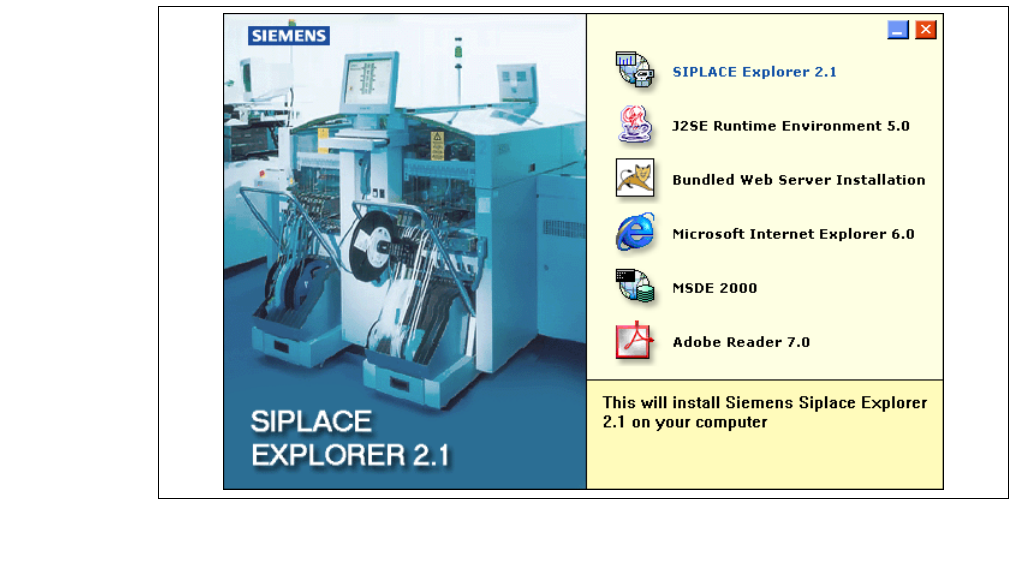

Fig. 3 - 41 SIPLACE Explorer setup - Start screen
→ Select SIPLACE Explorer 2.1.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.2 Update Installation of SIPLACE Explorer 2.1
53
→ You will be guided through the SIPLACE Explorer installation procedure.
3

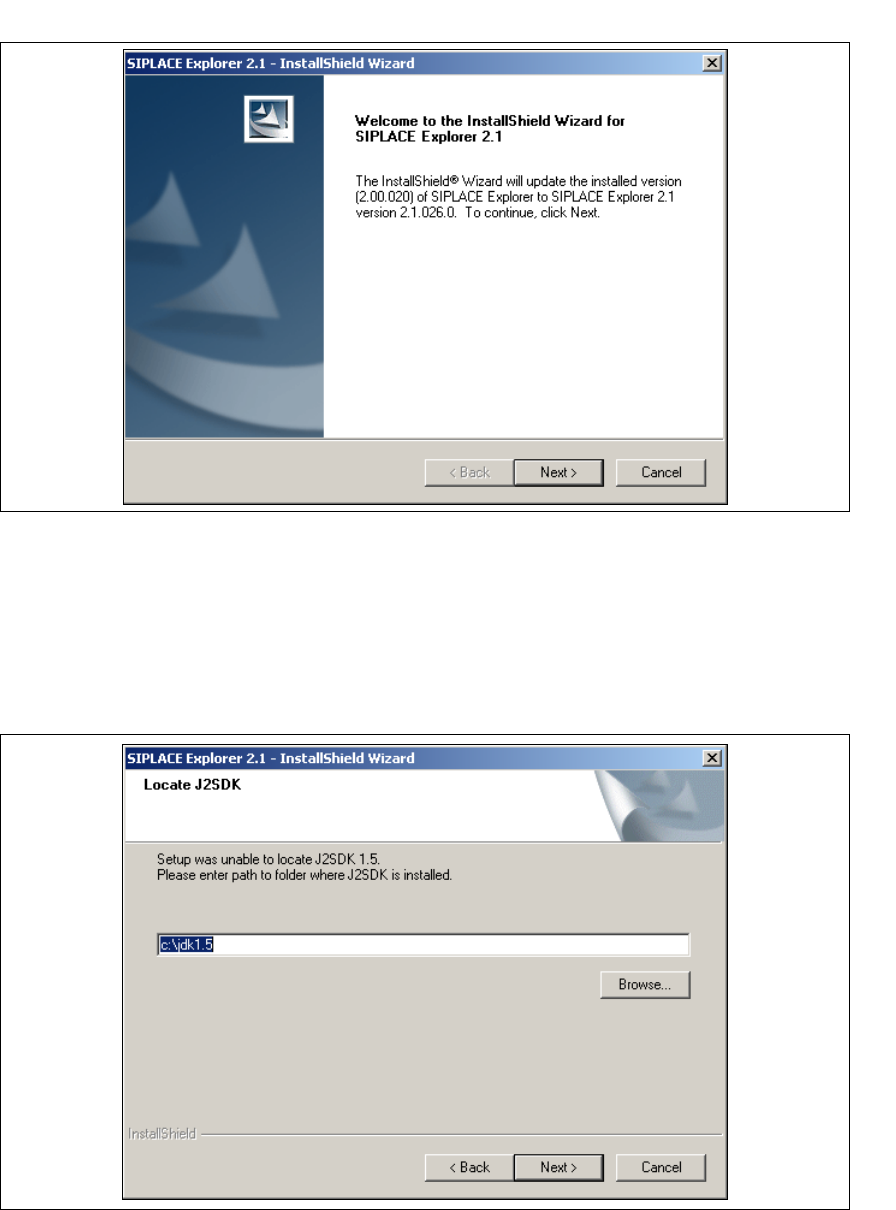

Fig. 3 - 42 SIPLACE Explorer welcome
→ Exit all other programs and then click on Next.
→ Before you can run SIPLACE Explorer, J2SE Runtime Environment 5.0. update 7 must be
installed on your PC. If it is already installed on your PC, installation will begin automatically.
→ However, if the installation procedure is unable to find J2SE RTE 5.0.07, the Locate J2SDK
dialog box will appear on your screen.
3
Fig. 3 - 43 SIPLACE Explorer setup - locate JAVA 2 SDK
